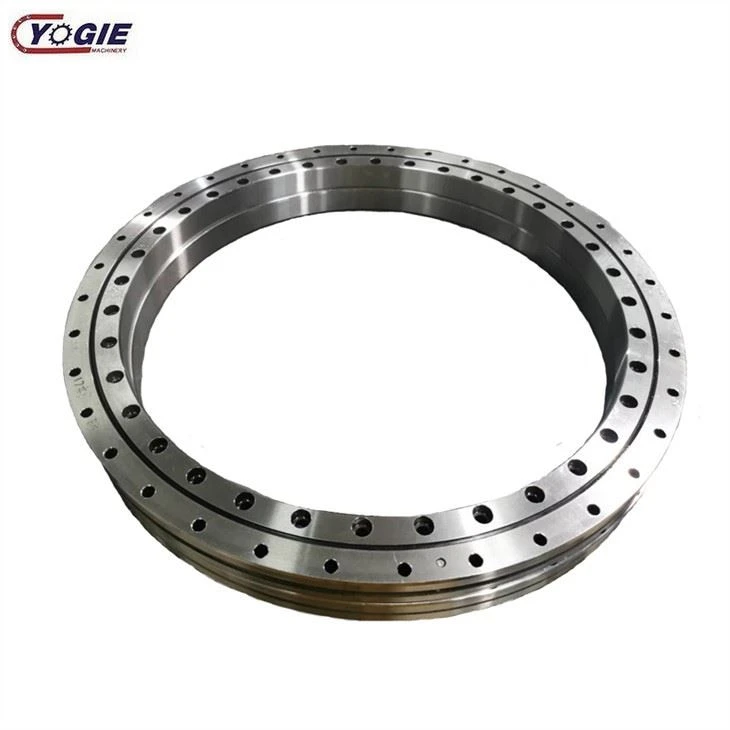

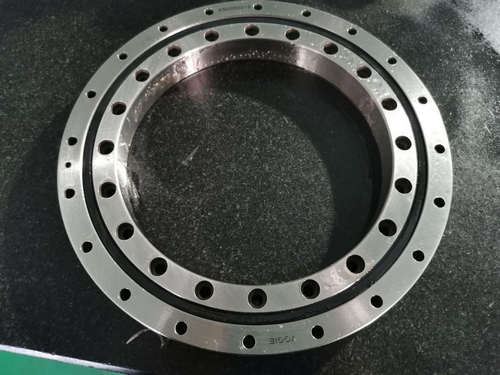

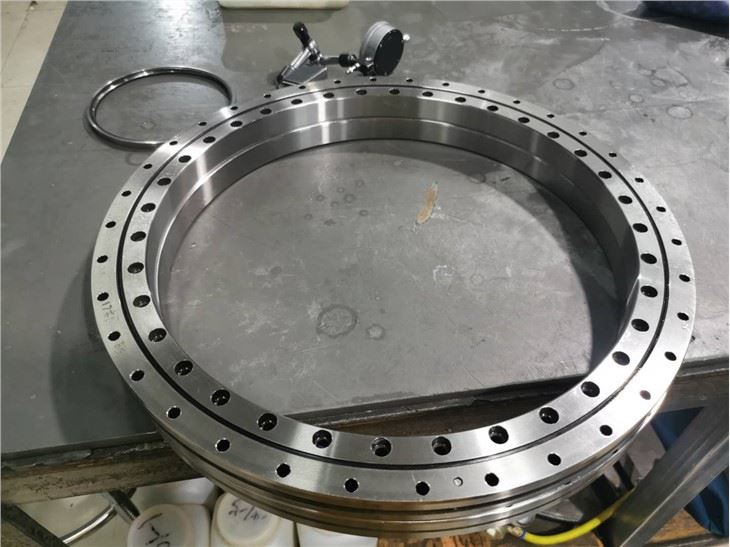

High Quality XSU080258 Crossed Roller Bearing For CNC Machine

High Quality XSU080258 Crossed Roller Bearing For CNC Machine
Since the mounting holes are provided,it does not require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque. XSU080258 Cross roller bearing can be used for both inner ring rotation and outer ring rotation.
Product Details:



High Quality XSU080258 Crossed Roller Bearing for CNC Machine


   Since the mounting holes are provided,it does not require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque. XSU080258 Cross roller bearing can be used for both inner ring rotation and outer ring rotation.




Product name

High Quality XSU080258 Crossed Roller Bearing for CNC Machine

Structure

Roller bearing

Identification number

XSU080258

Shaft diameter(mm)

220

Main dimension(mm)

Inner ring d (mm)

220


Outer ring D (mm)

295


Width B

25.4


nB

24


Chamfer r(min)

1.5


φLa

280


φLi

235

Basic load rating(axial)

Ca KN

84


Coa KN

375

Basic load rating(radial)

Cr (Kn)

54


Cor(Kn)

151

Limiting speed

148

Weight(kg)

5.1

Material

Outer ring and inner ring chrome steel

Cage material

Nylon,steel,brass

Precision rating

P5,P4,P2

Application

Joints and swiveling units of industrial robots,swiveling tables of machining centers,medical equipment,measuring instruments and IC manufacturing machines

Certifications

ISO9001:2000

Package

Plastic film, wooden box,single package or according to customer requirement

Place of Origin

Luoyang,Henan

MOQ

1pcs

Advantage

1.Low vibration,high precision

2.Stock or short time delivery

3.Reasonable price

4.OEM

5.good service

Payment terms

TT or Western Union

Port

Qingdao or Shanghai port


Installation Procedure:

1.Thoroughly clean the housing and other parts to be installed, and check to determine if deburring is required.

2.Since the Crossed Roller bearing is a thin-wall bearing type and therefore tends to misalign when it is installed, in case of this situation,gradually drive the product into the housing or onto the shaft by gently hitting it with a plastic hammer, while keeping the product horizontal. Taking care, continue to hammer until it fully contacts the reference surface.

3.Place the presser flange onto the Crossed Roller bearing . Rock the flange several times to match the bolt holes.

4.Insert the presser bolts into the holes. Manually turn the bolts and make sure they do not display skewing caused by misalignment of the holes.

5. Tighten the presser bolts in three to four steps from light to full tightening by repeatedly securing the bolts in diagonal order.When tightening the separable inner or outer ring, slightly turning the integral outer or inner ring will correct the dislocation between the ring and the body.

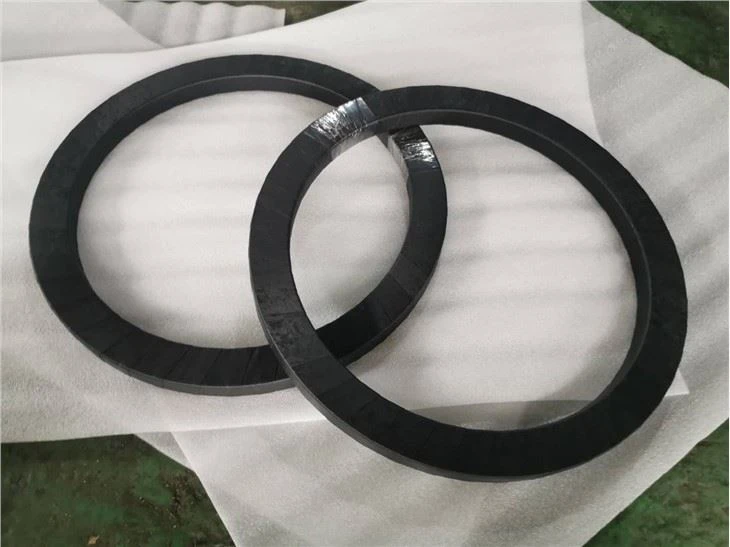

Packaging & Shipping

1. Industrial Neutral Packing

2. Package as your requirements.

3. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton

4.Large size Bearings:Plastic film+pergamyn paper+Roll tape+Wooden Box

5. Shipping:By air or By sea:DHL/TNT/UPS/EMS etc



Our Services

1.Your inquiry to our product & price will be replied within 24 hours.

2.Well-trained & experienced staff are to answer all your inquiries in English of course.

3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.

4.Your business relationship with us will be confidential to any third party.

5.Good after-sale service offered, please get back if you got question



Nowadays, as a professional precision bearing manufacture, we are proud of continual innovation, flexible production, speedy delivery, rapid after-sales service(2 years) and quick respose.
