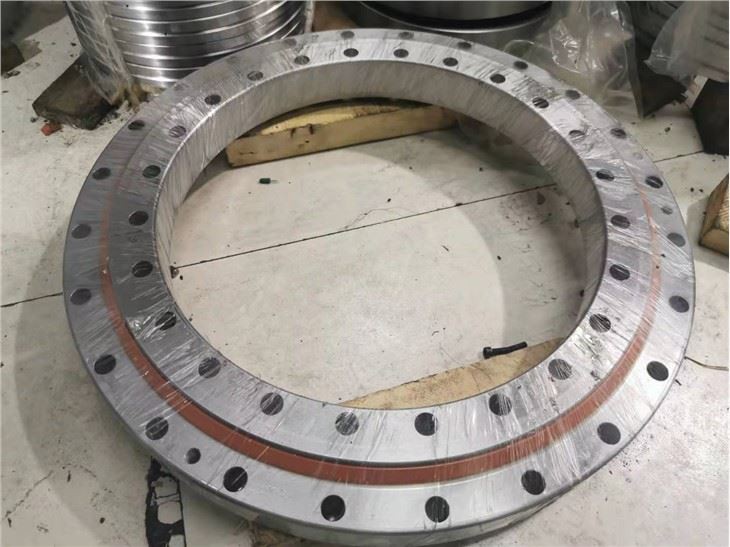

XU Series Cross Roller Bearing High Precision CNC Bearing YOGIE Machine Tool Bearing

Product description: The mounting holes of XU series are provided, this model does not require a presser flange or housing.In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring...
Product Details:

Product description:

The mounting holes of  XU series are provided, this model does not require a presser flange or housing.In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting  procedure, ensuring stable rotation accuracy and torque.XU series can be used for both inner-ring rotation and outer-ring rotation.

XU special type is a bearing with integrated inner and outer ring. It is being used in cases where high rotational accuracy of both the inner and outer rings is required.


Application:

•Industrial Robotic arm,Reducer drive

•precision Turntable,NC rotary table

•Rotation part of Machine tools

•Inspection instrument,Medical equipment

•Aviation equipment,Military radar etc.




Identifi -cation number

Main dimensions

Basic load rating (axial)

Basic load  rating(radial)

weight

inner ring
d
(mm)

outer ring
D
(mm)

Roller pitch circle diameter dp (mm)

width
B (mm)

φLa

na

φLi

ni

Ca
KN

C0a
KN

Cr
KN

Cor
KN

Kg

XU050077

40

112

77

22

97

6-φ6.6

56

6-M8

22.4

29

14.3

14.2

1.4

XU060094

57

140

94

26

120

6-φ9

70

6-M8

32.5

37.5

20.7

18.4

2.4

XU060111

76.2

145.79

111

15.87

133.1

8-φ6.9

88.9

8-φ6.9

36

44.5

22.8

21.5

1.2

XU080120

69

170

120

30

148

6-φ9

90

6-M8

56

53

35.5

26

4

XU080149

101.6

196.85

149.6

22.22

177.8

16-φ6.9

115.8

16-φ6.9

63

66

40

32.5

3.6

XU120179

124.5

234

179

35

214

12-φ11

144.5

12-φ11

118

179

75

88

7

XU120222

140

300

222

36

270

12-M16

170

12-φ18

133

275

85

131

12

XU160260

191

329

260

46

305

20-φ14

215

20-φ14

212

350

135

173

16

XU080264

215.9

311

264

25.4

295.3

12-φ8.7

231.8

12-φ8.7

85

117

54

57

6.9

XU160405

336

474

405

46

450

30-φ14

360

30-φ14

270

550

172

270

25

XU080430

380

480

430

26

462

20-φ9

398

20-M10

110

280

70

138

12

XU300515

384

646

515

86

598

18-φ26

432

18-φ26

720

1370

455

670

115
