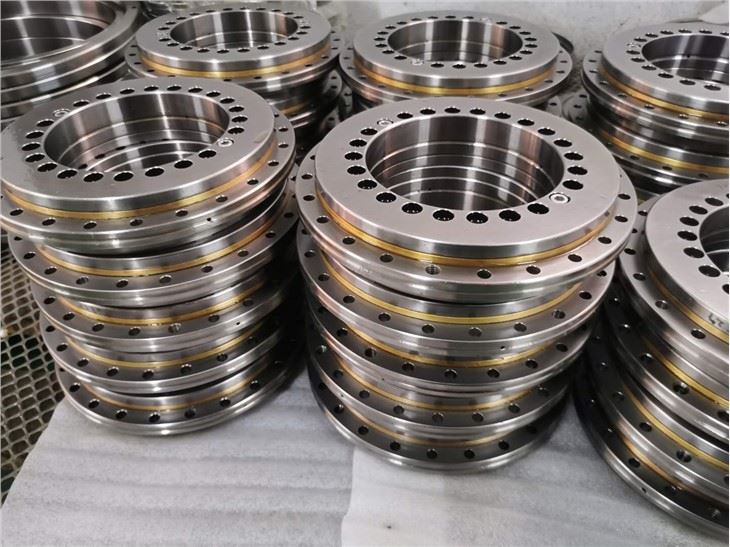

Hot Sale YRT Series Rotary Table Bearing Machine Tool Bearings YOGIE Precision Turntable Bearing from China

Prodcut description: YRT bearings (rotary table bearings) are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial p reload, For the convenience of transportation and...
Product Details:

Prodcut description:

YRT bearings (rotary table bearings) are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial p reload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy.


Application:

•Precision machine tools

•precision Turntable, CNC rotary table

•Rotation part of Machine tools

•Inspection instrument,Medical equipment

•Indexing plate of other precision machines etc




bearing   type



boundary   dimension



fixing   holes







number of retaining scews

d

D

H

H1

C

d1

dn

dm

inner ring

ds

Ts

quantity

outer ring





unit:mm

do

dl

quqntity



bearing type

boundary dimensions

fixing holes









d

D

H

H1

C

D1

J

J1

inner ring

outer ring



unit: mm

d1

d2

a

quantity

d3

quantity





mm



mm



YRT50

50

126

30

20

10

105

63

116

5.6

10

5.6

12

YRT80

80

146

35

23.35

12

130

92

138

5.6

10

4

10

4.6

12

YRT100

100

185

38

25

12

160

112

170

5.6

10

5.4

16

5.6

15

YRT120

120

210

40

26

12

184

135

195

7

11

6.2

22

7

21

YRT150

150

240

40

26

12

214

165

225

7

11

6.2

34

7

33

YRT180

180

280

43

29

15

244

194

260

7

11

6.2

46

7

45

YRT200

200

300

45

30

15

274

215

285

7

11

6.2

46

7

45

YRT260

260

385

55

36.5

18

345

280

365

9.3

15

8.2

34

9.3

33

YRT325

325

450

60

40

20

415

342

430

9.3

15

8.2

34

9.3

33

YRT395

395

525

65

42.5

20

486

415

505

9.3

15

8.2

46

9.3

45

YRT460

460

600

70

46

22

560

482

580

9.3

15

8.2

46

9.3

45

YRT580

580

750

90

60

30

700

610

720

11.4

18

11

46

11.4

42

YRT650

650

870

122

78

34

800

680

830

14

20

13

46

14

42

YRT850

850

1095

124

80.5

37

1018

890

1055

18

26

17

58

18

54

YRT950

950

1200

132

86

40

1130

990

1160

18

26

17

58

18

54

YRT1030

1030

1300

145

92.5

40

1215

1075

1255

18

26

17

60

18

66




Number
of
retaining
screws

Extraction
thread
hole

1)Number
of pitches
angle of
pitches

Screw
tightening
torque

Basic load rating

Limiting
speed

3)Bearing
frictional
torque

weight



bearing
type

axial

radial

dynamic
load

static
load

dynamic
load

static
load

MA2)

Ca

Coa

Cr

Cor

grease

G

quantity

×t
quantity

Nm

KN

r/min

Nm

Kg

2

12×30°

8.5

38

158

28.5

49.5

440

2.5

1.6

YRT50

2

12×30°

8.5

56

255

42.5

100

530

3

2.4

YRT80

2

M5

3

18×20°

8.5

76.5

415

47.5

120

430

3

4.1

YRT100

2

M8

3

24×15°

14

102

540

52

143

340

7

5.3

YRT120

2

M8

3

36×10°

14

112

630

56

170

320

10

6.2

YRT150

2

M8

3

48×7.5°

14

118

710

69.5

200

280

12

7.7

YRT180

2

M8

3

48×7.5°

14

120

765

81.5

220

260

14

9.7

YRT200

2

M12

3

36×10°

34

160

1060

93

290

200

20

18.3

YRT260

2

M12

3

36×10°

34

275

1930

120

345

170

40

25

YRT325

2

M12

3

48×7.5°

34

300

2280

186

655

140

55

33

YRT395

2

M12

3

48×7.5°

34

355

2800

200

765

120

70

45

YRT460

2

M12

6

48×7.5°

68

490

4250

228

965

80

140

89

YRT580

2

M12

6

48×7.5°

116

1040

8000

490

1800

65

200

170

YRT650

2

M16

6

60×6°

284

1000

8650

455

1730

50

300

253

YRT850

2

M16

6

60×6°

284

1290

11400

530

2040

40

600

312

YRT950

12

M16

6

72×5°

284

1380

12000

620

2650

35

800

375

YRT1030





Design & Installation

Structure with the requirements shown in Figure 1

Retaining screws secure the bearing components during transport. For installing the bearing easier, the screws should be loosened before fitting, and secured again or replaced by positioning screws after fitting.

The L-section ring can be fitted with unsupported or supported ring.

a)  Without supported ring, the bearing type is YRT.

b)  With supported ring, the bearing type is YRT… VSP。 And the whole surface of L-section should be supported.

Mounting forces must only be applied to the bearing ring to be fitted, never through the rolling elements.

Tighten the fixing screws in crosswise using a torque wrench (shown in figure 2).

Don’t separate or interchanged bearing components during fitting and dismantling.

Starting friction torque can be 3 to 3.5 times as high as the value of friction torque in the dimension tables.
