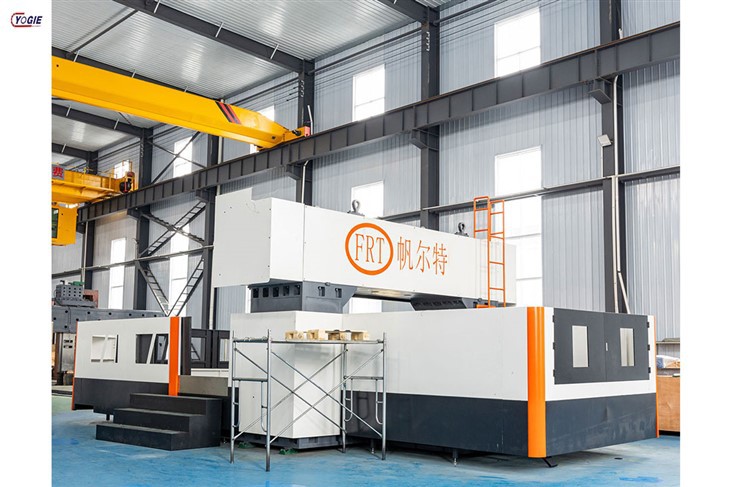

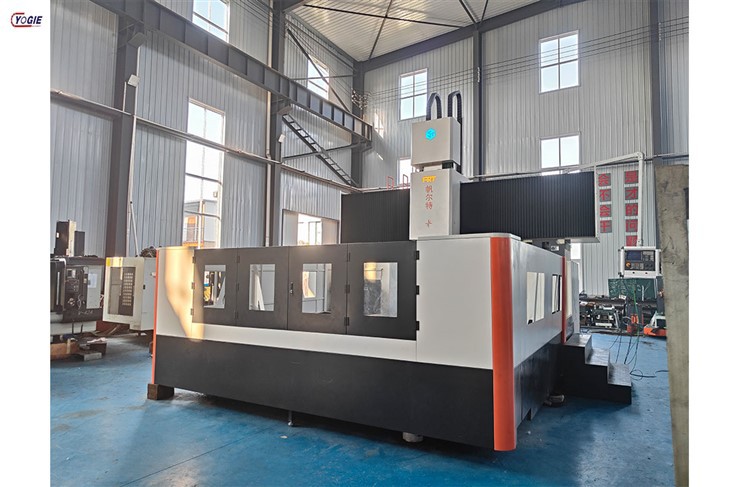

China Economical Hot Sale CNC Fixed Beam Gantry Borning and Milling Machine, Manufacturing Factory Supply High Precision 5 Axis with Cheap Price

CNC fixed beam gantry boring and milling machine is widely used in the aviation, auto, precision molding industries.
Product Details:

CNC fixed beam Gantry boring and milling machine

Features:

CNC fixed beam gantry boring and milling machine is top-sale with low price and high speed,which have some features as follows.

1.Optional external encoder realizes closed loop control

2 Screw supporting structure is designed for above more than 5 meters (including 5 meters) gantries.

3 All gear form main transmission is optional.

4.The optional Z axis rails, rail pretensioning structure .

5.Optional 90° milling head realizes five-face machining. Optional universal milling head realizes multi-angle machining

6.Optional German ZF gearbox widens machining range.

7.As standard each gantry machining center is equipped with two spiral chip cleaners and one chain chip cleaner.

8.Optional system:the controller can be selected from FANUC, Mitsubishi, Siemens, KND,GSK.


Application:

CNC fixed beam gantry boring and milling machine is widely used in the aviation, auto, precision molding industries. GMF series can provide a high-performance mechanical system and a software interface which can be operated easily. This provides multiple choices that will allow you to fully realize the high precision dream.


Technical parameter:

SP11 series two-lines rail CNC gantry machining center

model
Unit:mm

SP1115B

SP1120B

SP1125B

Table dimension(width*length)(mm)

900×1500

900×2000

900×2500

Travel for X axis(X,mm)

1500

2000

2500

Travel for Y axis(Y mm)

1100

Travel for Z axis(Z axis)

800

Spindle center to column

1150

spindle nose to  table

50-850

Worktable T-slot(number-size*space between)

7-22×125

Spindle specification(model/installation diameter)

BT50-155(can choose BT50-190 spindle 6000rpm)

Drive manner of spindle

Belt type

Max.speed:8000rpm
Max.speed of revolution:8000rpm

Ball screw type for X,Y,Z axis diameter

1115B X:5512;1120B X:6310; 1125B X:6316;Y:5010;  Z:5010

Guide rail specifications for Z axis

Rectangle slideway

Guide rail specifications for XY

Pin roller linear guideway 45 heavy load standard

Servo motor drive manner and ratio for XYZ

1115B、1120BX、Y、Z:direct connection;1125BX:belt-drive,Y、Z:direct connection

spindle motor,XYZ three phase servo motor recommendation

spindle motor:22Kw generalized motor ;
1115B、1120BX:30Nm,1125BX:40Nm;Y:24Nm:Z:24Nm(band-type brake)

Worktable bearing(T)

2

3

4

Weight about

10

11

13


SP11 series three lines CNC gantry machining center

model

Unit:mm

SP1115C

SP1120C

SP1125C

Table dimension(width*length)(mm)

900×1500

900×2000

900×2500

Travel for X axis(X,mm)

1500

2000

2500

Travel for Y axis(Y mm)

1100

Travel for Y axis

800

Spindle center to column

1150

spindle nose to  table

150-950

Worktable T-slot(number-size*space between)

7-22×125

Spindle specification(model/installation diameter)

BT40/Φ150

Drive manner of spindle

Direct connection type

Max.speed:12000rpm
Max.speed of revolution:8000rpm

Ball screw type for X,Y,Z axis diameter

1115C X:5512;1120C X:6312; 1125C X:6316;Y:5012;  Z:5012

Guide rail specifications for Z

Rectangle slideway

Guide rail specifications for XY

Pin roller linear guideway 45 heavy load standard

Servo motor drive manner and ratio for XYZ

1115C、1120C X、Y、Z:direct connection;1125BX:belt-drive,Y、Z:direct connection

spindle motor,XYZ three phase servo motor recommendation

spindle motor:22Kw generalized motor;
1115C、1120CX:30Nm,1125CX:40Nm;Y:24Nm:Z:24Nm(band-type brake)

Worktable bearing(T)

2

3

4

Machine weight(T)

10

11

13


12-series

model
unit:mm

SP1220B

SP1225B

Table dimension(width*length)

900×2000

900×2500

Travel for X axis

2000

2500

Travel for Y axis(Y mm)

1200

Travel for Z axis

800

Spindle center to column

1200

spindle nose to  table

120-920

Worktable T-slot(number-size*space between)

7-22×125


Worktable T-slot(number-size*space between)

7-22×125

Spindle standard (model/installation diameter)

BT50/Φ190

Drive manner of spindle

Belt drive

Max.speed:6000rpm

ZF deceleration plus belt drive

Max.:4000rpm,drive ratio:1:1  ;4:1

Ball screw type for X,Y,Z axis diameter

1220B X:6310; 1225B X:6316;Y:5010;  Z:5010

Guide rail standard for Z axis

rectangle slideway

Guide rail standard for XY

pin roller linear guideway 45 heavy load standard

Servo motor drive manner and ratio for XYZ

1220B:Direct connection for XYZ axes;1225B:belt-drive for Y,YZ:Direct connection

spindle motor,XYZ three phase servo motor recommendation

Spindle motor:22Kw(generalized electrical machine)generalized electrical machine;
     1220BX:30Nm,1220BX:40Nm;Y:24Nm:Z:24Nm(band-type brake)

worktable bearing(T)

2

3

machine weight(T)

11

13

Note:1)installing  ZF reducer and accelerator need clear indication

2)ordering lengthen cutter head, right-angle cutter head,universal milling head belongs to special parts need clear indication.



13-series

model
unit:mm

SP1320

SP1325

SP1330

SP1335

Table dimension(width*length)

1000×2000

1000×2500

1000×3000

1000×3500

Travel for X axis

2200

2700

3200

3700

Travel for Y axis

1400

Travel for Z axis

800

Spindle center to column

1400

spindle nose to  table

120~920

Worktable T-slot(number-size*space between)

7-22×150

Spindle standard (model/installation diameter)

BT50/Φ190

Drive manner of spindle

Direct connection

Max.speed:6000rpm

ZF deceleration plus direct connection

Max.speed:6000rpm

Belt drive

Max.:6000rpm(can choose belt-pulley drive-ratio:1:1  ;1:1.5)

Ball screw type for X,Y,Z axis diameter

X:6310;  Y:5010;  Z:5010

Guide rail standard for XZ

X:一"V"一smooth rail;Z:rectangle slideway

Guide rail standard for Y

pin roller linear guideway 45 heavy load standard

Servo motor drive manner and ratio for XYZ

belt-drive and drive ratio:X:2.5:1;Y:2:1;Z:2:1

spindle motor,XYZ three phase servo motor recommendation

spindle motor:22Kw(generalized electrical machine);
     X:40Nm(1302、1325),50Nm(1303、1335);Y:30Nm:Z:30Nm(band-type brake)

Shield stand length for X axis

630





950

worktable bearing(T)

3

4

5

7

machine weight(T)

14

16

18

20

Note:1.ordering gear type cutter head,ZF reducer plus direct connection cutter head,direct connection cutter head need clear indication

2)ordering lengthen cutter head, right-angle cutter head,universal milling head belongs to special parts need clear indication.

3)Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.


13-series

model
unit:mm

SP1320B

SP1325B

SP1330B

SP1335B

Table dimension(width*length)

1000×2000

1000×2500

1000×3000

1000×3500

Travel for X axis

2000

2500

3000

3500

Travel for Y axis

1400

Travel for Z axis

800

Spindle center to column

1400

spindle nose to  table

70~870 (Direct connection spindle 145~945)

Worktable T-slot(number-size*space between)

7-22×150

Spindle standard (model/installation diameter)

BT50/Φ190

Drive manner of spindle

Belt drive

Max.speed::6000rpm (can choose belt-pulley speed ratio:1:1,1:1.5)

Direct connection

Max.speed::6000rpm,Max electrical machine is 22KW.

ZF deceleration plus direct connection

the highest 6000rpm,drive ratio 1:1  ;4:1

Ball screw type for X,Y,Z axis diameter

X:6310(1320B);6316(1325B);8016(1330B、 SP1335B);  Y:5010;  Z:5010

Guide rail standard for XYZ

XY:pin roller linear guideway 45 heavy load standard;Z:rectangle slideway

Servo motor drive manner and ratio for XYZ

belt-drive and drive ratio for X-axis:2.5:1;YZ:Direct connection
     X-axis belt drive.drive ratio:2.5:1  direct connection for Y,Z

spindle motor,XYZ three phase servo motor recommendation

spindle motor:22Kw(generalized electrical machine);
     X:40Nm(1320B、1325B),50Nm(1330B、1335B);Y:30Nm:Z:30Nm(band-type brake)

worktable bearing(T)

3

4

5

7

machine weight(T)

14

16

18

20

note:1)ordering gear type cutter head,ZF reducer plus direct connection cutter head,direct connection cutter head need clear indication

2)ordering lengthen cutter head, right-angle cutter head,universal milling head belongs to special parts need clear indication.

3)Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.



15-series

model
unit:mm

SP1502

SP1502B

SP1503B

Table dimension(width*length)

1200×2000

1200×2000

1200×3000

Travel for X axis

2000

3000

Travel for Y axis

1650

Travel for Z axis

800

Spindle center to column

1650

spindle nose to  table

SP1502  stand configuration stand column:175~975
     The other stand configuration stand column:115~915

Worktable T-slot(number-size*space between)

7-22×170

Spindle standard (model/installation diameter)

BT50/Φ190

Drive manner of spindle

Gear head

Max.speed:3000rpm

Drive manner of spindle

Gear head

Max.speed:3000rpm

Direct connection

Max.speed:6000rpm

ZF deceleration plus direct connection

Max.:6000rpm,drive ratio:1:1  ;4:1

belt

Max.:6000rpm(can choose belt-pulley drive-ratio:1:1  ;1:1.5)

Ball screw type for X,Y,Z axis diameter

X:6310;  Y:5010;  Z:5010

Guide rail standard for XY

SP1502、SP1503   X:double“V”slide way;Z:rectangle slideway
     SP1502B、SP1503B   X:pin roller linear guideway 55 heavy load standard;Z:rectangle slideway

Servo motor drive manner and ratio for XYZ

belt-drive and drive ratio:X 2.5:1;Y 2:1;Z 2:1

spindle motor,XYZ three phase servo motor recommendation

spindle motor:22Kw(generalized electrical machine);X:40Nm;Y:30Nm:Z:30Nm(band-type brake)

Shield stand length for X axis



worktable bearing(T)

3

5

machine weight(T)

22

24

note:1.ordering gear type cutter head,ZF reducer plus direct connection cutter head,direct connection cutter head need clear indication

2、lengthen cutter head、right-angle cutter head,universal cutter head belongs to special parts,please give clear indications when ordering;

3.Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.。


15-series

model

unit:mm

SP1503

SP1504

SP1504B

Table dimension(width*length)

1200×3000

1200×4000

1200×4000

Travel for X axis

3000

4000

Travel for Y axis

1650

Travel for Z axis

800

Spindle center to column

1650

spindle nose to  table

175~975

175~975

115~915

Worktable T-slot(number-size*space between)

7-22×170

Spindle standard (model/installation diameter)

BT50/Φ190

Drive manner of spindle

Gear head

Max.speed:3000rpm

Belt drive

Max.speed:6000rpm(can choose belt-pulley speed ratio:1:1,1:1.5)

direct connection

Max.speed:6000rpm(install ZF reducer,reducer ratio 1:4;1:1)

Ball screw type for X,Y,Z axis diameter

X:6310;  Y:5010;  Z:5010

Guide rail standard for XZ

SP1504 X:double"V"slideway;Z:rectangle slideway
     SP1504B X:pin roller linear guideway 55 heavy load standard;Z :rectangle slideway



Guide rail standard for Y

pin roller linear guideway 55 heavy load standard

Servo motor drive manner and ratio for XYZ

belt-drive and drive ratio:X 2.5:1;Y 2:1;Z 2:1

spindle motor,XYZ three phase servo motor recommendation

spindle motor:22Kw(generalized electrical machine);
     X:40Nm(1503),50Nm(1504、1504B);Y:30Nm:Z:30Nm(band-type brake)

Shield stand length for X axis





worktable bearing(T)

4

6

machine weight(T)

23

27

note:1.ordering gear type cutter head,ZF reducer plus direct connection cutter head,direct connection cutter head need clear indication;

2、lengthen cutter head、right-angle cutter head,universal cutter head belongs to special parts,please give clear indications when ordering

3.Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.


18-series

model

Unit:mm

SP1820B

SP1825B

SP1830B

SP1835B

SP1840B

Table dimension(width*length)

1500×2000

1500×2500

1500×3000

1500×3500

1500×4000

Travel for X axis

2200

2700

3200

3700

4200

Travel for Y axis

2050

Travel for Z axis

1000(can choose 800)

Spindle center to column

2000

spindle nose to  table

250-1250

Worktable T-slot(number-size*space between)

9-22×160

Spindle standard (model/installation diameter)

BT50/Φ200

Drive manner of spindle

Belt drive

Max.speed:6000rpm

Direct connection

Max.speed:4000rpm

ZF deceleration plus direct connection

Max.:4000rpm,drive ratio:1:1  ;4:1

Ball screw type for X,Y,Z axis diameter

X:6310(SP1820B);6316(SP1825B);8016(SP1830B、 SP1835B、SP1840B);  Y:6310;  Z:5010

Guide rail standard for XYZ

XY:pin roller linear guideway 55 heavy load standard;Z:rectangle slideway

Servo motor drive manner and ratio for XYZ

XYZ: belt drive(if you use Direct connection,electrical machine is relevant enlarged)X drive ratio::2.5:1;YZ drive ratio:2:1

spindle motor,XYZ three phase servo motor recommendation

spindle motor:22Kw(generalized electrical machine);
     X:40Nm(1820B、1825B),50Nm(1830B、1835B、1840By);Y:40Nm:Z:40Nm(band-type brake)

Shield stand length for X axis(mm)











Worktable bearing(T)

4

5

6

7

9

Machine weight(T)

20

21

22

23

25

note:1.ordering gear type cutter head,ZF reducer plus direct connection cutter head,direct connection cutter head need clear indication

2、lengthen cutter head、right-angle cutter head,universal cutter head belongs to special parts,please give clear indications when ordering;

3.Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.。


22-series

model
unit:mm

SP2202B/C

SP2203B/C

SP2204B/C

SP2205B/C

SP2206B/C

Table dimension(width*length)

1800×2000

1800×3000

1800×4000

1800×5000

1800×6000

Travel for X axis

2200

3000

4000

5000

6000

Travel for Y axis

2200

Travel for Z axis

B:1000,C:1250

Spindle center to column

2200

Spindle nose to table

standard stand column for B:250~1250,C:250~1500(can choose entirety heighten stand-column250、300、350)

Worktable T-slot(number-size*space between)

9-22×180

Spindle standard (model/installation diameter)

BT50/Φ200 (belt-type)、BT50/&Φ200 (direct-type)

Drive manner of spindle

Gear head

Max.speed:3000rpm

belt-drive cutter head

Max.speed:6000rpm(can choose belt-pulley drive-ratio:1:1  ;1:1.5)

Direct connection

Max.speed:6000rpm(can add ZF reducer,reduction ratio:1:1; 4:1)

Ball screw type for X,Y,Z axis diameter

X:6310;  Y:6310;  Z:5010

X:8016;  Y:6310;  Z:5010

Guide rail standard for XYZ

heavy-load pin-roller wire rail for 55;Guide rail standard for Z:rectangle slideway

Servo motor drive manner and ratio for XYZ

belt drive for X:2.5:1; Y :2:1; Z:2:1

spindle motor,XYZ three phase servo motor recommendation

spindle motor:22Kw(generalized electrical machine);
     X:40Nm;(2204为50Nm2205、2206为75Nm);Y:30Nm: Z:30Nmband-type brake

Shield stand length for X axis(mm)











worktable bearing(T)

4

6

10

12

15

machine weight(T)

26

32

36

42

47

note:1.main spray column、gear-type cutter head、(belt-type)cutter head、ZF reducer cutter head,please give clear indications when ordering;

2.lengthen cutter head,right-angle cutter head,universal head,heighten stand column belongs to special parts,please give clear indications when ordering.

3.Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.。


25A-series

model

Unit:mm

SP2503A

SP2504A

SP2505A

SP2506A

Table dimension(width*length)

2000×3000

2000×4000

2000×5000

2000×6000

Travel for X axis

3000

4000

5000

6000

Travel for Y axis

2500

Travel for Z axis

1000

Spindle center to column

2500

Spindle nose to table

standard stand column:250~1250,(can choose entirety heighten stand-column300、350、400)

Worktable T-slot(number-size*space between)

9-22×200

Spindle standard (model/installation diameter)

BT50/Φ2000(belt-type)

Drive manner of spindle

Gear head

Max.speed:3000rpm

belt-drive cutter head

Max.speed::6000rpm(can choose belt-pulley drive-ratio:1:1  ;1:1.5)

Direct connection

Max.speed::6000rpm(can add ZF reducer,reduction ratio:1:1 ;   4:1)

Ball screw type for X,Y,Z axis diameter

X:8016;  Y:6316;  Z:5010

Guide rail standard for XYZ

X、Y:heavy-load pin-roller wire rail for 55,Z:rectangle slideway

Servo motor drive manner and ratio for XYZ

belt-drive and drive ratio:X 2.5:1;Y 2:1;Z 2:1

spindle motor,XYZ three phase servo motor recommendation

spindle motor:30Kw(generalized electrical machine);
     X: 40Nm(2503A),70 Nm(2504A),100 Nm (2505A),100Nm(2505B/2506B);                           Y:40Nm:Z:40Nm(band-type brake)

XYZ axes quick travel recommendation(mm/min)

X:8000(2503A)、8000(2504A)、5000(2505A);YZ:10,000mm/min

Shield stand length for X axis(mm)









worktable bearing(T)

8

12

15

18

machine weight(T)

35

38

42

46

note:1main spray column、(belt-type)cutter head、ZF reducer cutter head、gear-type cutter head,lengthen cutter head、right-angle cutter head,universal cutter head,heighten stand column belongs to special parts, please give clear indications when ordering;

3.Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.。


25B/C-series

model
Unit:mm

SP2503/C

SP2503B/C

SP2504B/C

SP2505B/C

SP2506B/C

Table dimension(width*length)

2300×3000

2300×3000

2300×4000

2300×5000

2300×6000

Travel for X axis

3000

3000

4000

5000

6000

Travel for Y axis

2700

Travel for Z axis

B:1000,C:1250

Spindle center to column

2700

Spindle nose to table

SP2503:280~1280; B standard stand column:260~1260,C:260~1510(can choose entirety heighten stand-column300、350、400)

Worktable T-slot(number-size*space between)

11-28×200

Spindle standard (model/installation diameter)

BT50/Φ190(belt-type)、BT50/Φ190(direct-type)

Drive manner of spindle

Gear head

Max.speed:3000rpm

belt-drive cutter head

Max.speed:6000rpm(can choose belt-pulley drive-ratio:1:1  ;1:1.5)

Direct connection

Max.speed:6000rpm(can add ZF reducer,reduction ratio:1:1 ;   4:1)

Ball screw type for X,Y,Z axis diameter

X:8016;  Y:6316;  Z:5010

Guide rail standard for XYZ

SP2503X,Y:heavy-load pin-roller wire rail for 55;the other X、Y:heavy-load pin-roller wire rail for 55,Z:rectangle slideway

Servo motor drive manner and ratio for XYZ

belt-drive and drive ratio:X 2.5:1;Y 2:1;Z 2:1

spindle motor,XYZ three phase servo motor recommendation

spindle motor:30Kw(generalized electrical machine);
     X:60Nm(2503),40Nm(2503B),70 Nm(2504B),100 Nm (2505B),100Nm(2505B/2506B);                           Y:40Nm:Z:40Nm(band-type brake)

XYZ axes quick travel recommendation(mm/min)

X:6000(2503)、8000(2503B)、8000(2504B)、5000(2505B);YZ:10,000mm/min

Shield stand length for X axis(mm)











worktable bearing(T)

10

8

12

15

18

machine weight(T)

42

42

46

51

62

note:1、main spray column、(belt-type)cutter head、ZF reducer cutter head、gear-type cutter head,please give clear indications when ordering;

2. lengthen cutter head,right-angle cutter head,universal head,heighten stand column belongs to special parts,please give clear indications when ordering

3.Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.。


27-series

model
unit:mm

SP2703B/C
(three-wire rail support for X-axis)

SP2704B/C
(three-wire rail support for X-axis)

SP2705B/C
(three-wire rail support for X-axis)

SP2706B/C
(three-wire rail support for X-axis)

Table dimension(width*length)

2300×300

2300×4000

2300×5000

2300×6000

Travel for X axis

4000

4000

5000

6200

Travel for Y axis

2700

Travel for Z axis

B:1000,C:1250

Spindle center to column

2700

Spindle nose to table

B standard stand column:260~1260,C:260~1510(can choose entirety heighten stand-column300、350、400)

Worktable T-slot(number-size*space between)

11-28×200

Spindle standard (model/installation diameter)

BT50/190

Drive manner of spindle

Gear head

Max.speed:3000rpm

Belt-type cutter head

Max.speed:6000rpm(can choose belt-pulley drive-ratio:1:1  ;1:1.5)

Direct connection

Max.speed:6000rpm(can add ZF reducer,reduction ratio:1:1; 4:1)

Ball screw type for X,Y,Z axis diameter

X:8020;  Y:6316;  Z:5010

guide rail standard for XY axes

X:three-pieces heavy-load pin-roller wire rail for 55,Y: two pieces-heavy-load pin-roller wire rail for 55

Guide rail standard for Z

rectangle slideway

Servo motor drive manner and ratio for XYZ

belt drive for Y 2:1; Z 2:1;X 2.5:1(2706B reducer Direct connection,4:1)

spindle motor,XYZ three phase servo motor recommendation

spindle motor:22Kw(generalized electrical machine);
     X:60Nm;Y:30Nm;Z:40Nm

XYZ axes quick travel recommendation(mm/min)

X:1000(2703B)、8000(2704B)、5000(2705B)、5000(2706B);YZ:10,000mm/min

Shield stand length for X axis(mm)









worktable bearing(T)

15

18

20

25

machine weight(T)

44

48

53

65

note:1.main spray column、five cutter head、gear-type cutter head、(belt-type)cutter head、ZF reducer cutter head,please give clear indications when ordering;

2.lengthen cutter head,right-angle cutter head,universal head,heighten stand column belongs to special parts,please give clear indications when ordering

3.Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.。


29-series

model
unit:mm

SP2903B/C (three-wire rail support for X-axis)

SP2904B/C
(three-wire rail support for X-axis)

SP2905B/C (three-wire rail support for X-axis)

SP2906B/C (three-wire rail support for X-axis)

Table dimension(width*length)

2500×3000

2500×4000

2500×5000

2500×6000

Travel for X axis

3000

4000

5000

6000

Travel for Y axis

2900

Travel for Z axis

B:1000,C:1250

Spindle center to column

2900

Spindle nose to table

B standard stand column:260~1260,C 260~1510(can choose entirety heighten stand-column 300、350、400)

Worktable T-slot(number-size*space between)

12-28×200

Spindle standard (model/installation diameter)

BT50/Φ190(belt-type)、BT50/Φ190(direct-type)

Drive manner of spindle

Gear head

Max.speed:3000rpm

Belt-drive

Max.speed:6000rpm(can choose belt-pulley drive-ratio:1:1  ;1:1.5)



Direct connection

Max.speed:6000rpm(can add ZF reducer,reduction ratio:1:1;  4:1)

Ball screw type for X,Y,Z axis diameter

X:8020;  Y:6316;  Z:5010

X:8020;  Y:6316;  Z:5010

Guide rail standard for XYZ

X: three -pieces 55 heavy-load pin-roller wire rail f,Y: two-pieces 55  heavy-load pin-roller wire rail,Z: rectangle hard-rail

Servo motor drive manner and ratio for XYZ

XYZ belt drive,X reduction ratio:2.5:1
     Y reduction ratio:2:1   Z reduction ratio:2:1

X reducer connection 4:1; belt drive for Y:2:1;
     Z :2:1

spindle motor,XYZ three phase servo motor recommendation

spindle motor:22Kw(generalized electrical machine);
     X:40Nm;Y:30Nm;Z:40Nm

spindle motor:22Kw(generalized electrical machine);
     X:60Nm;Y:30Nm;Z:40Nm

XYZ axes quick travel recommendation(mm/min)

X:8000(2704B)、5000(2705B);Y,Z:10,000mm/min

Shield stand length for X axis(mm)









worktable bearing(T)

16

18

20

25

machine weight(T)

46

50

55

67

note:1、main spray column、(belt-type)cutter head、ZF reducer cutter head、gear-type cutter head,please give clear indications when ordering;

2.lengthen cutter head,right-angle cutter head,universal head,heighten stand column belongs to special parts,please give clear indications when ordering

3.Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.。


32-series

model
unit:mm

SP3204B(four-wire rail support for X-axis)

SP3205B(four-wire rail support for X-axis)

Table dimension(width*length)

2500×4000

2500×5000

Travel for X axis

4000

5000

Travel for Y axis

3800(effective travel 3200)

Travel for Z axis

1250

Spindle center to column

3200

Spindle nose to table

350~1600(can choose entirety heighten stand-column500mm,now is 850~2100)

Worktable T-slot(number-size*space between)

Center:9-28×200,two sides:2-28×160

Spindle center to column

3200

Spindle nose to table

standard stand column:360~1610(can choose entirety heighten stand-column300、400、5000)

standard stand column:300~1550(can choose entirety heighten stand-column300、400、500)

Worktable T-slot(number-size*space between)

Middle :9-28×200,two sides:2-28×160

Spindle standard (model/installation diameter)

BT50/Φ200(belt-type)、BT50/Φ200(direct-type)

Drive manner of spindle

Gear head

Max.speed:3000rpm

belt-drive cutter head

Max.speed:6000rpm(can choose belt-pulley drive-ratio:1:1  ;1:1.5)

Direct connection

Max.speed:3000rpm(can add ZF reducer,reduction ratio:1:1;  4:1)

Ball screw type for X,Y,Z axis diameter

X:10020;  Y:8020;  Z:6316

X:10020(nut structure);  Y:8020;  Z:6316

guide rail standard for XY axes

X:four-pieces 55  pin roller wire rail ,Y:heavy-load pin-roller wire rail for 55

Guide rail standard for Z

rectangle slideway

Servo motor drive manner and ratio for XYZ

XY:reducer direct connection,X drive ratio:7.5:1,Y drive ratio:4:1;Z belt-drive and drive ratio 2:1

spindle motor,XYZ three phase servo motor recommendation

spindle motor:30Kw(generalized electrical machine);
     X:60Nm;Y:40Nm;Z:40Nm(band-type brake)

spindle motor:30Kw(generalized electrical machine);
     X:75Nm;Y:40Nm;Z:40Nm(band-type brake)

XYZ axes quick travel recommendation(mm/min)

X:5000(3206B)、8000(3208B);  Y:8000;     Z:8000

Shield stand length for X axis(mm)





worktable bearing(T)

25

30

machine weight(T)

76

92

note:1、main spray column、gear-type cutter head、(belt-type)cutter head、ZF reducer cutter head,please give clear indications when ordering;

2.lengthen cutter head,right-angle cutter head,universal head,heighten stand column belongs to special parts,please give clear indications when ordering

3.Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.。


42-series

model
unit:mm

SP4204B

SP4205B

SP4206B

Table dimension(width*length)

3200×4000

3200×5000

3200×6000

Travel for X axis

4200

5200

6200

Travel for Y axis

4200

Travel for Z axis

1500

Spindle center to column

4200

Spindle nose to table

350~1850

Worktable T-slot(number-size*space between)

15-28×200

Spindle standard (model/installation diameter)

BT50/230( short nose end direct connection)

Drive manner of spindle

Direct connection,Max.speed:3000rpm

drive manner of X axis

nut rotation lead screw drive,R10020

drive manner of YZ axes

ball screw

ball screw standard for XY axes

Y:R8020;  Z:R6316

guide rail standard for XY axes

X: four- pieces heavy-load pin-roller wire rail for 55,Y:heavy-load pin-roller wire rail for 55

Guide rail standard for Z

rectangle slideway

spindle motor,XYZ three phase servo motor recommendation

spindle motor:37~50Kw motor;
     X: 4204B 100Nm; 4205B、4206B  120Nm; Y:40Nm;Z:40Nm

XYZ axes quick travel recommendation(mm/min)

X:12,000(4204B)、10,000(4205B、4206B)  YZ:10,000mm/min

worktable bearing(T)

30

35

40

machine weight(T)

90

95

100

note:1.center spray column,lengthen cutter head,right-angle cutter head,lengthen right-angle cutter head,universal cutter head belongs to special parts,please give clear indications

2.regarding distance from main end face to table need give clear indication when ordering.

3.Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.。


42-series

model
unit:mm

SP4208B

SP4210B

SP4212B

Table dimension(width*length)

3200×8200

3200×10000

3200×12000

Travel for X axis

8200

10000

12000

Travel for Y axis

4200

Travel for Z axis

1500

Spindle center to column

4200

Spindle nose to table

300~1800

Worktable T-slot(number-size*space between)

15-28×200

Drive manner of spindle

Direct connection,Max.speed:3000rpm

ZF direct connection,Max.speed:3000rpm

Gear head,Max.speed:3000rpm

drive manner of X axis

gear rack drive

drive manner of YZ axes

ball screw

ball screw for YZ axes

Y:8020;  Z:6316

guide rail standard for XY axes

X: four -pieces 55 heavy-load pin-roller wire rail ,Y: 65 heavy-load pin-roller wire rail

Guide rail standard for Z

rectangle slideway

spindle motor,XYZ three phase servo motor recommendation

spindle motor:37~50Kw;
     X: 4208B 100Nm; 4210B  120Nm;4212B 160Nm;Y:40Nm;Z:40Nm

XYZ axes quick travel recommendation(mm/min)

X:8000(4208B)、7000(4210B)、6000(4212B);YZ:8000mm/min

worktable bearing(T)

40

45

50

machine weight(T)

110

125

150

note:1.center spray column,lengthen cutter head,right-angle cutter head,lengthen right-angle cutter head,universal cutter head belongs to special parts,please give clear indications

2.regarding distance from main end face to table need give clear indication when ordering.

3.Our company have need of technical research and keep the right to amend technical parameter,no further notice for changing.。

Related Products
Feedback:
