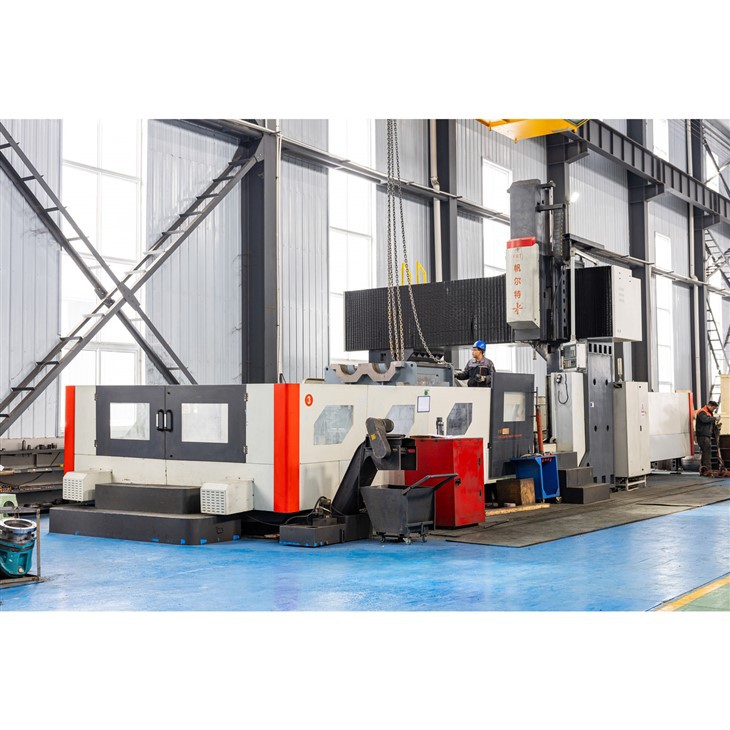

Fixed Beam CNC Gantry Milling Machine

CNC gantry milling and boring machining center Main introduction CHINA YOGIE specializes in manufacturing CNC gantry milling and boring machining center with cheap price, standard and non-standard we can manufacture, customer just tell our your requirement, our engineer can design the special...
Product Details:

fixed beam CNC gantry milling and boring machining processing center


Main introduction

CHINAYOGIE specializes in manufacturing CNC gantry milling and boring machining center with cheap price, standard and non-standard we can manufacture, customer just tell our your requirement, our engineer can design the special CNC Gantry milling machine for you, the fixed-beam CNC Gantry milling machining center type 1610,2017,2012,3017,3022,4032,4025,5027,6032 which is our regular products, also moving -beam CNC Gantry milling machining center and CNC Gantry milling machining center with five-axis linkage bridge form can be produced by our factory.


Main apply

1.to process complex non-standard high precision work piece, which are almost impossible to process or to ensure producing quality by common lathe machine tool

2.to process multi-procedure work piece, like turning boring drilling and tapping combining

3.to process housing or box shape parts, which are difficult to measure, control feed or box shape


Performance features

sufficient rigidity, high efficiency, easy operation, simple structure, overall performance capacity

1.TX400heavy-duty gantry milling head at vertical milling head, double rectangular guide, strong rigidity

2.Ball screw and air-operated broach for milling head, servo motor drive

3.V5-modelgantry milling head for milling side head, independent lubricating device, common reducer transmitting lifter, frequency control speeder

4.One-key transforming for cnc X,Y and Z axis, programmable and manual operation, high mechanical realizability

5.Taiwan ball screw for milling body forward and back, beam up and down, vertical milling head up and down, servo motor drive

6.Synchronous belt and wheel equipped

7.Hand type electronic wheel unit, convenient for tool setting

8.Unique beam lifting safety interlocking device, ensuring milling machine repeatability precision

9.Taiwan standard swing pump set continuous lubrication, lower accident rate


Technical specifications

Items

Unit

FBC2017

FBC3022

FBC4025

FBC6032

FBC6035

Max beam width of work piece

mm

1700

2200

2500

3200

3500

Work table size

mm

2000×1300

3000×1800

4000×2000

6000×2500

6000×3000

Work table T groove/qty

Mm/pic

22*5

22*9

22*9

28*11

28*11

Work table X axis travel ( forward and back)

mm

2100

3100

4100

6200

6200

Work table Y axis travel (left and right)

mm

1800

2650

2700

3400

3700

Main Z axis travel ( up and down)

mm

850

1000

1000

1200

1200

Max table load

kg

3000

10000

15000

30000

35000

Spindle power/30min

kw

18/22

22(26)


Spindle diameter

mm

φ155

φ190

φ190

φ200

φ190

Spindle speed

Rmp

6000

6000

6000/4000

6000/1500

5000/1500

Taper bore of spindle

ISO/BT

ISO. NO 50/BT50

ISO. NO 50/BT50

ISO. NO 50/BT50

ISO. NO 50/BT50

ISO. NO 50/BT50

Spindle connect type


Belt

Belt

Belt

BF/ZF

(1:1,1:5)

BF/ZF

(1:1,1:4)

Spindle cooling type


Oil cooler

Tool pull stud


Ms03A

X axis screw diameter/screw pitch/precision

mm

Φ63/10,

0.008/300

Φ80/10,

0.008/300

Φ80/20,

0.008/300

Φ100/10,

0.008/300

Φ100/10,

0.008/300

Y axis screw diameter/screw pitch/precision

mm

Φ50/10,

0.008/300

Φ63/10,

0.008/300

Φ63/10,

0.008/300

Φ80/10,

0.008/300

Φ80/10,

0.008/300

Y axis screw diameter/screw pitch/precision

mm

Φ50/10,

0.008/300

Φ63/10,

0.008/300

Φ63/10,

0.008/300

Φ63/10,

0.008/300

Φ63/10,

0.008/300


Guide way X

(RGW55CC)


Roller guide (55)

Roller guide (55)

Roller guide (65)

Roller guide (65)

Roller guide (65)

Guide way Y

(RGW55CC)


Roller guide (55)

Roller guide (55)

Roller guide (55)

Roller guide (55)

Roller guide (65)

Guide way Z


Rectangular slide guide

T slide guide

T slide guide

T slide guide

Square/T slide guide

Max tool radius

mm

Φ160

Φ200

Φ200

Φ250

Φ250

Max tool weight

kg

15

20

25

25

25

X liner position precision

mm

0.020/3000

0.022/3000

0.025/4000

0.045/6000

0.045/6000

Y liner position precision

mm

0.015/1800

0.018/2400

0.02/2700

0.025/3700

0.020/3700

Z liner position precision

mm

0.01/850

0.012/1000

0.012/1000

0.012/1200

0.015/2000

X repeatability precision

mm

± 0.008

0.015

0.015

± 0.01

± 0.02

Y repeatability precision

mm

± 0.005

0.012

0.01

± 0.008

± 0.01

Z repeatability precision

mm

± 0.005

0.01

0.01

± 0.006

± 0.01

Spindle inner hole beat

mm

≤ 0.005

Spindle mandril 300mm end beat

mm

0.01

System type


0i MF

SIEMENS 828D, 840Dsl/FANUC 0i MF

Total power capacity

Kw

35

40

45

60

65

Air pressure

Kgf/

cm2

6

New weight

kg

22000

35000

42000

78000

80000
