Professionally Manufacture CNC Heavy-duty Horizontal Type Lathe Machine from China

CNC Horizontal Lathe Product features: 1.The whole machine body, body with large width side wall of double rib plate, inner strength plate adopts box type and diagonal reinforcement combination structure,the overall rigidity increased 1/3 than single wall struction. 2.Spindle with high precision...
Product Details:

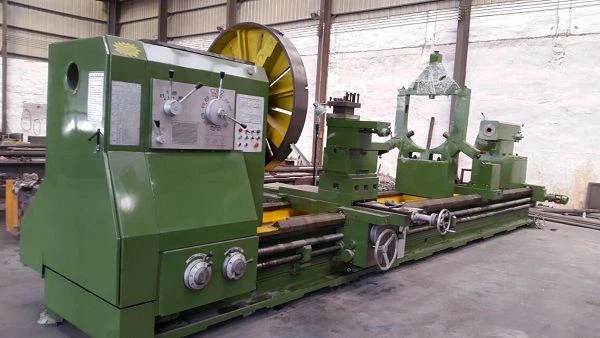

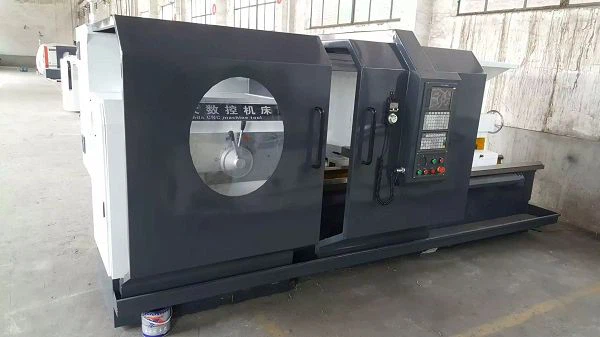

CNC Horizontal Lathe

Product features:

1.The whole machine body, body with large width side wall of double rib plate, inner strength plate adopts box type and diagonal reinforcement combination structure,the overall rigidity increased 1/3 than single wall struction.

2.Spindle with high precision bearings which mainly used for spindle, three support structure, strong rigidity, precision stability, bear large capacity and can make strong cutting.

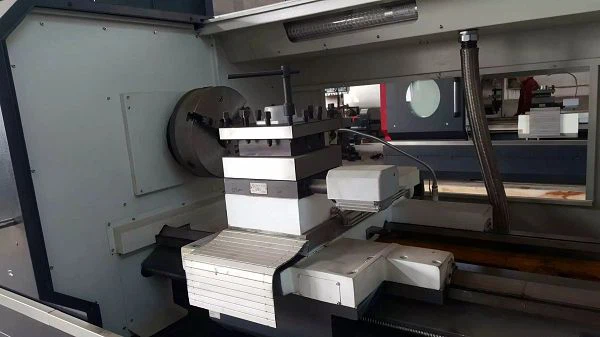

3.Knife rack automatic, machine body guide rail small, surface using TSF wear-resistant layer structure, light and flexible movement, with long life.

4.The tailstock provided with a dial and the use of straight lines.

5.Customized 6 meters, 8 meters, 10 meters, 12 meters, 15 meters according to customer requirements


Application:

Horizontal lathe series is mainly used for cutting inner and outer surface of cylindrical,taper and other rotating parts, can process all kinds of metric and inch, module and pitch thread, and the oil groove and key groove.


Techanical data:

CW Series heavy duty Horizontal lathe

unit

CW61100B

CW61125B

Max turning diameter of workpiece on the lathe bed

mm

1000

1250

Max workpiece length

mm

1500/3000/5000-15000

1500/3000/5000-15000

Max turning diameter of workpiece on the cutter frame

mm

610

850

Diameter of Spindle bore

mm

130

130

Taper of Spindle bore

Metric 140

Metric 140

Number of Spindle speed forward

Number

21

21

Number of Spindle speed backward

Number

12

12

Range of Spindle speed

Forwards

r/min

3.15-315

3.15-315

Backwards

r/min

3.5-278

3.5-278

Range feeds of cutter frame when spindle turning

Number

56

56

Vertial

mm

0.1-12

0.1-12

Horizontal

mm

0.05-6

0.05-6

Up cutter frame

mm

0.025-3

0.025-3


CW Series heavy duty Horizontal lathe

Unit

CW61100B

CW61125B

Range of Metic thread pitch

44 Species 1-120

44 Species 1-120

Inch thread range

31Spiece24-1/4t.p.i

31Spiece24-1/4t.p.i

Module thread range

mm

4Spiece50.5-60

45Spiece0.5-60

Pitch thread range

381Spiece/2-56DP

3Spiece81/2-56DP

Maximum travel of saddle

mm

Max workpiece length reduce 50

Max workpiece length reduce 50

Max Horizontal travel of Down cutter frame

mm

520

520

Max travel of middle cutter frame

mm

Down travel of up cutter frame

mm

300

300

Speed for Fast moving of Cutter frame Vertical

mm/min

3740

3740

Speed for Fast moving of Cutter frame Horizontal

mm/min

1870

1870

Middle cutter frame

mm/min

935

935

Dimater of tailstock sleeve

mm

160

160

Max travel of tailstock sleeve

mm

300

300

Degree of tailstock sleeve taper

Morse No. 6

Morse No. 6


CW Series heavy duty Horizontal lathe

Unit

CW61100B

CW61125B

Main motor power

kw

22

22

Dimension and Weight(kg)

LengthxWidthxHeight
And Weight(kg)

LengthxWidthxHeight
And Weight(kg)

1500

mm

4600x2150x1700(9200kg)

4600x2150x1825(10200kg)

3000

mm

6100x2150x1700(10700kg)

6100x2150x1825(11900kg)

5000

mm

8100x2150x1700(13000kg)

8100x2150x1825(14500kg)

6000

mm

9100x2150x1700(13700kg)

9100x2150x1825(15400kg)

8000

mm

11100x2150x1700(15700kg)

11100x2150x1825(17900kg)

11000

mm

14100x2150x1700(18900kg)

14100x2150x1825((20400kg)

12000

mm

15100x2150x1700(19700kg)

15100x2150x1825(21200kg)

14000

mm

17100x2150x1700(21300kg

17100x2150x1825(22800kg)

15000

mm

18100x2150x1825(22100kg)

18100x2150x1825(23600kg)

Width of machine body guide rail

mm

755

755

Max capacity

kg

8000

8000
