3M CNC Horizontal MTE CW61160

The CNC Horizontal Lathe series are mainly used to turn inner and outer cylindrical surface, conical surface and other rotating parts, to machine kinds of metric thread, inch thread, modulus thread and pitch thread, and to broach oil gallery and key slot. This series of lathe machine have the following characteristics: 1. Machine body side wall takes double reinforcement plate, inner box shapes as box composite structure, higher than conventional lathe, stable precision, high-rate cutting 2. Slide carriage equipped with fast-moving structure, single handle operated vividly 3. Saddle guide rail use TSF soft wear resistant material 4. Small automatic-feed carriage, upper carriage solely turn conical surface , also match upper carriage and vertical auto feed to turn long conical surface.
Product Details:

3m CNC Horizontal MTE CW61160

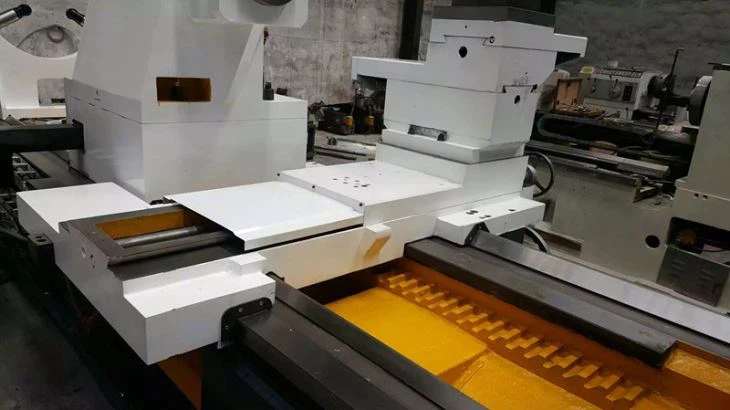

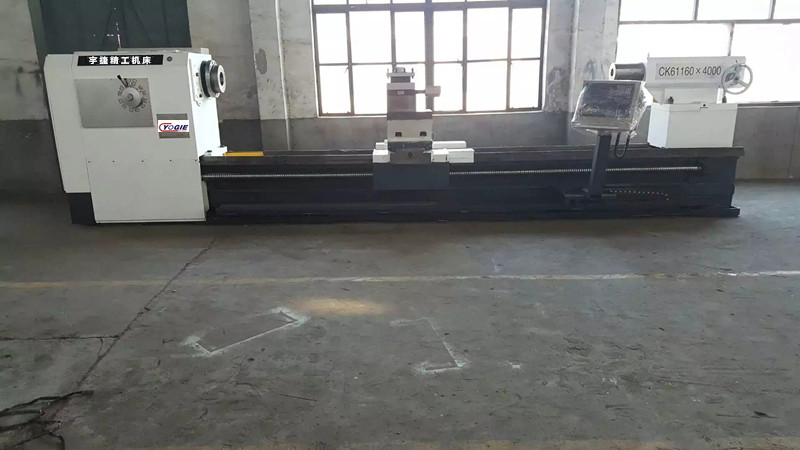

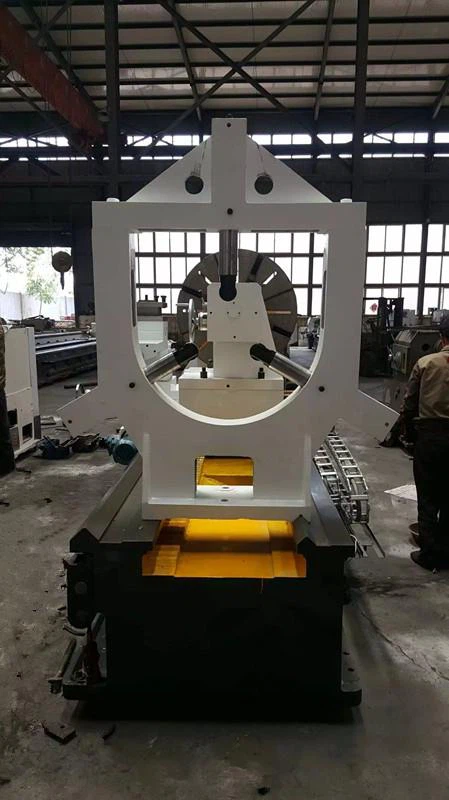

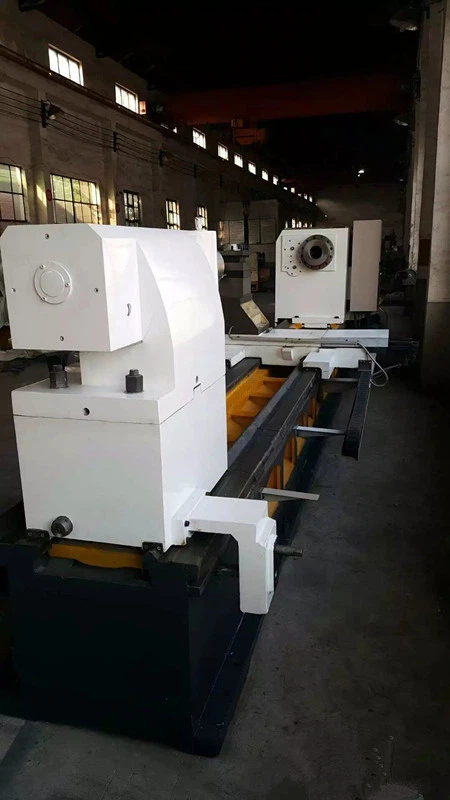

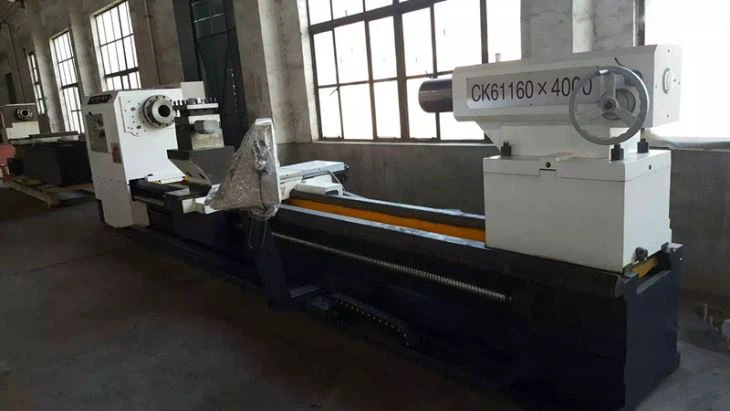

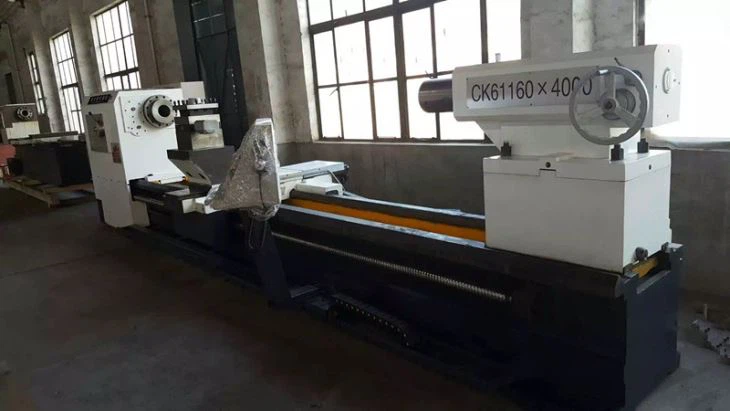

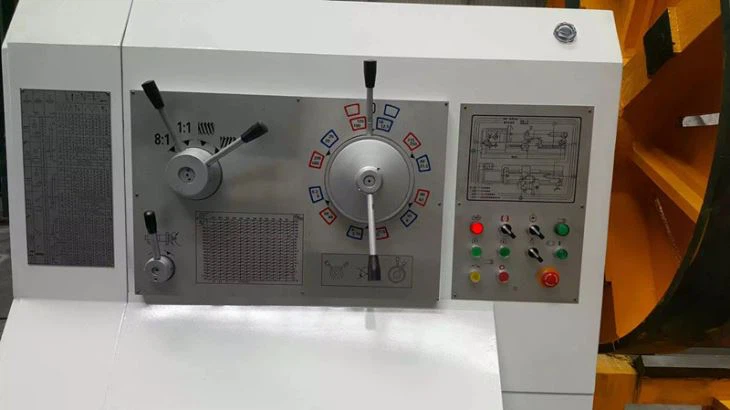

Finished assembling CNC MTE CW61160 displaying:



Technical specifications for 3m CNC Horizontal MTE CW61160:

The CW61160 differs from other series equipment, mainly in following aspectives:Max swing diameter over bed (1600mm),Max length of work piece (3000/5000/6000-15000mm),Max swing diameter over carriage (1200mm),Spindle bore diameter (130mm),Front taper bore of spindle (Metric 140mm),Spindle speed kind (foreward ) (21kinds) , andSpindle speed kind (reversal )(12 kinds).

Overall dimensios of 3m CNC Horizontal MTE CW61160:

The CW61160 machine tool equipment derives to serious model, hence featuring with different overall figures:

CW61160-1.5m-95500kg

CW61160-3m-21500kg

CW61160-5m-23600kg

CW61160-8m-27000kg

CW6116010m-29400kg

CW6116012m-32700kg

and

CW61160-15m-36300kg
