YRT 460 Rotary Table Bearing For Machining Center Axial Turntable
The YRT460 turntable bearing consists of a thrust/centre seat, a thrust/centre shaft ring, a thrust washer, two needle roller cage assemblies and a set of centripetal cylindrical rollers. The seat ring and shaft ring have uniform mounting screw holes. This type of bearing has high axial and radial load carrying capacity. High tilt stiffness and extremely high accuracy. Suitable for rotary table, chucks and iron heads as well as bearing arrangements for measurement and experimentation

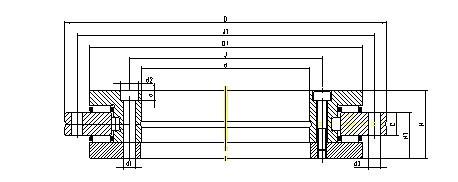

boundary dimensions | Basic load rating(KN) | Limiting speed(grease) | Weight Kg | ||||||||||||
axial load | radial load | ||||||||||||||
d | D | H | H1 | C | D1 | J | J1 | dynamic | static | dynamic | static | ||||
unit:mm | Ca | Coa | Cr | Cor | r/min | ||||||||||
YRT460 | 460 | 600 | 70 | 46 | 22 | 560 | 482 | 580 | 355 | 2800 | 200 | 765 | 120 | 45 | |

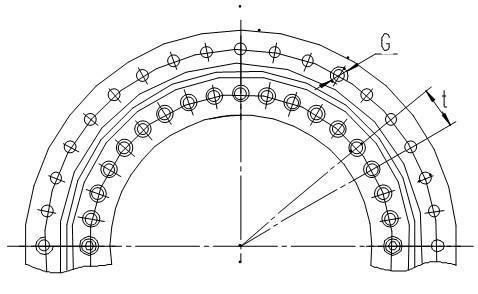

Fixing holes | Pitches | Tightening torque | Frictional torque | Rotation accuracy | ||||||||
Holes of inner ring | Holes of outer ring | |||||||||||
Fixing holes | Fixing holes | Extraction thread hole | ||||||||||
d1 | d2 | a | quantity | d3 | quantity | G | quantity | Quantity×t | Nm | Nm | μm | |
mm | mm | |||||||||||
YRT460 | 9.3 | 15 | 8.2 | 48 | 9.3 | 45 | M12 | 3 | 48×7.5° | 34 | 70 | 6 |
Machining tolerances for shafts
Model number | shaft diameter(mm) | roundness（O） | perpendicularity（⊥） | Parallelism （∥） | roughness Ra | ||
Nominal dimension | upper | lower | t1（μm） | t4(μm) | t4(μm) | Ra(μm) | |
YRT460 | 460 | 0 | -0.027 | 15 | 10 | 10 | 0.8 |

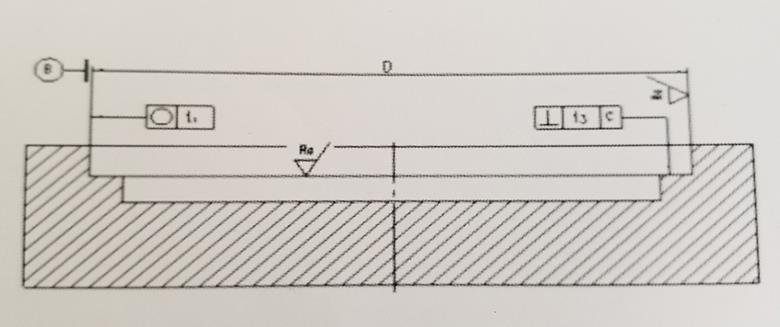

Machining tolerances for housings
Model number | housing diameter(mm) | Roundness （O） | perpendicularity（⊥） | Parallelism （∥） | roughness Ra | ||
Nominal dimension | upper | lower | t1（μm） | t4(μm) | t4(μm) | Ra(μm) | |
YRT460 | 600 | 0.034 | -0.01 | 16 | 11 | 11 | 1.6 |
