Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of rotating table bearing yrt950 in China. Please feel free to buy cheap rotating table bearing yrt950 for sale here from our factory. All customized products are with high quality and competitive price.
Products Description

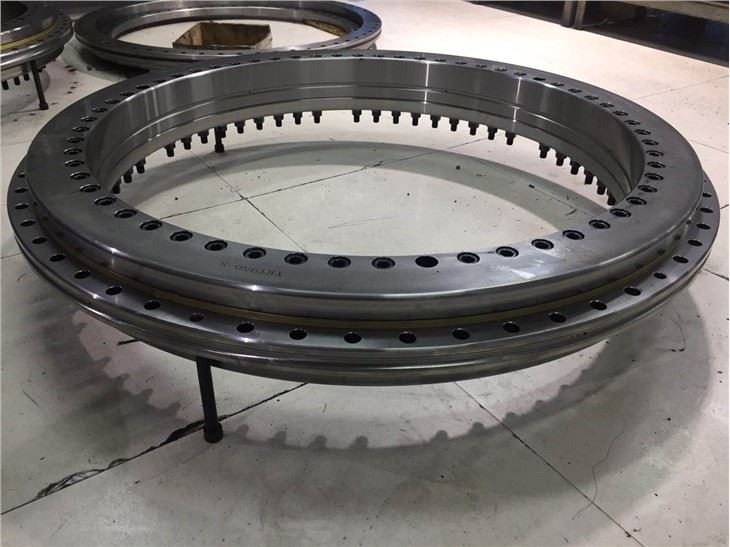

The YRT950 rotating table bearing belongs to the YRT series of large rotating table bearings, with an inner diameter of 950mm, an outer diameter of 1200mm, a thickness of 132mm, and a weight of about 312kg.YRT 950 rotating table bearing consists of a thrust/radial seat ring, a thrust/radial shaft ring, a thrust washer, two needle roller cage assemblies and a set of radial cylindrical rollers. There are evenly distributed mounting screw holes on the seat ring and the shaft ring. Its structural feature is that there are three rows of rollers, two rows of axial rollers to ensure stable axial load-bearing capacity, and one row of radial rollers to ensure that the bearing can withstand radial forces and overturning moments.
main function
The main function of large precision turntable bearings is to support and position large rotating parts so that they can rotate around the axis accurately and smoothly. They can withstand huge axial and radial loads and overturning moments, ensure that the turntable operates under high precision requirements, reduce friction and wear, improve system reliability and service life, and provide key support for the precise operation of large equipment.
Details
Processing And Testing
Models
|
Model Number |
Dimension |
Basic load rating(KN) |
limiting speed (grease) |
Weight Kg |
||||||||||
|
axial load |
radial load |
|||||||||||||
|
d |
D |
H |
H1 |
C |
D1 |
J |
J1 |
dynamic |
static |
dynamic |
static |
|||
|
unit:mm |
Ca |
Coa |
Cr |
Cor |
||||||||||
|
YRT325 |
325 |
450 |
60 |
40 |
20 |
415 |
342 |
430 |
275 |
1930 |
120 |
345 |
170 |
25 |
|
YRT395 |
395 |
525 |
65 |
42.5 |
20 |
486 |
415 |
505 |
300 |
2280 |
186 |
655 |
140 |
33 |
|
YRT460 |
460 |
600 |
70 |
46 |
22 |
560 |
482 |
580 |
355 |
2800 |
200 |
765 |
120 |
45 |
|
YRT580 |
580 |
750 |
90 |
60 |
30 |
700 |
610 |
720 |
490 |
4250 |
228 |
965 |
80 |
89 |
|
YRT650 |
650 |
870 |
122 |
78 |
34 |
800 |
680 |
830 |
1040 |
8000 |
490 |
1800 |
65 |
170 |
|
YRT850 |
850 |
1095 |
124 |
80.5 |
37 |
1018 |
890 |
1055 |
1000 |
8650 |
455 |
1730 |
50 |
253 |
|
YRT950 |
950 |
1200 |
132 |
86 |
40 |
1130 |
990 |
1160 |
1290 |
11400 |
530 |
2040 |
40 |
312 |
|
YRT1030 |
1030 |
1300 |
145 |
92.5 |
40 |
1215 |
1075 |
1255 |
1380 |
12000 |
620 |
2650 |
39 |
375 |
FAQ
Q: Are you trader or factory?
A: we are factory
Q: What kind of service can you provide?
A: We customize according to drawings, from raw materials to delivery
Q: Will weld inspection and paint thickness inspection be performed?
A: Yes. We also support third-party testing.
