Vertical Machining Center
Products Description
Vertical machining center refers to a machining center with the spindle axis set vertically to the workbench. It is mainly suitable for processing complex parts such as plates, disks, molds and small shells. Vertical machining centers can complete processes such as milling, boring, drilling, tapping and cutting threads. A vertical machining center has at least three axes and two linkages, and can generally achieve three axes and three linkages. Some can perform five-axis or six-axis control.
Products show
Main Parameters
| Technical specification | FRT-V855 | FRT-V1060 | FRT-L1370 | FRT-L1580 | |
| Travel | |||||
| Work table travel(X/Y/Z) | mm | 800/550/550 | 1100/600/600 | 1300/700/800 | 1500/800/700 |
| Distance from spindle surface to worktable | mm | 105-655 | 180-780 | 150-950 | 170-870 |
| Guide way | V stands for three lines and L stands for two lines and onehardened rail | ||||
| Work table | |||||
| Table size | mm | 500x1000 | 600x1100 | 700x1300 | 800x1800 |
| The maximum load capacity of the worktable | kg | 600 | 800 | 1000 | 1500 |
| Spindle | |||||
| The spindle taper(model ,sleeve diameter) | mm | BT40/150 | BT40/150 | BT40/150 | BT40/150 |
| The spindle motor power | kw | 5.5-7.5 | 7.5-11 | 11-15 | 11-15 |
| Spindle speed | rpm | 8000 | 8000 | 8000 | 6000 |
| Accuracy | |||||
| Position Precision | mm | 0.01/1000 | 0.01/1000 | 0.01/1000 | 0.01/1000 |
| Repeated position precision | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Size | |||||
| Net weight | kg | 5300 | 6700 | 8200 | 12000 |

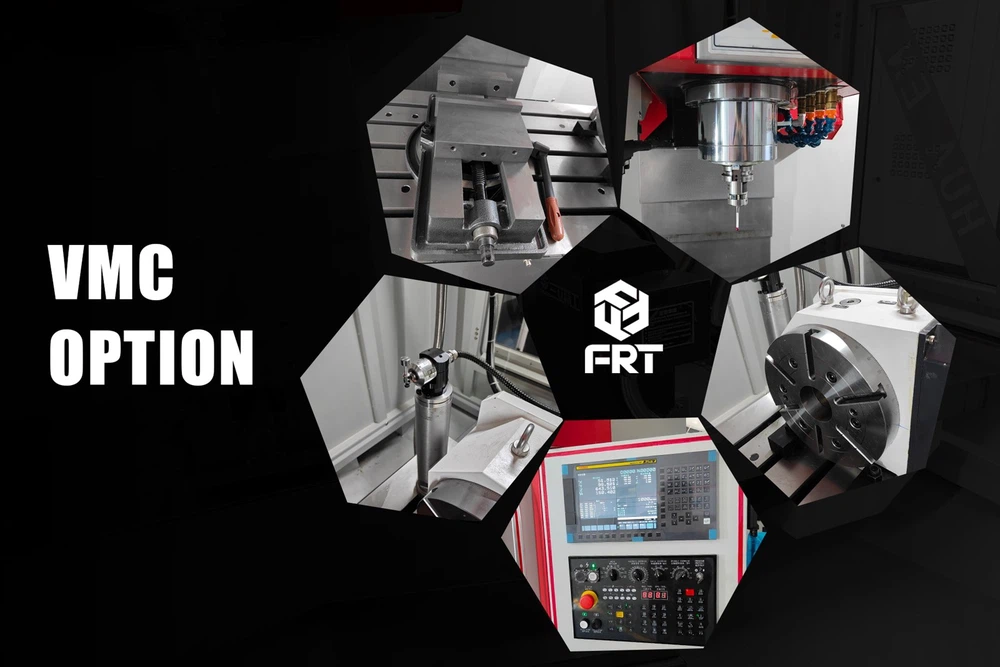

★OPTIONAL★
CNC system simens/Mitsubishi Fanuc/KND
Each axis grating device
Disc magazine/ chain magazine
Spindle center water oulput 2-7MPa
12000-15000 mechanical spindle
Four-axis function
Products can be processed
Metal components: CNC VMCs are well-suited for machining metal workpieces such as aluminum, steel, brass, and titanium. These machines can mill, drill, tap, and cut complex shapes and features into metal parts.
Plastic parts: CNC VMCs can also process plastic workpieces, including thermoplastics and thermosetting plastics. They are used to create precise and intricate shapes for applications in industries like automotive, consumer electronics, and medical devices.
Prototypes: CNC VMCs are often used for prototyping new designs and concepts. They can quickly produce accurate prototypes to test form, fit, and function before mass production.
Mold and die components: CNC VMCs are commonly employed in the production of molds and dies for injection molding, die casting, and stamping processes. They can accurately machine cavities, cores, and other intricate features required in the mold-making process.
Engine and turbine components: CNC VMCs play a crucial role in manufacturing engine and turbine components. They can machine parts like cylinder heads, engine blocks, turbine blades, and impellers with high precision and tight tolerances.
Electronic components: CNC VMCs are used to manufacture various electronic components, such as enclosures, heatsinks, connectors, and PCB (Printed Circuit Board) prototypes. They can accurately mill and drill holes, slots, and other features required in electronic assemblies.
Automotive parts: CNC VMCs are extensively used in the automotive industry for producing components like transmission cases, suspension parts, engine mounts, and brake components. These machines can handle the demanding requirements of the automotive sector.
Tools
End mill
End mills are a commonly used tool on vertical machining centers and are widely used in the processing of metals, plastics, wood and other materials. It is characterized by a smaller diameter of the tool shank, suitable for small or fine machining, a large number of blades, and high cutting efficiency. It is the best tool for metal processing with high precision and smooth surface.
Ball end milling cutter
A ball end mill is a spherical insert with a spherical surface that is used to process round or curved workpieces. It is characterized by small cutting force, small hole wall runout and high processing efficiency. It is suitable for processing workpieces with high precision and surface quality requirements.
T-shaped tool
The T-shaped tool is also one of the commonly used tools on vertical machining centers. Its structural characteristics are that the tool handle is T-shaped and the blade is replaceable, which is suitable for processing various shapes and angles. Commonly used for deep hole processing and groove processing.
Tap
A tap is a tool used for thread processing and is also widely used on vertical machining centers. Its characteristic is that it uses cutting force to create a certain thread shape on the surface of the workpiece, and is a tool used to connect threaded parts.

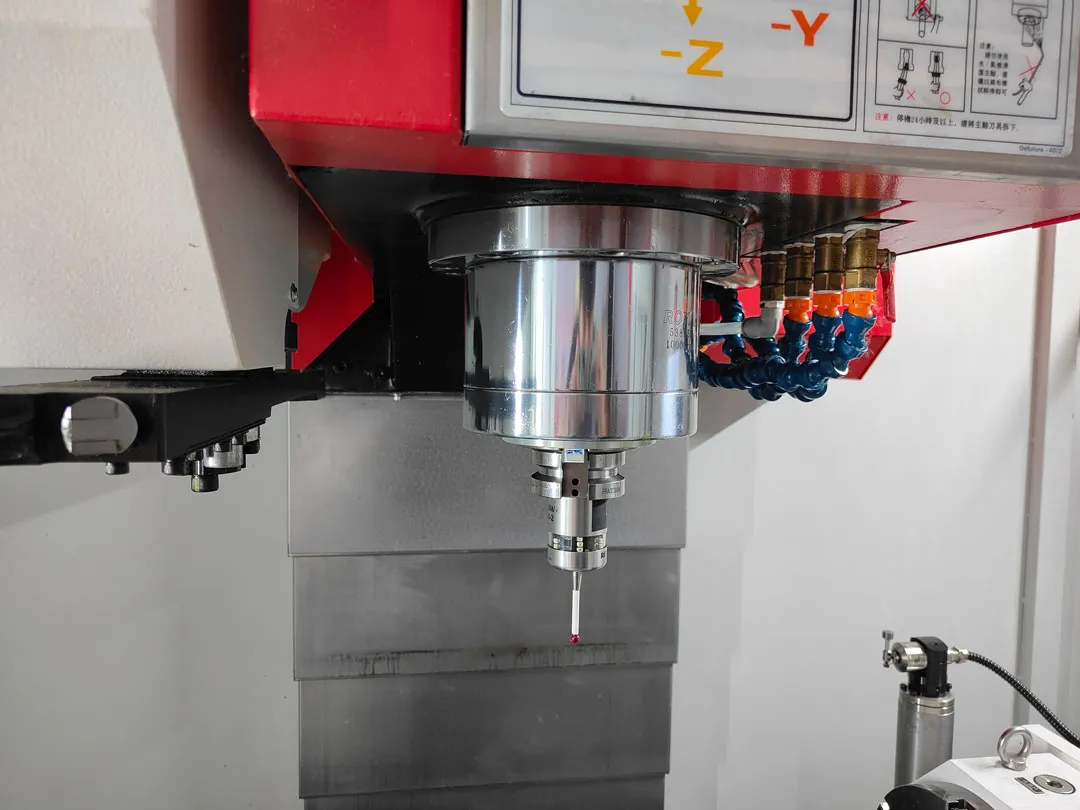

Spindle selections
First of all, the spindle speed is a very important factor. The choice of rotational speed depends on the type of material to be processed and the processing method. Generally speaking, for hard materials and high-speed cutting, higher rotational speeds are required, while for soft materials and larger cutting depths, lower rotational speeds are required. Therefore, when selecting a spindle, the appropriate speed range should be determined based on specific processing needs.
Secondly, the power of the spindle is also a key consideration. The power of the spindle directly affects the efficiency and accuracy of processing. Generally, the greater the power, the stronger the processing capability and can handle more complex processing tasks. Therefore, the appropriate power should be selected according to the actual processing needs to ensure the best processing effect.
The third element is the torque characteristics of the spindle. Torque is a key parameter of the spindle transmission system, which affects the stability and accuracy of the spindle during machining. The high-torque spindle can better cope with load changes during processing, ensuring smooth and efficient processing. Therefore, when selecting a spindle, pay attention to whether its torque characteristics meet the actual processing needs.
In addition, the operating temperature of the spindle is also a key factor to consider. The spindle will generate a lot of heat during high-speed operation. If the working temperature is too high, it will affect the machining accuracy and spindle life. Therefore, it is very important to choose a spindle with a good cooling system and stable heat dissipation performance.
The final element is the accuracy and stability of the spindle. The accuracy and stability of the spindle are directly related to the quality of the finished product of the processed parts. Choosing a spindle with high precision and stability can ensure accuracy and stability during processing and improve processing efficiency and quality.
