CNC Vertical Machining Center VMC 1270
Features

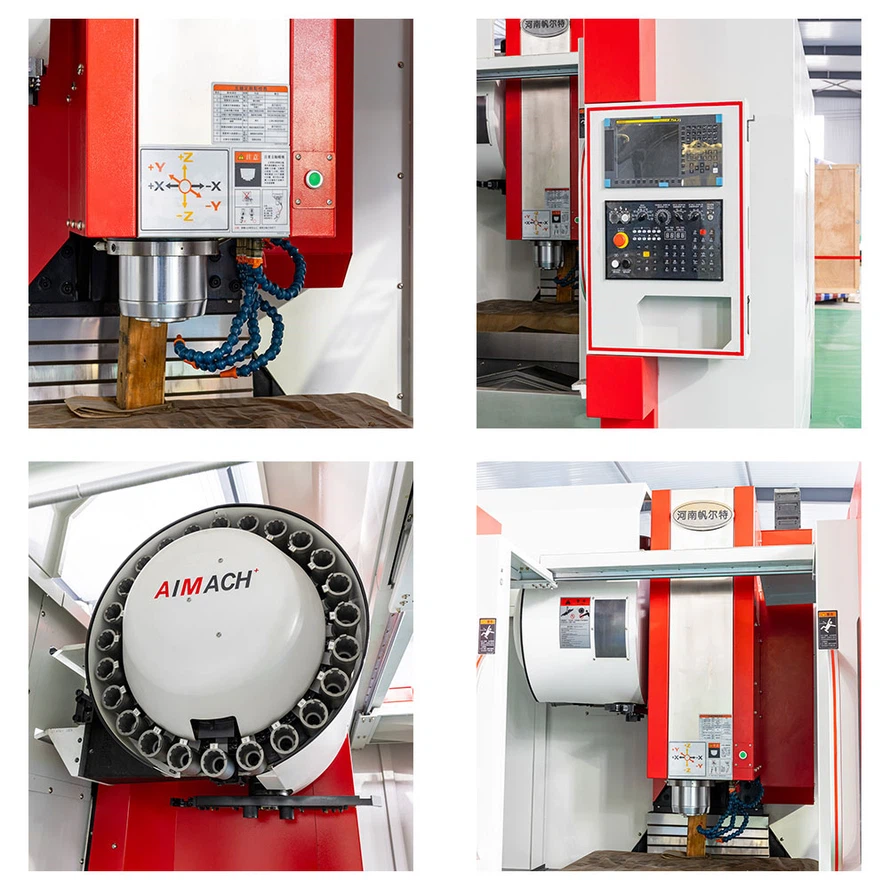

China Top supplier 3 axis CNC Vertical Machining Center VMC 1270L is cutting with powerful,high-speed positioning,mechanical and electrical integration,auVMCatic Chip control and security protection features.
1.Compact structure and rigid spindle component are good for heavy cutting ;
2.Easy to chuck and remove, workpiece roundness and other precision are ensured ;
3.The turret on the side moves along longitudinal or cross rails ;
4.There are three cross rails to support the slide ;
5.Ball screws and linear rails are used to ensure smooth feed and high precision ;
6.Different handles, electrical buttons and CRT display are allocated the same rocking panel for easy operation ;
7.Machine adopts totally sealed guard structure.
8.Optional system:the controller can be selected from FANUC, Mitsubishi, Siemens, KND,GSK.
Applications
Large CNC vertical machining center is mainly used in medium-sized parts and molds,the workpiece in a fixture may be for the completion of milling,drilling,boring,it can be single used and can also be used for multiple operations on parts in a production line.
Specifications
Two-axes linear vertical machining center specifications
|
model unit：mm |
VMC-L650 |
VMC-L850 |
VMC-L850B |
VMC-L1060 |
VMC- L1060 |
VMC-L1150 |
|
Worktable Size |
500×800 |
500×1000 |
550×1000 |
600×1300 |
600×1300 |
600×1200 |
|
Travel for X axes |
600 |
800 |
800 |
1000 |
1000 |
1100 |
|
Travel for Y axes |
500 |
500 |
500 |
600 |
600 |
550 |
|
Travel for Z axes |
500 |
500 |
500 |
600 |
600 |
550 |
|
Distance from spindle center to column guide surface |
560 |
560 |
599 |
655 |
660 |
699 |
|
Distance from spindle nose to table surface |
110-610 |
110-610 |
160-660 |
70-670 |
70-670 |
160-710 |
|
Worktable T-slot(number-size*space between) |
3-18×144 |
5-18×90 |
5-18×100 |
5-18×100 |
5-18×00 |
5-18×125 |
|
Taper hole of spindle(model/installation size) |
BT40/ Ø130 |
BT40/ Ø150 |
BT40/ Ø150 |
BT40/ Ø150 |
BT40/ Ø150 |
BT40/ Ø150 |
|
Spindle speed |
8000rpm |
8000rpm |
8000rpm |
8000rpm |
8000rpm |
8000/10000 |
|
Ball Screw specifications of X&Y&Z Axes |
4012 |
4012 |
451645164512 |
4012 |
4012 |
451645164512 |
|
Rapid shift of axes of X&Y&Z(m/min) |
24,24,18 |
24,24,18 |
24,24,18 |
24,24,18 |
24,24,18 |
24,24,18 |
|
Linear guide specifications for X axes |
MSA35LA |
MSA35LA |
MSA35E |
MSA45LA |
MSA45LA |
MSA35E |
|
Linear guide specifications for Y axes |
MSA35LA |
MSA45LA |
MSA45A |
MSA55LA |
MSA55LA |
MSA45A |
|
Linear guide specifications for Z axes |
Slide rail |
Slide rail |
Slide rail |
Slide rail |
Slide rail |
Slide rail |
|
Electrical connect method of X&Y&Z Axes |
Direct connection |
Direct connection |
Direct connection |
Direct connection |
Direct connection |
Direct connection |
|
Recommend select and use main motor parameter(power KW) |
5.5 |
7.5 |
7.5 |
7.5 |
7.5 |
7.5~15 |
|
Recommend Select and use X&Y&Z electrical machine parameter(torque NM) |
8,10,10 |
10,12,12 |
16,16,16 |
12,16,16 |
12,16,16 |
16,16,16 |
|
Guide rail shield stand length(X,Y,Z) |
380,303,190 |
404,303,190 |
352,300,330 |
520,303,275 |
520,303,275 |
525,300,450 |
|
Lathe bed heel block height |
30 |
30 |
30 |
50 |
50 |
30 |
|
worktable bearing |
350 Kg |
450 Kg |
600 Kg |
800Kg |
800Kg |
800 Kg |
|
Machine net weight |
4t |
4t |
5t |
6.5t |
5t |
6t |
|
remark |
Herringbone Stand column |
Herringbone Stand column |
Herringbone Stand column |
Herringbone Stand column |
Herringbone Stand column |
Herringbone Stand column |
|
model unit：mm |
VMC-L1270 |
VMC-L1370 |
VMC-L1580 |
VMC-L1690 |
VMC-L1890 |
VMC-L1890B |
|
Worktable size |
700×1360 |
700×1500 |
800×1700 |
900×1800 |
900×2000 |
900×2000 |
|
Travel for X axes |
1200 |
1300 |
1500 |
1600 |
1800 |
1800 |
|
Travel for Y axes |
700 |
700 |
800 |
900 |
900 |
900 |
|
Travel for Z axes |
600 |
700 |
700 |
600 |
600 |
720 |
|
Distance from spindle center to column guide surface |
785 |
757 |
810 |
950 |
950 |
950 |
|
Distance from spindle nose to table surface |
87-687 |
190-890 |
130-830 |
160-760 |
160-760 |
160-880 |
|
Worktable T-slot(number-size*space between) |
5-18×122 |
5-18×135 |
5-22×140 |
5-22×165 |
5-22×165 |
5-22×165 |
|
Taper hole of spindle(model/installation size) |
BT50/ Ø155 |
BT50/ Ø155 |
BT50/ Ø155 |
BT50/ Ø190 |
BT50/ Ø190 |
BT50/Ø190 |
|
Spindle speed |
8000rpm |
8000rpm |
8000rpm |
8000rpm |
8000rpm |
8000 |
|
Ball Screw specifications of X&Y&Z Axes |
5010 |
5010 |
6310,6310,5010 |
5512 |
5512 |
5512 |
|
Rapid shift of axes of X&Y&Z(m/min) |
24,24,18 |
24,24,18 |
20,20,15 |
20,20,15 |
20,20,15 |
20,20,15 |
|
Linear guide specifications for X axes |
MSA55LS |
MSA45LS(three sliding block) |
MSA55LS(three sliding block) |
MSA55LS(three sliding block) |
MSA55LS(three sliding block) |
MSA55LS(three sliding block) |
|
Linear guide specifications for Y axes |
MSA45LS(four rails) |
MSA45LS(four rails) |
MSA45LS(four rails) |
MSA45LS(four rails) |
MSA45LS(four rails) |
MSA45LS(four rails) |
|
Linear guide specifications for Z axes |
Slide rail |
Slide rail |
Slide rail |
Slide rail |
Slide rail |
Slide rail |
|
Electrical connect method of X&Y&Z Axes |
Direct connection |
Direct connection |
Direct connection |
Direct connection |
Direct connection |
Direct connection |
|
Recommend select and use main motor parameter(power KW) |
11~15 |
11~15 |
15 |
15~18.5 |
15~18.5 |
15~18.5 |
|
Recommend Select and use X&Y&Z electrical machine parameter(torque NW) |
16,16,16 |
16,16,20 |
24,26,26 |
24,30,30 |
26,30,30 |
26,30,30 |
|
Guide rail shield stand length(X,Y,Z) |
615,270,250 |
|||||
|
Lathe bed heel block height |
30 |
30 |
65 |
30 |
30 |
30 |
|
worktable bearing |
1000Kg |
1000Kg |
1500Kg |
1600 Kg |
1600 Kg |
1600Kg |
|
Machine net weight |
7.5t |
8.5t |
10t |
10.5t |
10.5t |
11t |
|
remark |
Herringbone Stand column |
Herringbone Stand column |
Herringbone Stand column |
Herringbone Stand column |
Herringbone Stand column |
Remark:Tool magazine from Taiwan, can match 24pcs or 36pcs knives
