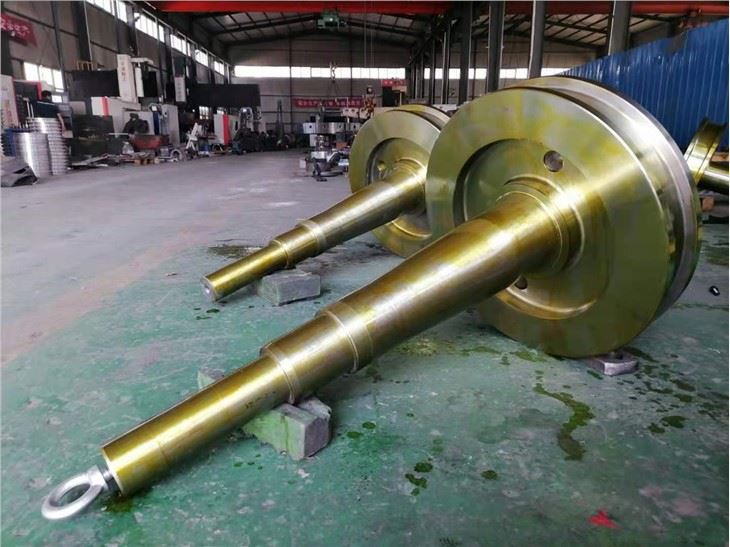

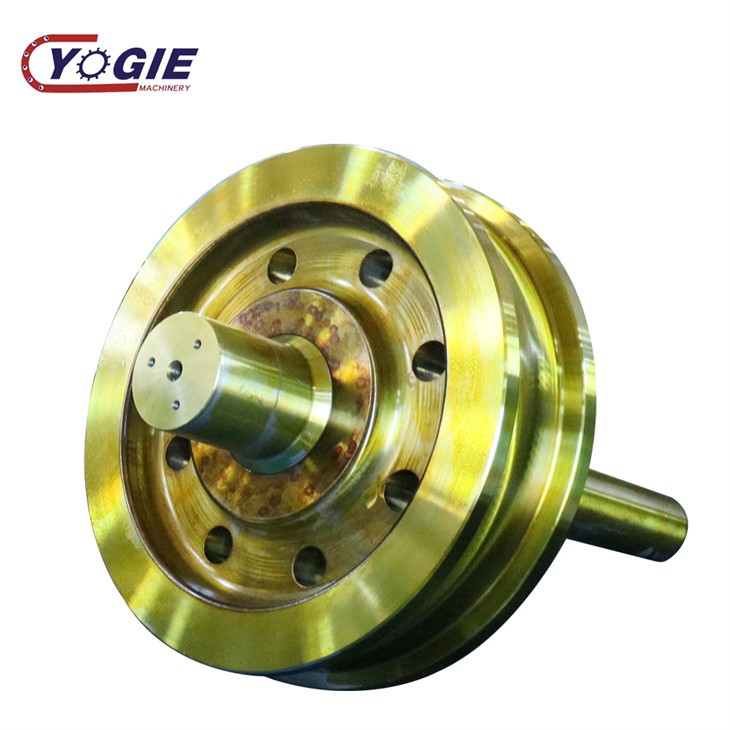

Trolley Wheel And Shaft Assembly

Name: Trolley Wheel And Shaft Assembly
Brand: Yujie
SKU: 146777854

Material:AISI4140
Size:As per customer drawing
Suface roughness:Ra1.6-Ra0.8
Heat treatment:Quenching or tempering
Service:OEM ODM
Certification:ISO SGS
Packing:according to customers requests.

Send Inquiry

Description

Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of trolley wheel and shaft assembly in China. Please feel free to buy cheap trolley wheel and shaft assembly for sale here from our factory. All customized products are with high quality and competitive price.

Products Description

The wheel and shaft choose material AISI4140, which is the common used material and has good performance. They were processed seperately , and when finished the production , they were assembled together.

Assembly process

Trolley Wheel And Shaft Assembly 3

Installing bearings: Bearings are usually installed on axles by hot or cold installation. When hot installation, the bearing is heated to a certain temperature (generally not more than 120℃) to expand its inner hole, and then quickly inserted into the axle journal. After cooling, the bearing will fit tightly on the axle. Cold installation uses special press-fitting equipment to press the bearing evenly onto the axle. During the press-fitting process, attention should be paid to keeping the bearing vertical and stable to avoid tilting or damage to the bearing.

Installing wheels: Place the axle assembly with the bearing installed into the wheel hub hole, align the keyway of the axle with the keyway on the wheel hub, and then insert the key into the keyway to ensure that the key and keyway fit tightly. Next, use bolts or other fastening devices to fix the wheel on the axle. When tightening the bolts, follow the specified torque requirements to ensure that the wheel is firmly installed.

Adjust the clearance: After assembly, the clearance between the wheel and the track needs to be adjusted. Generally speaking, a certain gap should be maintained between the wheel tread and the top surface of the track to ensure that the wheels can rotate freely during the operation of the crane, while avoiding the gap between the wheel and the track being too large, which may lead to unstable operation or rail gnawing. The size of the gap is usually determined according to factors such as the type of crane and working conditions.
