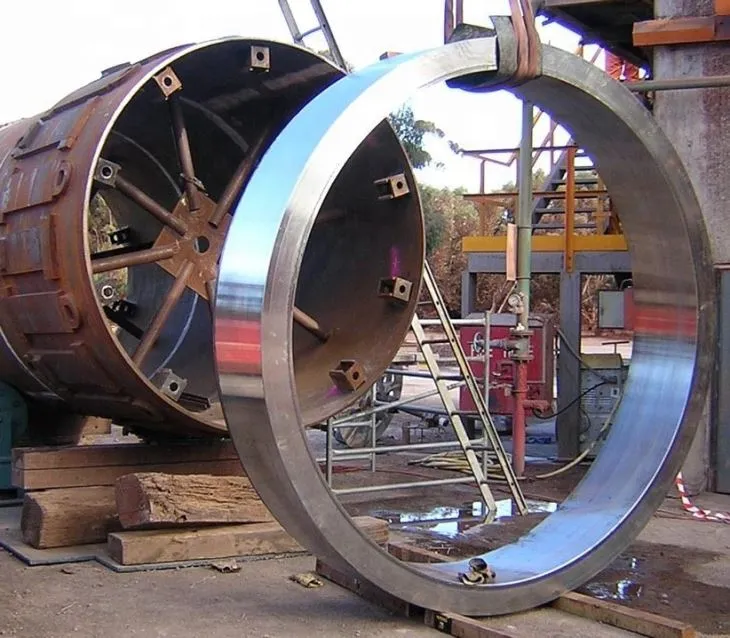

support rings of the rotary kiln/Rotary Kiln Rolling Ring Tyre/drying drum tires
The support rings ,also known as rotary kiln riding ring or rotary kiln tyre, is mounted on the cylinder and rotates on the carrier. The support ring is connected to the kiln body by a pad, a stopper, or the like. The wheel is a sturdy large steel ring that fits on the cylinder and supports the full gravity of the rotary kiln (including kiln bricks and materials). It has heavy load, large torque, multiple support points and complicated operating system. Therefore, the support rings must have sufficient strength and durability.
support rings (whole and segments)
Products Advantage
1. High strength of the wheel and good durability
The rotary kiln support rings are made of ZG45 and ZG42CrMO materials, which can ensure the strength and toughness, thus playing a better role in supporting.
2. The support rings is treated with advanced double-medium quenching process in the casting process, which is highly adaptable.
The support ring is treated by advanced double-medium quenching process, and each part is forged uniformly. It has the characteristics of high quenching hardness and high toughness value, which makes the support ringshave good wear resistance and can adapt to various harsh working environments. .
3. The support ring has a simple structure, which is easy to manufacture and maintain.
4. Luoyang Yujie can process various specifications of rotary kiln support rings according to customers' drawings. The optimized technology and excellent quality can ensure that the processed rotary kiln support ring matches well with the original rotary kiln equipment.
processing
In the rough machining stage, the casting allowance is removed by lathes and other equipment, and the outer circle, inner hole, end face and other parts are machined to lay the foundation for subsequent fine machining. Fine machining needs to be carried out on high-precision equipment to ensure the dimensional accuracy and surface roughness of the outer circle and inner hole of the wheel band, and at the same time ensure the form and position tolerances of each machined surface, such as cylindricity and coaxiality, so that the wheel band can better cooperate with the supporting wheel and the kiln body.
In addition, in order to improve the surface hardness and wear resistance, the surface of the wheel band is often quenched. After the machining is completed, a comprehensive quality inspection is also required, including dimensional measurement, flaw detection, etc. Only when all indicators are qualified can it be put into use.
