Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of crossed roller bearing re series in China. Please feel free to buy cheap crossed roller bearing re series for sale here from our factory. All customized products are with high quality and competitive price.

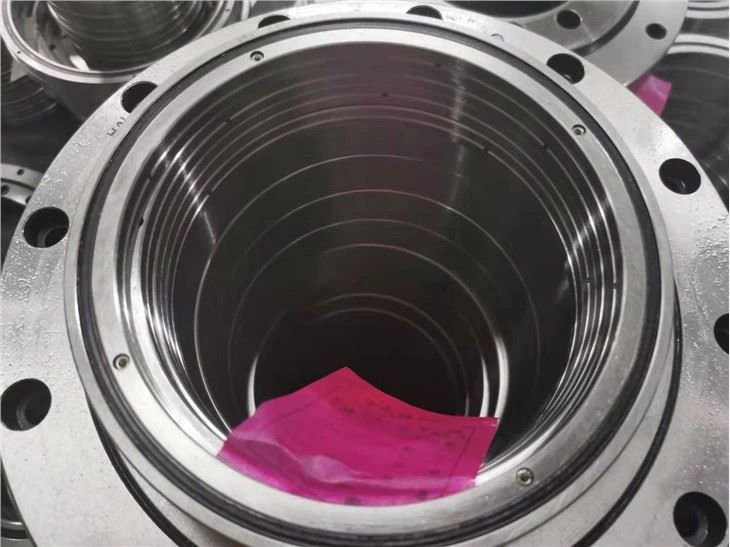

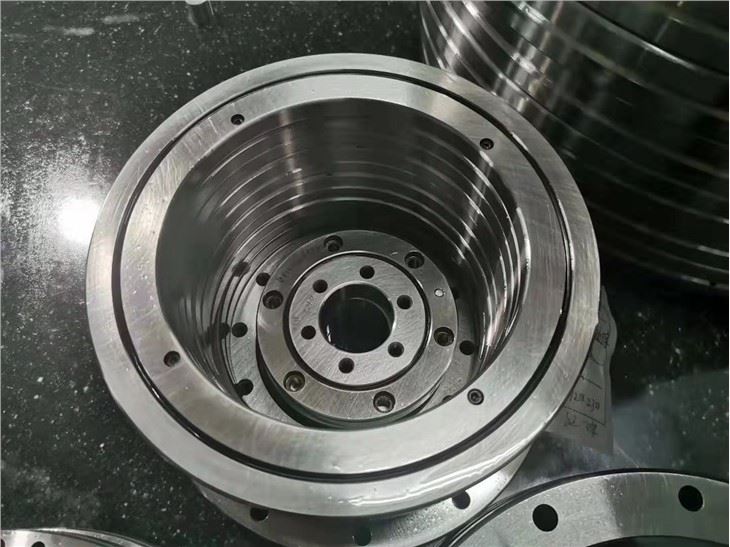

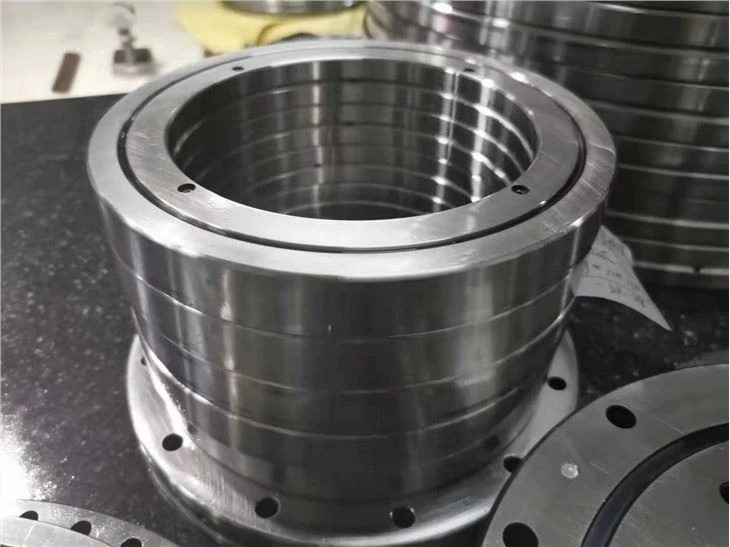

Crossed Roller Bearing RE Series

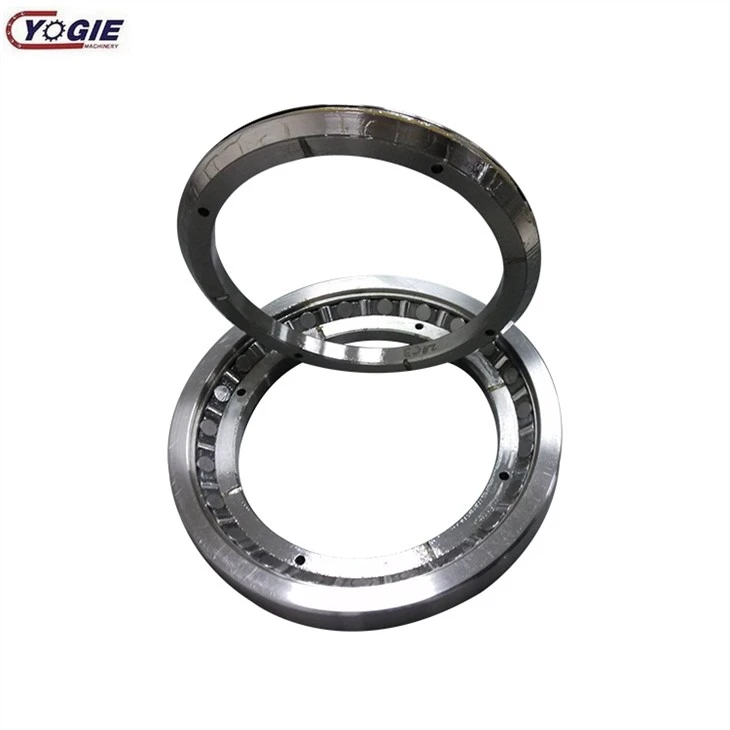

Model RE(Separable Inner Ring, Type for Outer Ring Rotation)
This new model is based on the design of principal of the RB, Having the same major dimensions as model RB, its inner ring is separable while the outer ring is integrated with the main body, this model is used in locations where the rotation accuracy of the outer ring is required.
Outer diameter(D)(mm) | Tolerance of the Outer ring | ||||||
Radial runout | Axial runout | ||||||
Above | Or less | P5 | P4 | P2 | P5 | P4 | P2 |
18 | 30 | 7 | 5 | 2.5 | 7 | 5 | 2.5 |
30 | 50 | 8 | 5 | 4 | 8 | 5 | 4 |
50 | 80 | 10 | 6 | 5 | 10 | 6 | 5 |
80 | 120 | 11 | 7 | 5 | 11 | 7 | 5 |
120 | 150 | 13 | 8 | 5 | 13 | 8 | 5 |
150 | 180 | 15 | 10 | 7 | 15 | 10 | 7 |
180 | 250 | 18 | 11 | 7 | 18 | 11 | 7 |
250 | 315 | 20 | 13 | 8 | 20 | 13 | 8 |
315 | 400 | 23 | 15 | 10 | 23 | 15 | 10 |
400 | 500 | 25 | 16 | 12 | 25 | 16 | 12 |
500 | 630 | 30 | 20 | 15 | 30 | 20 | 15 |
630 | 800 | 35 | 25 | 20 | 35 | 25 | 20 |
800 | 1000 | 40 | 30 | 25 | 40 | 30 | 25 |
1000 | 1250 | 45 | 35 | 30 | 45 | 35 | 30 |
RE Series
Shaft diameter(mm) | Model number | Main dimensions(mm) | Shoulder height | Basic load rating(radial) | Weight | |||||||
Inner ring d (mm) | Outer ring D(mm) | dp | width B B1 | Greasing hole | r (min) | ds (mm) | Dh (mm) | C kN | Co kN | Kg | ||
40 | RE4010 | 40 | 65 | 53.5 | 10 | 1.5 | 1 | 47.5 | 58 | 8.33 | 10.6 | 0.16 |
45 | RE4510 | 45 | 70 | 58.5 | 10 | 1.5 | 1 | 51 | 61.5 | 8.62 | 11.3 | 0.17 |
50 | RE5013 | 50 | 80 | 66 | 13 | 1.5 | 1 | 57.5 | 72 | 16.7 | 20.9 | 0.27 |
60 | RE6013 | 60 | 90 | 76 | 13 | 1.5 | 1 | 68 | 82 | 18 | 24.3 | 0.3 |
70 | RE7013 | 70 | 100 | 86 | 13 | 1.5 | 1 | 78 | 92 | 19.4 | 27.7 | 0.35 |
80 | RE8016 | 80 | 120 | 101.4 | 16 | 1.5 | 1 | 91 | 111 | 30.1 | 42.1 | 0.7 |
90 | RE9016 | 90 | 130 | 112 | 16 | 1.5 | 1.5 | 98 | 118 | 31.4 | 45.3 | 0.75 |
100 | RE10016 | 100 | 140 | 121.1 | 16 | 1.5 | 1.5 | 109 | 129 | 31.7 | 48.6 | 0.83 |
RE10020 | 150 | 127 | 20 | 1.5 | 1.5 | 113 | 133 | 33.1 | 50.9 | 1.45 | ||

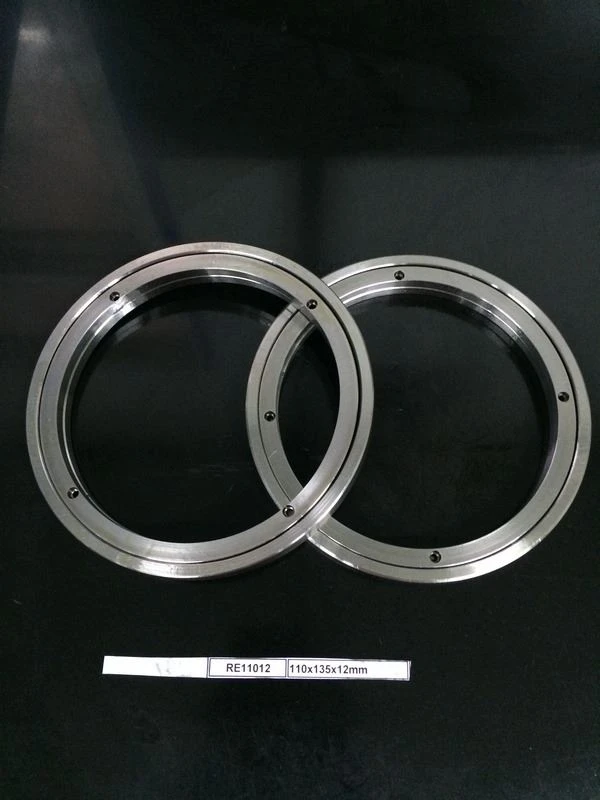

110 | RE11012 | 110 | 135 | 123.3 | 12 | 1.5 | 1 | 117 | 127 | 12.5 | 24.1 | 0.4 |
RE11015 | 145 | 129 | 15 | 1.5 | 1 | 122 | 136 | 23.7 | 41.5 | 0.75 | ||
RE11020 | 160 | 137 | 20 | 1.5 | 1.5 | 120 | 140 | 34 | 54 | 1.56 | ||
120 | RE12016 | 120 | 150 | 136 | 16 | 1.5 | 1 | 127 | 141 | 24.2 | 43.2 | 0.72 |
RE12025 | 180 | 152 | 25 | 2 | 2 | 133 | 164 | 66.9 | 100 | 2.62 | ||
130 | RE13015 | 130 | 160 | 146 | 15 | 1.5 | 1 | 137 | 152 | 25 | 46.7 | 0.72 |
RE13025 | 190 | 162 | 25 | 2 | 2 | 143 | 174 | 69.5 | 107 | 2.82 | ||
140 | RE14016 | 140 | 175 | 160 | 16 | 1.5 | 1.5 | 147 | 162 | 25.9 | 50.1 | 1 |
RE14025 | 200 | 172 | 25 | 2 | 2 | 154 | 185 | 74.8 | 121 | 2.96 | ||
150 | RE15013 | 150 | 180 | 166 | 13 | 1.5 | 1 | 158 | 172 | 27 | 53.5 | 0.68 |
RE15025 | 210 | 182 | 25 | 2 | 2 | 164 | 194 | 76.8 | 128 | 3.16 | ||
RE15030 | 230 | 192 | 30 | 3 | 2 | 173 | 210 | 100 | 156 | 5.3 | ||
160 | RE16025 | 160 | 220 | 192 | 25 | 2 | 2 | 173 | 204 | 81.7 | 135 | 3.14 |
170 | RE17020 | 170 | 220 | 196.1 | 20 | 1.5 | 2 | 184 | 198 | 29 | 62.1 | 2.21 |
180 | RE18025 | 180 | 240 | 210 | 25 | 2 | 2 | 195 | 225 | 84 | 143 | 3.44 |
190 | RE19025 | 190 | 240 | 219 | 25 | 1.5 | 1.5 | 202 | 222 | 41.7 | 82.9 | 2.99 |
200 | RE20025 | 200 | 260 | 230 | 25 | 2 | 2.5 | 215 | 245 | 84.2 | 157 | 4 |
RE20030 | 280 | 240 | 30 | 3 | 2.5 | 221 | 258 | 114 | 200 | 6.7 | ||
RE20035 | 295 | 247.7 | 35 | 3 | 2.5 | 225 | 270 | 151 | 252 | 9.6 | ||
220 | RE22025 | 220 | 280 | 250.1 | 25 | 2 | 2.5 | 235 | 265 | 92.3 | 171 | 4.1 |
240 | RE24025 | 240 | 300 | 272.5 | 25 | 2 | 3 | 256 | 281 | 68.3 | 145 | 4.5 |
250 | RE25025 | 250 | 310 | 280.9 | 25 | 2 | 3 | 268 | 293 | 69.3 | 150 | 5 |
RE25030 | 330 | 287.5 | 30 | 3 | 3 | 269 | 306 | 126 | 244 | 8.1 | ||
RE25040 | 355 | 300.7 | 40 | 3.5 | 3 | 275 | 326 | 195 | 348 | 14.8 | ||
300 | RE30025 | 300 | 360 | 332 | 25 | 2 | 3 | 319 | 344 | 75.7 | 178 | 5.9 |
RE30035 | 395 | 345 | 35 | 3 | 3 | 322 | 368 | 183 | 367 | 13.4 | ||
RE30040 | 405 | 351.6 | 40 | 3.5 | 3 | 326 | 377 | 212 | 409 | 17.2 | ||
350 | RE35020 | 350 | 400 | 376.6 | 20 | 1.5 | 3 | 363 | 383 | 54.1 | 143 | 3.9 |
400 | RE40035 | 400 | 480 | 440.3 | 35 | 3 | 3.5 | 422 | 459 | 156 | 370 | 14.5 |
RE40040 | 510 | 453.4 | 40 | 3.5 | 3.5 | 428 | 479 | 241 | 531 | 23.5 | ||
450 | RE45025 | 450 | 500 | 476.6 | 25 | 1.5 | 1.5 | 464 | 484 | 61.7 | 182 | 6.6 |
500 | RE50025 | 500 | 550 | 526.6 | 25 | 1.5 | 1.5 | 514 | 534 | 65.5 | 201 | 7.3 |
RE50040 | 600 | 548.8 | 40 | 3 | 3.5 | 526 | 572 | 239 | 607 | 26 | ||
RE50050 | 625 | 561.6 | 50 | 3.5 | 3.5 | 536 | 587 | 267 | 653 | 41.7 | ||
600 | RE60040 | 600 | 700 | 650 | 40 | 3 | 4 | 627 | 673 | 264 | 721 | 29 |
Installation Procedure
1. Thoroughly clean the housing and other parts to be installed, and check to determine if deburring is required.
2. Since the Cross-Roller Ring is a thin-wall bearing type and therefore tends to misalign when it is installed, in case of this situation, gradually drive the product into the housing or onto the shaft by gently hitting it with a plastic hammer, while keeping the product horizontal.Taking care, continue to hammer until it fully contacts the reference surface.
3. Place the presser flange onto the Crossing-Roller Ring.Rock the flange several times to match the bolt holes.
4. Insert the presser bolts into the holes. Manually turn the bolts and make sure they do no display skewing caused by misalignment of the holes.
5. As is shown in the figure1:
Tighten the presser bolts in three to four steps from light to full tightening by repeatedly securing the bolts in diagonal order. When tightening the separable inner or outer ring, slightly turning the integral outer or inner ring will correct the dislocation between the ring and the body.
FAQ:
Q: Are you factory or trading company??
A: We are a factory
Q: Where is your factory located?
A: Our factory located in Jianxi Industrial park, Luoyang city, Henan province, China
Q: Are crossed roller bearings your main products?
A: Yes, we have advanced equipment to produce crossed roller bearings, Vertical CNC lathe, CNC Grinding Machine, Vertical CNC machining center VMC650 two axes linear rail for drilling, and other inspection machines.
Q: Whether your factory have large stock for RE series crossed roller bearing?
A:Yes, we have a large stock of RE series crossed roller bearing.Even if the product quantity is insufficient, we can produce it in the shortest time, because we have the most professional machinery and team.
