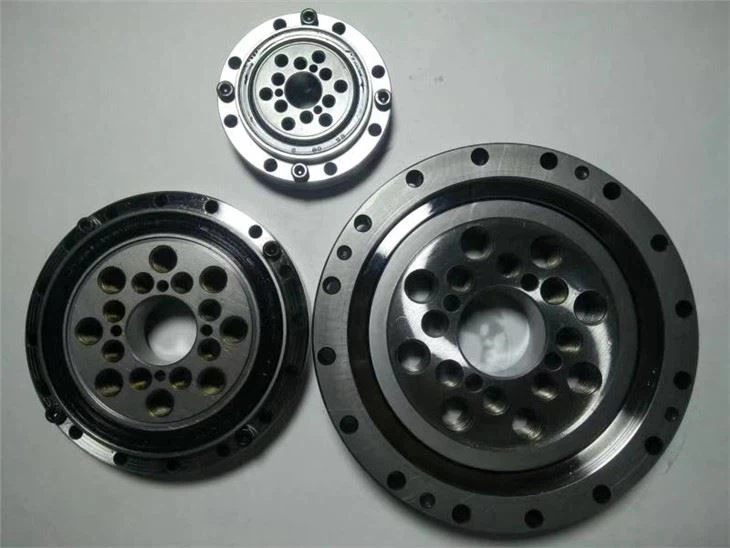

RV Reducer Bearing

Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of rv reducer bearing in China. Please feel free to buy cheap rv reducer bearing for sale here from our factory. All customized products are with high quality and competitive price.

RV Reducer Bearing

Brief introduction of RV Reducer Bearing

Due to the RV reducer at the same time occlusion gear number is more, so it has a small lightweight, but also has the characteristics of high rigidity overload resistance, besides, because there is no clearance, rotary vibration, small inertia, so it has good acceleration performance, can achieve smooth operation and obtain the correct position accuracy. Based on the advantages of RV reducer, it is widely used in industrial robots, machine tools, aerospace, and other industries.

Because of the large number of RV Reducer Bearing gear gears at the same time, it has the characteristics of small lightweight, high rigidity, and overload resistance. Besides, it has good acceleration performance because there is no clearance, rotating vibration, and small inertia, so it has good acceleration performance. Can achieve smooth operation and obtain the correct position accuracy.

These advantages of RV reducer Bearing are due to its precision installation accuracy and machining precision of various parts and components. The whole gear reducer is assembled with pre-compression assembly mode, which requires very high precision of each part of the reducer internal, and the precision of each part of the reducer is very high, and the precision of each part of the reducer is very high. Also on the internal bearing requirements are very high; The shape and structure of bearing and precise positioning are the key factors of compact structure, excellent rigidity, and precise transmission. The bearing is required to have large output moments, high precision, large load, small volume, high rigidity, low noise, long life, and stable operation. The characteristics of high reliability; When installing two paired main supporting shafts, be sure to adjust the axial preload of the bearing Complete, specific specifications of bearing pre-pressure value can be with our company technical personnel contact.

Based on the advantages of RV reducer Bearing, widely used in industrial robots, machine tools, aerospace, and other industries.

Structure Type Of RV Reducer Bearing

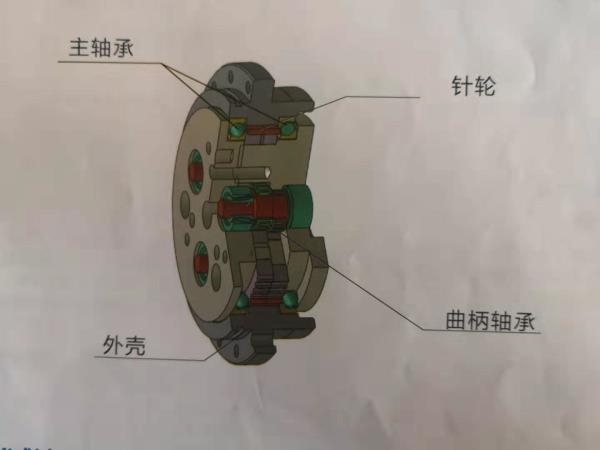

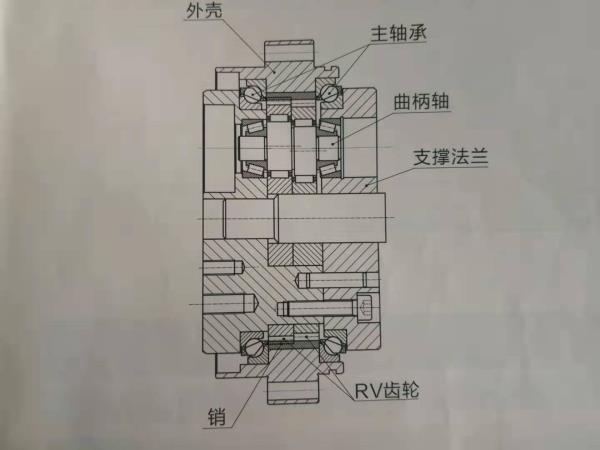

According to the application situation, RV reducer bearings are mainly classified into main bearings and crank bearings, in which the main bearings include thin-walled angular contact bearings and thin-walled tapered roller bearings, and the main bearings are mainly composed of thin-walled angular contact bearings and thin-walled tapered roller bearings. Crank bearings include thin-walled tapered roller bearings, needle rollers and holder assemblies.

Base Bearing

Thin-walled angular contact ball bearing

The single row angular contact bearing is composed of an outer ring, an inner ring, an integral holder and a set of precision steel balls, and the contact angle is 40 °. Bearings can bear both radial loads and axial loads in one direction and pure axial loads in a single direction. This kind of bearings are often used in pairs in a back-to-back configuration, and the bearing section is small, thus saving the installation space of the main engine. It is mainly used in the main supporting part of RV reducer bearing.

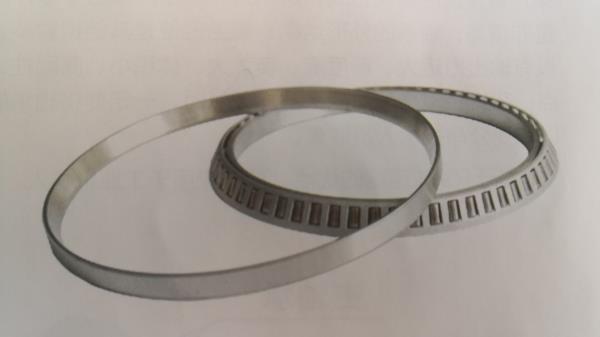

Thin-walled tapered roller bearing

the single-row conical roller bearing is composed of an outer ring, an inner ring, an integral holder, and a group of precision conical rollers, the contact angle is between 20 and 24 degrees, the radial load and the axial load in one direction can be borne, and the two bearings are often used in pairs; The holder adopts a high-quality carbon steel structure and is mainly applied to the main supporting part of the RV reducer bearing.

Crankshaft Bearing

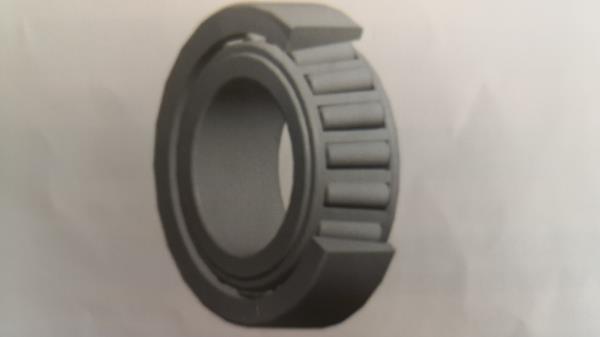

Tapered Roller Bearing

Like the thin-walled tapered roller bearing in the main bearing, the profile size is smaller than the tapered roller bearing in the main bearing and is mainly used in the crank support.

Needle holder assembly

Roller type contact mode is line contact, bearing capacity and rigidity are higher than point contact ball bearing, do not bear axial load but bear larger radial load, shape dimensions are non-standard, combined with tapered roller bearing, the ball bearing is used in combination with tapered roller bearing. It is mainly used in the crank supporting part of RV reducer bearing.

Installation of RV Reducer Bearing

Installation

Installation consideration

Clean the bearing seat or shaft before installation, remove oil and impurities, and make sure there are no burrs or edges. (be sure to make sure that the inner diameter of the bearing seat and the outer diameter of the bearing, the matching tolerance between the journal and the inner diameter of the bearing meets the requirements.)

When installing the inner ring, make sure that the rolling body is not subjected to force. Gently tap the inner ring face with a plastic hammer until it can be determined by the sound that the inner ring end face is in full contact with the fitting end face; when installing the outer ring, refer to the inner ring installation requirements.

RV reducer bearing installation needs to be arranged in pairs, the customer to adjust the pre-tightening force of the bearing by themselves in the assembly process, the appropriate pre-tightening force can make the bearing rigid after assembly to the best state, can withstand two-way axial force, radial force, the bearing can be equipped with two-way axial force, radial force, and so on. A load in various directions, such as a tipping moment.

Dimension Gauge Table

Main bearing (thin-walled angular contact ball bearing)

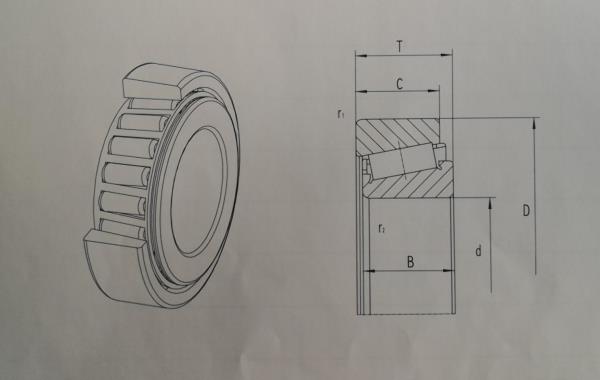

Crank bearing (thin-walled tapered roller bearing)

FAQ:

Q: Are you a factory or trading company??

A: We are a factory

Q: Where is your factory located?

A: Our factory located in Jianxi Industrial park, Luoyang city, Henan province, China

Q: Are crossed roller bearings your main products?

A: Yes, we have advanced equipment to produce crossed roller bearings, a Vertical CNC lathe, CNC Grinding Machine, Vertical CNC machining center VMC650 two axes linear rail for drilling, and other inspection machines.

Q: Whether your factory have large stock for Harmonic Drive Bearing?

A: Yes, we have a large stock of our products. Even if the product quantity is insufficient, we can produce it in the shortest time, because we have the most professional machinery and team.
