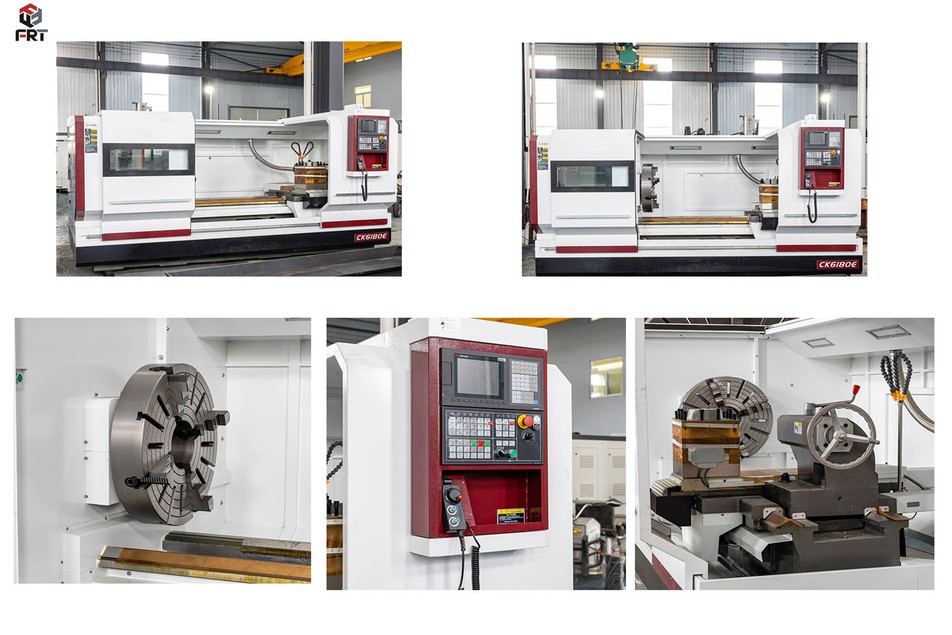

A CNC horizontal turning lathe is a precision machining tool used to shape cylindrical workpieces. It operates by rotating the workpiece horizontally while a cutting tool removes material to create precise shapes and features. Controlled by computer software, it offers high accuracy and versatility, making it essential in industries like automotive, aerospace, and general engineering for manufacturing various components with tight tolerances.
Features
CNC Control: It is controlled by computer software that precisely manages the movement of the cutting tool and the rotation of the workpiece.
Horizontal Configuration: Workpieces are mounted horizontally and the cutting tool moves along the Z-axis, parallel to the axis of rotation of the workpiece.
High Precision: CNC horizontal turning lathes are capable of high precision machining, making them suitable for producing complex parts with tight tolerances.
Versatility: They can handle a wide range of materials, including metals, plastics, and composites.
Automation: Many CNC horizontal turning lathes are equipped with automation features such as automatic tool changers and robotic part
loading/unloading systems.
Main components
Bed: The base of the lathe that supports all other components.
Headstock: Houses the spindle motor and provides the rotational motion to the workpiece.
Tailstock: Supports the other end of the workpiece, providing stability during machining.
Tool Turret: Holds multiple cutting tools that can be automatically rotated into position for machining operations.
Control Panel: Interface for programming the CNC machine and monitoring its operation.
Chip Conveyor: Removes chips and swarf (metal shavings) from the machining area.
Functions
Turning: Rotating the workpiece while a cutting tool removes material to create cylindrical shapes.
Facing: Cutting a flat surface perpendicular to the axis of rotation.
Boring: Enlarging existing holes or creating new ones with a single-point cutting tool.
Thread Cutting: Creating external or internal threads on the workpiece.
Grooving: Cutting narrow channels or grooves along the length of the workpiece.
Applications
Automotive Industry: Manufacturing of engine components, shafts, gears, and other precision parts.
Aerospace Industry: Producing aircraft components such as landing gear, hydraulic cylinders, and turbine shafts.
Medical Equipment: Fabrication of surgical instruments, prosthetic limbs, and other medical devices.
General Engineering: Creating a wide range of components for various industries, including valves, fittings, and hydraulic cylinders.
Tool and Die Making: Manufacturing molds, dies, and tooling used in the production of other parts.
