Description

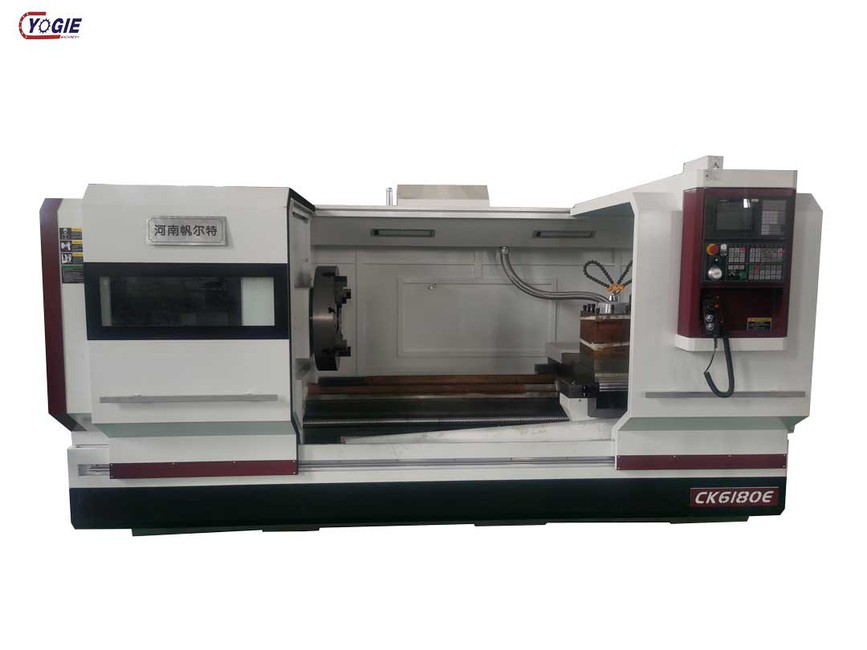

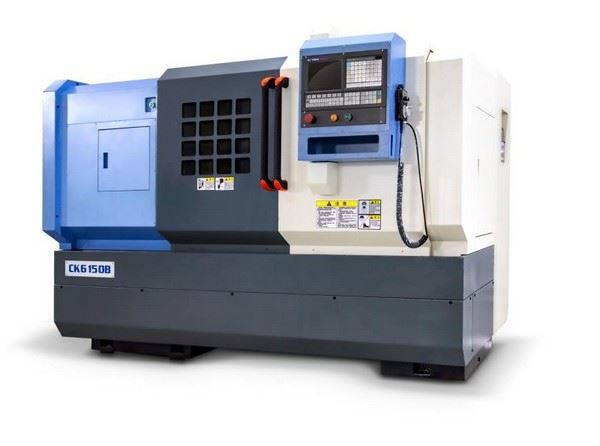

A CNC horizontal lathe is a machining tool used to shape cylindrical pieces of material. The "horizontal" aspect refers to the orientation of the lathe bed and spindle, which are positioned horizontally. This setup allows for efficient turning operations on long, cylindrical workpieces. The CNC aspect means that the lathe is controlled by a computer, which precisely dictates the movements of the cutting tool to create the desired shape and dimensions on the workpiece. These machines are widely used in manufacturing for tasks such as cutting, drilling, facing, and turning operations with high precision and repeatability.
parameters of cNC horizontal lathe
| Item | CK6163 | CK6180 | CK61100 |
| Maximum turning diameter on the bed(mm) | 630 | 800 | 1000 |
| Maximum turning diameter of X-direction pallet (mm) | 350 | 500 | 660 |
| Maximum workpiece length(mm) | 1000/1500/2000/3000 | 1000/1500/2000/3000 | 1500/2000/3000 |
| Length of bed rail(mm) | 550 | 600 | 660 |
| Maximum workpiece load(T) | 2T | 3T | 4T |
| Thru-hole of spindle(mm) | 105 | 105 | 130 |
| Taper of the front end of the spindle hole | Metric120 1：20 | Metric120 1：20 | Metric140 1：20 |
| Maximum stroke of tool holder(mm) | X:530 | X:550 | X:530 |
| Positioning accuracy(mm) | X:0.02/Z:0.03 | X:0.02/Z:0.03 | X:0.030/Z:0.045 |
| Repositioning Accuracy(mm) | X:0.075/Z:0.01 | X:0.075/Z:0.01 | X:0.075/Z:0.015 |
| Workpiece machining accuracy | IT6-IT7 | IT6-IT7 | IT7 |
| Workpiece surface roughness | Ra1.6 | Ra1.6 | Ra3.2 |
| Tailstock sleeve diameter(mm) | 100 | 100 | Φ100 |
| Tailstock sleeve travel(mm) | 250 | 250 | 250 |
| Machine dimensions(mm) | 3700*1820*1780 | 3700*1820*1780 | 3900*2000*1780 |
| Total Weight(kg) | Approx 4200/4600/4800/5000 | Approx 4500/5000/5500/6500 | Approx 5600/6400/7500 |
key components
Bed: The base of the lathe, providing support and alignment for other components.
Headstock: Houses the main spindle, which holds and rotates the workpiece.
Chuck or Collet: Holds the workpiece securely in place during machining.
Tool turret or Toolpost: Holds the cutting tools and moves them into position for machining operations.
Tailstock: Supports the other end of the workpiece and may contain a center for additional support.
Guideways: Provide linear motion for the tool turret and tailstock, ensuring precise movement during machining.
Control System: Includes the CNC controller, which interprets programming instructions and coordinates the movement of the machine components.
Coolant System: Supplies coolant to the cutting zone to lubricate the tool and workpiece, reduce heat, and remove chips.
Configuration features
Equipped with a standard GSK980TC3 bus system and a 17-bit high-power absolute feed servo, it combines high precision and high efficiency for superior performance.
The entire machine features a one-piece cast iron bed, ensuring strong structural rigidity and outstanding operational stability.
It is equipped with fully enclosed double sliding door sheet metal protection. The system housing and rotary mechanism have a neat layout, an aesthetically pleasing appearance, and convenient workpiece loading and unloading, preventing oil leakage.
The bed is made of high-quality HT250 cast iron, undergoing secondary tempering and aging treatment to achieve a hardness of HRC55-62, ensuring good precision retention, wear resistance, and durability.
The spindle reduction mechanism features a manual three-speed transmission, paired with an 11KW high-adaptability frequency converter, achieving a maximum speed of 1600rpm. This allows for easy switching between heavy cutting and finishing conditions, providing excellent cutting performance and strong machining adaptability.
what can it process?
CNC horizontal lathes can machine rotating parts such as shafts, discs, flanges, bushings, pins, and threads, performing processes including external turning, internal drilling, end facing, tapering, arc machining, internal and external threading, and chamfering/grooving.
They are widely used in machinery manufacturing, construction machinery, automotive parts, bearing manufacturing, metallurgy and mining, agricultural machinery, hydraulics and pneumatics, aerospace, and hardware fittings, and are suitable for machining precision non-standard parts and mass-produced standard parts.
