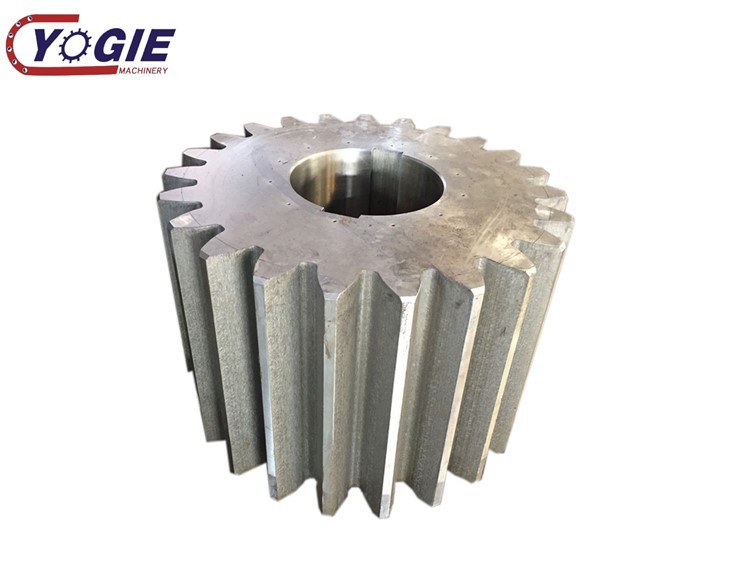

Big Spur Gear

A big spur gear is a type of gear that has teeth cut straight and parallel to the gear's axis. "Spur" refers to the arrangement of these teeth. A big spur gear simply means that the gear is larger in size compared to others, often implying a gear with a larger diameter.

Send Inquiry

Description

Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of big spur gear in China. Please feel free to buy cheap big spur gear for sale here from our factory. All customized products are with high quality and competitive price.

Products Description

A big spur gear is a cylindrical gear with straight teeth that run parallel to its axis. It is used for transmitting power and motion between parallel shafts, providing functions such as speed reduction or increase, torque generation, and direction change.

spur gear wheel 2

machining

spur gear wheel 1

Big spur gear processing generally starts with cutting to obtain a blank;

then forging is performed to improve material properties;

followed by rough machining to remove most of the excess;

then heat treatment is performed to increase hardness and strength;

then fine machining of the tooth shape is performed to ensure accuracy;

finally, surface treatment such as quenching, nitriding, etc. is performed to enhance wear resistance and corrosion resistance.

Contact now

Common materials of gear

1. Steel gears
Steel gears are one of the most commonly used gear materials, with the main features of high strength, good wear resistance, high hardness and good machinability. Depending on the working conditions, the type of steel used is also different. For example, gears made of low carbon steel are suitable for low speed and light load conditions, while high-strength steel is suitable for high speed and heavy load conditions. In addition, gears that have been carburized or surface hardened can increase their service life.

2. Cast iron gears
Cast iron gears are also one of the commonly used gear materials, mainly divided into gray cast iron and ductile iron. Gray cast iron gears have low manufacturing process costs, are easy to process, and have good shock absorption performance, but their strength, hardness and wear resistance are not as good as steel gears. Ductile iron gears are worse than gray cast iron gears in strength, hardness, wear resistance, etc., but the cost is relatively high.

3. Copper alloy gears
Copper alloy gears are a gear material with high wear resistance and strength. The high hardness, wear resistance and thermal conductivity of copper alloys make them suitable for use in high speed and heavy load conditions, and they have high corrosion resistance and low friction coefficient. Among them, copper-tin-phosphorus alloy gears are the most commonly used copper alloy gears and can be used for high-speed and high-load helical gears.

Test

Dimension detection: Use calipers, micrometers and other measuring tools to measure the dimensions of the tooth top circle, tooth root circle, module, tooth width, etc. to ensure that they meet the design requirements.

Hardness detection: Use Rockwell and Brinell hardness testers to measure the hardness of the tooth surface and tooth core to see whether it reaches the specified hardness value after heat treatment.

Material detection: Determine the material composition and structure through metallographic analysis and chemical element analysis to ensure that it meets the standards for selected materials.

Flaw detection: Use magnetic powder, penetration or ultrasonic flaw detection methods to check whether there are cracks and other defects on the surface and inside of the gear.
