Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of forged transmission spline shaft in China. Please feel free to buy cheap forged transmission spline shaft for sale here from our factory. All customized products are with high quality and competitive price.
Products Description

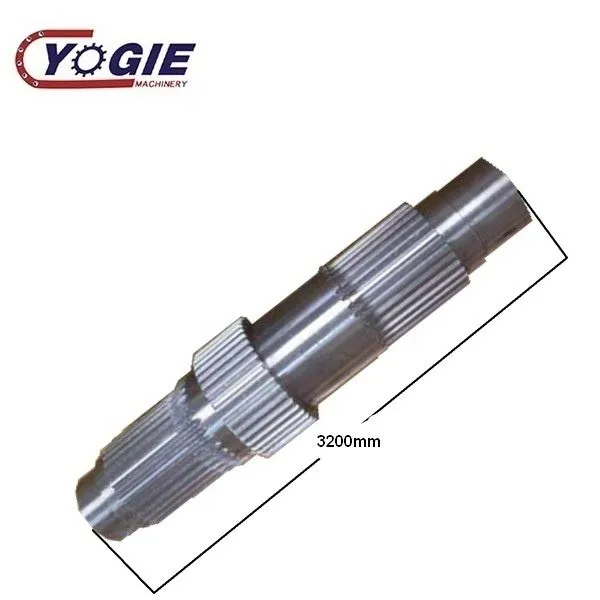

Forged spline shaft is the mechanical parts that can support rotation components, and rotate together to transfer movements, torque or bending moment, Alloy steel after heat treatment, nitriding quenching treatment to reach the gear strength, precision gear shaft after gear grinding to reach the accuracy requirements, trilinear coordinates measuring machine to check accuracy.
features
Splines: The shaft features a series of ridges or teeth, known as splines, along its length. These splines are designed to mesh with complementary grooves or teeth on another component, enabling a secure connection.
Material: Spline shafts are typically made from materials that offer a balance of strength, durability, and resistance to wear. Common materials include alloy steels or other high-strength alloys.
Surface Finish: The surface of the spline shaft is often carefully finished to ensure smooth engagement with mating components, reducing friction and wear during operation.
Precision: Spline shafts are manufactured with high precision to maintain tight tolerances. This precision is crucial for ensuring smooth and efficient power transmission.
Length and Diameter: The dimensions of the spline shaft, including its length and diameter, are determined by the specific requirements of the transmission system it is intended for.
Heat Treatment: Some spline shafts undergo heat treatment processes to enhance their hardness and resistance to wear, ensuring a longer service life.
functions
Torque Transmission: The primary function of a transmission spline shaft is to transfer torque from one component to another within a transmission system. This is crucial for the rotation and operation of machinery or vehicles.
Rotational Synchronization: The splines on the shaft mesh with corresponding features on another component, such as gears or clutches. This ensures the synchronized rotation of interconnected parts, facilitating smooth and efficient operation.
Power Distribution: Spline shafts are commonly used in various applications, including automotive transmissions, industrial machinery, and power take-off (PTO) systems. They play a key role in distributing power from the source to different parts of the system.
Connection and Disconnection: Spline shafts allow for a reliable connection and disconnection between components, providing a means for engaging and disengaging power transmission as needed.
Absorption of Axial Loads: In some applications, spline shafts are designed to absorb axial loads, helping to withstand forces acting along the axis of the shaft during operation.
Versatility: Spline shafts can be adapted to different transmission systems and configurations, making them versatile components in a wide range of mechanical applications.
Summary
In summary, the transmission spline shaft serves as a critical component in power transmission systems, facilitating the efficient transfer of torque, rotational synchronization, and reliable connection and disconnection between mechanical components. Its features are designed to ensure durability, precision, and effective power distribution in various industrial and automotive applications.
|
Product name |
Spline shaft |
|
Material |
35CrMo |
|
Brand |
YOGIE |
|
Structure |
Forging |
|
Process |
Lathing, milling, grinding, drilling |
|
Heat treatment |
mechanical property up to FB12007 after Quenching and tempering |
|
Max.diameter |
900mm |
|
Max.length |
4913mm |
|
Max.tolerance |
±0.2 |
|
Weight |
484kg |
|
Certificate |
ISO |
|
Specification |
According to drawings |
|
Package |
Seaworthy packing |
|
Delivery time |
15-30 days |
|
Certification |
ISO9001-2008 |
★Company superiority★
Our equipment
Our test
★Advantages★
1. Large diameter of shaft ends, long splines
2. High precision, up to 0.01mm
3. Splines are uniformly distributing, and the precision is up to 0.001mm
★About us★
Luoyang Yujie Industry &Trade Co.Ltd located in Luoyang City, one of the main heavy industrial bases in China. We specialize in the production of bearings, nonstandard machinery parts, machine tools. For the nonstandard machine parts, we can produce gears, shafts, sprockets, molds, rollers, pulley, mining machine parts, etc as per customer drawing and requirements. For the machine tools, we offer CNC vertical machine center, CNC horizontal lathe, CNC gantry boring and milling machine, CNC floor type boring, and milling machine.
