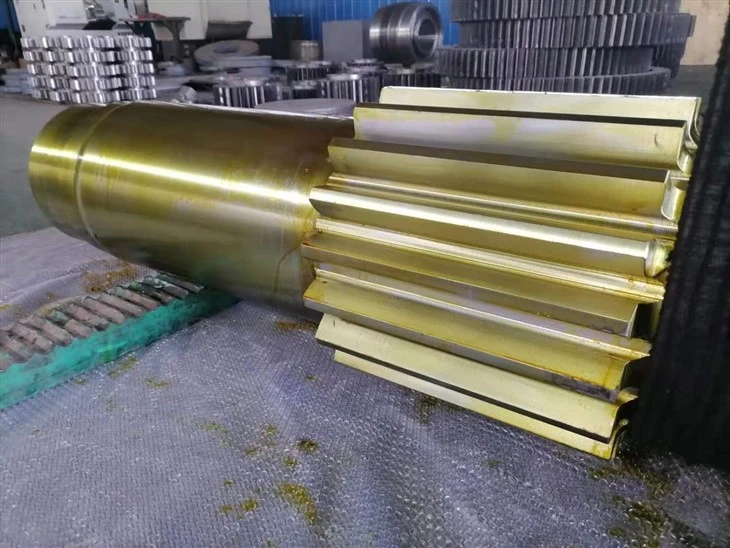

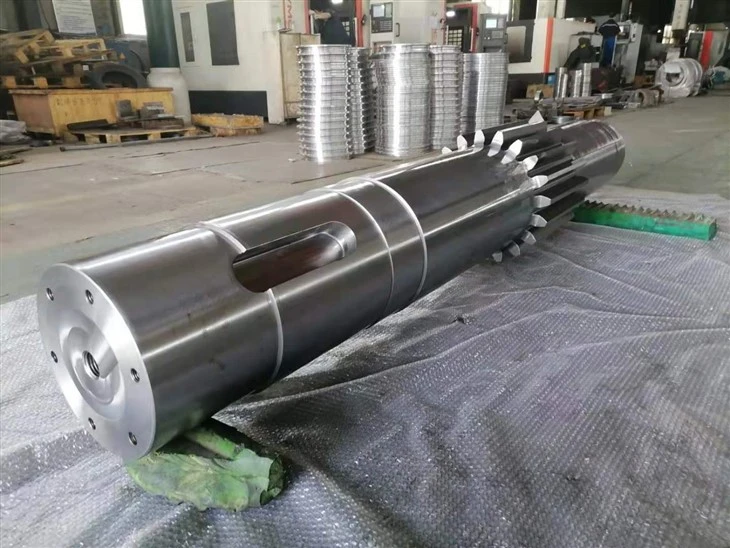

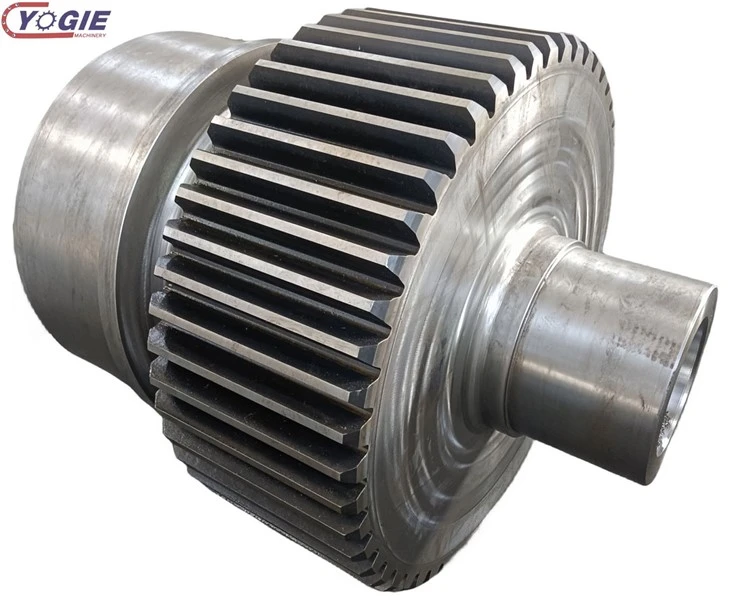

Spur Gear Shaft









Contact now



Industrial Machinery:



Machine Tools: Spur gear shafts are utilized in machine tools such as lathes and milling machines for transmitting power to the cutting tools and controlling the rotational speed.

Conveyor Systems: In manufacturing and material handling, spur gear shafts are employed in conveyor systems to drive and control the movement of goods along the production line.



Power Generation:



Wind Turbines: Spur gear shafts are used in the gearbox of wind turbines to convert the low-speed, high-torque rotation of the blades into the high-speed rotation required by the generator.

Hydroelectric Power Plants: Spur gears can be part of the power transmission systems in hydroelectric plants, facilitating the conversion of rotational motion into electrical power.



Aerospace:



Actuation Systems: Spur gear shafts are used in aerospace applications, such as in actuation systems for controlling the movement of flaps, landing gear, and other components in aircraft.



Construction Equipment:



Excavators and Bulldozers: Spur gear shafts are employed in construction equipment for controlling the movement of various components, including the bucket in excavators and the blade in bulldozers.



Marine Applications:



Propulsion Systems: Spur gear shafts are used in marine propulsion systems to transmit power from the engine to the propeller, controlling the speed and direction of the vessel.



Mining Equipment:



Crushers and Mills: Spur gear shafts can be found in mining equipment like crushers and mills, where they play a role in crushing and grinding operations by controlling the rotational speed of components.



Printing Industry:



Printing Presses: Spur gear shafts are used in printing presses to control the movement of rollers and other components, contributing to precise and synchronized printing processes.



Textile Industry:



Textile Machinery: Spur gear shafts are utilized in textile machinery for controlling the movement of rollers, spindles, and other components involved in the weaving and spinning processes.







Material Selection: Start by selecting a suitable material for the shaft. Common materials for spur gear shafts include alloy steels, stainless steel, or carbon steel, depending on the application's requirements.



Cutting and Shaping: The first step is to cut a blank of the chosen material to the desired length. Then, use machining processes such as turning or milling to shape the blank into the initial shaft form, including the mounting area for the gears.



Gear Cutting: The gear teeth are cut onto the shaft using specialized gear-cutting machinery.



The most common methods for cutting spur gears are:

 a. Hobbing:  b. Gear Shaping:



Heat Treatment: Heat treat the gear shaft to improve its hardness, strength, and durability. Common heat treatment processes include quenching and tempering.



Finish Machining: After heat treatment, perform finish machining to achieve the required dimensions and surface finish. This step can include additional turning, milling, and grinding operations.



Keyway Cutting: If the spur gear shaft requires a keyway to secure it to other components, a keyway cutting process is performed using a broaching machine or milling machine.



Quality Control: Rigorously inspect the gear shaft at various stages of production to ensure that it meets the specified tolerances, gear tooth profile accuracy, and quality standards. Use tools like micrometers, calipers, and coordinate measuring machines (CMMs) for this purpose.



Assembly: If the spur gear shaft is part of a larger assembly, it will be assembled with other components such as bearings, seals, or coupling elements.



Balancing: For precision applications or high-speed gear shafts, dynamic balancing may be necessary to minimize vibration and ensure smooth operation.



Surface Treatment: Apply any necessary surface treatments, such as plating or coating, to enhance corrosion resistance or other desired properties.
