Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of high precision sugar mill roller in China. Please feel free to buy cheap high precision sugar mill roller for sale here from our factory. All customized products are with high quality and competitive price.
Products Description
The impurity removal roller of the sugar factory is also called sugar mill roller. It is used in the equipment of the sugar factory for the pretreatment of raw materials (sugar cane or sugar beet). Its main function is to remove impurities, separate mud, stones, weeds, metal chips and sugar cane roots, and at the same time improve the cleanliness of the raw materials. It is a grooved roller.

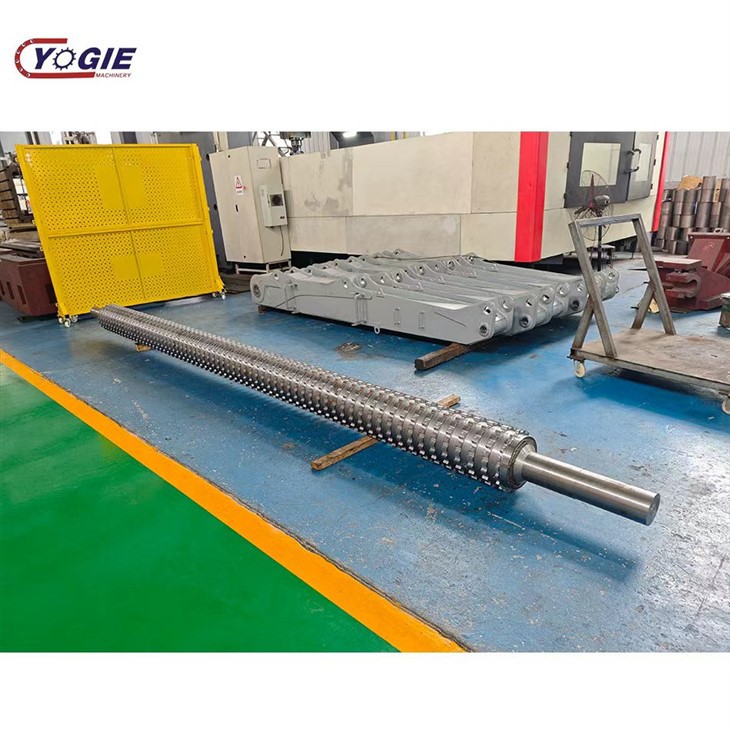

Products details and show

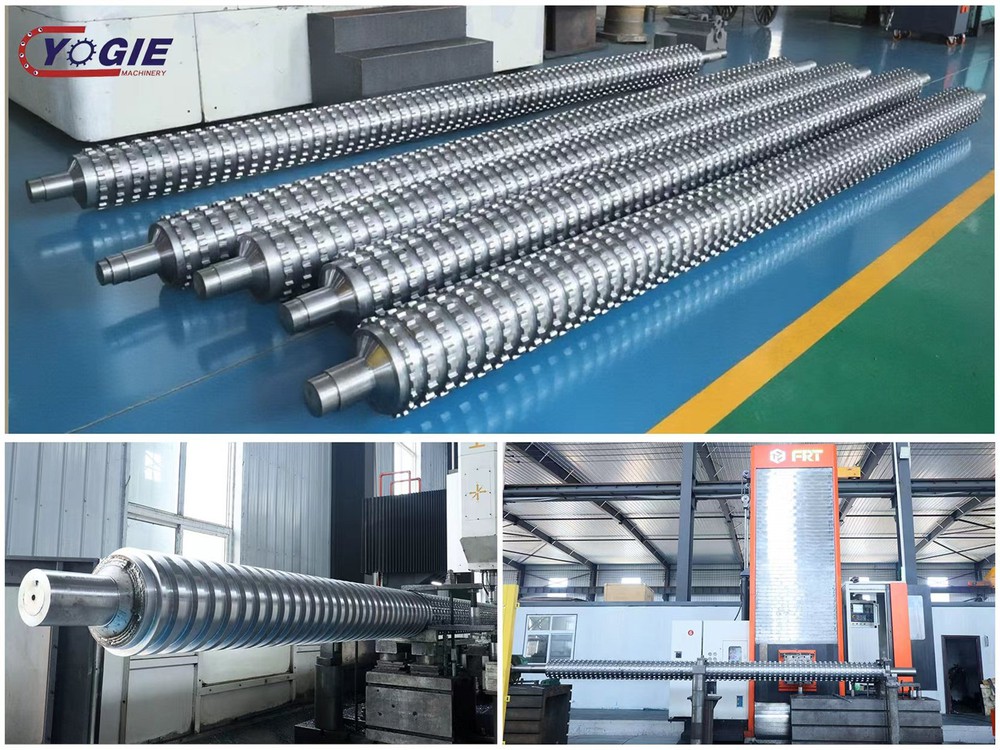

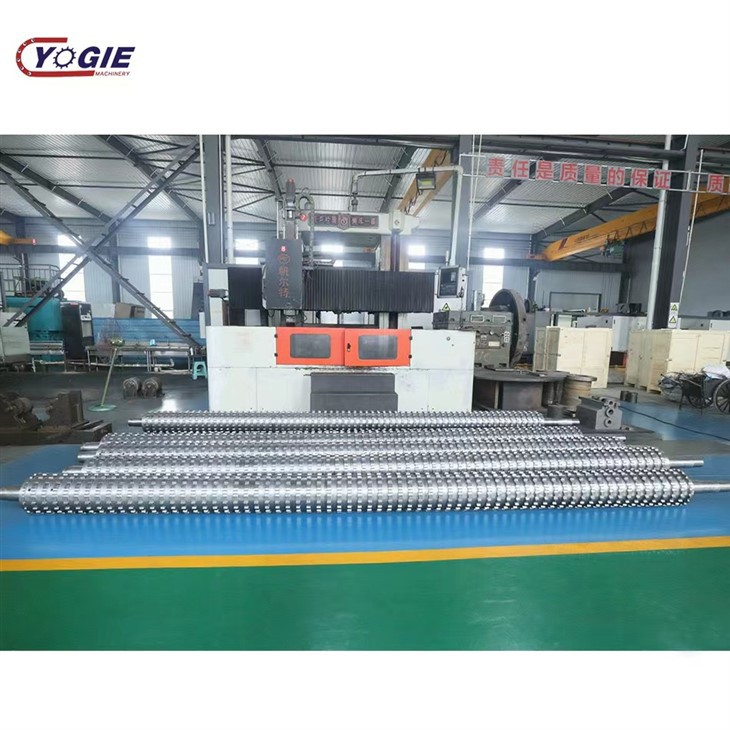

Machining prcessing of suger mill roller
First, we forge the rollers for the sugar mill using 40Cr steel.
Second, to increase the roller's toughness and hardness, it undergoes conditioning.
Third, it undergoes turning, slot milling, and quenching.
Finally, the surface undergoes rust-proofing treatment.
How does it work
Sugar mill rollers are a critical component in the sugar milling process, and their primary function is to extract juice from sugar cane. Here's how they work:
1.Sugar cane is fed between two or more rollers that rotate in opposite directions.
2.As the sugar cane passes between the rollers, it is crushed and the juice is extracted.
3.The pressure exerted by the rollers on the sugar cane helps to break down the fibers and release the juice.
4.The juice is collected in a container and processed further to remove impurities and produce sugar.
5.The remaining fiber, called bagasse, is used as fuel in the sugar mill boilers to generate steam for the milling process.
6.The sugar mill rollers need to be carefully maintained and repaired as needed to ensure their proper functioning.
Shapes of suger mill rollers
Cylindrical: This is the most common shape of sugar mill roller. It is cylindrical in shape with evenly spaced grooves around its circumference. The grooves help to grip the sugar cane and facilitate the juice extraction process.
Conical: Conical sugar mill rollers have a tapered shape, with the larger end at the top and the smaller end at the bottom. They are used in some milling systems to increase the efficiency of juice extraction.
Spherical: Spherical sugar mill rollers are spherical in shape and are used in some milling systems to provide a greater surface area for the juice extraction process.
Knurled: Knurled sugar mill rollers have a textured surface that helps to grip the sugar cane and improve the efficiency of juice extraction. The texture can be in the form of a series of small bumps or grooves.
Grooved: Grooved sugar mill rollers have grooves around their circumference that help to grip the sugar cane and facilitate the juice extraction process.
About us
Luoyang Yujie Industry &Trade Co.Ltd located in Luoyang City, one of the main heavy industrial bases in China. We specialize in the production of nonstandard machinery parts. For the nonstandard machine parts, we can produce gears, shafts, sprockets, molds, rollers, pulley, mining machine parts, etc as per customer drawing and requirements. As a manufacturer, we strictly control the quality of our products and their testing before sale and after sale.
Our advantage
1.We offer a One-stop service From raw material organization to processing production and assembly
2.We have a professional engineer team and a strict quality control system to guarantee the quality of the products.
3.We have many CNC advanced equipment to ensure the precision of the products
