Ball Mill Drum

The ball mill drum is cylindrical, formed by rolling and welding steel plates, with end covers at both ends. It has sufficient strength to withstand the gravity and impact of the medium and materials. The surface is often treated with wear resistance and is widely used in material processing in mining, building materials and other industries.

Send Inquiry

Description

Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of ball mill drum in China. Please feel free to buy cheap ball mill drum for sale here from our factory. All customized products are with high quality and competitive price.

basic Description

The ball mill drum is cut from steel plates according to the customer's desired diameter and length, then rolled into a cylinder using a large plate rolling machine. The joints are then welded and heat treated for stress relief. Finally, alignment is inspected and ultrasonically tested to ensure the absence of cracks. After processing, the barrel surface is derusted and painted. Large ball mill barrels are constructed from Q235 low-alloy, high-strength steel, a material that welds easily and offers excellent value for money.The process of ball mill end cover is casting, and the material is ZG230-450, ZG270-500. In addition, heat treatment, turning and drilling are also required.

imgae of ball mill drum

ball mill drum 2

Parameters

Model	Diameter (mm)	Length (mm)	Effective Volume (m³)	Max.Ball Loading (t)	Speed (r/min)	Main Motor (KW)
1530	1500	3000	4.5	8	30	90
1545	1500	4500	6.7	12	30	132
1830	1830	3000	6.7	12	26.6	130
1845	1830	4500	10.5	19	26.8	180
2130	2100	3000	9.2	16	23.8	210
2136	2100	3600	11	20	23.8	210
2145	2100	4500	13.8	25	23.8	280
2230	2200	3000	10	18.5	21.3	210
2245	2200	4500	15.2	28	21.3	280
2430	2400	3000	12	22	21.3	245
2436	2400	3600	14	26	21.3	280
2445	2400	4500	17.8	30	21.6	320
2460	2400	6000	24	44	21.7	480
2736	2700	3600	18	33	20.7	400
2740	2700	4000	20.6	38	20.7	400
2745	2700	4500	23.2	43	20.7	480
2750	2700	5000	25.8	48	20.6	500
2760	2700	6000	31	57	20.6	630
3040	3000	4000	25.7	47	19	500
3064	3000	6400	40.2	74	19	800
3245	3200	4500	32	59	18.2	630
3254	3200	5400	38	73	18.2	800
3270	3200	7000	50.6	93	18.2	1250
3645	3600	4500	40.8	75	18	1000
3650	3600	5000	46	86	18	1250
3660	3600	6000	54	102	18	1250
3685	3600	8500	79	131	18	1800
4060	4000	6000	70	126	16.9	1500
4067	4000	6700	78	136	16.9	1600
4361	4270	6100	80	144	15.7	1850
4564	4500	6400	95	172	15.6	2000
5030	5030	6400	120	216	14.4	2600
5083	5030	8300	152	266	14.4	3300
5585	5500	8500	187	338	13.8	4500

CNC Machining Service

ball mill drum 3

Contact now

During the initial assembly phase, the cylinder's machining dimensions must be verified, along with the flatness of the flange surfaces between the end cap and the cylinder, and the coaxiality of the cap bearing hole with the cylinder axis. Next, after hoisting, sealing material is placed in the flange sealing grooves. High-strength bolts are inserted, nuts are installed, and tightened until the flange surfaces are in contact. Finally, coaxiality verification and a seal test are performed.

ball mill parts Related products

ball mill related product

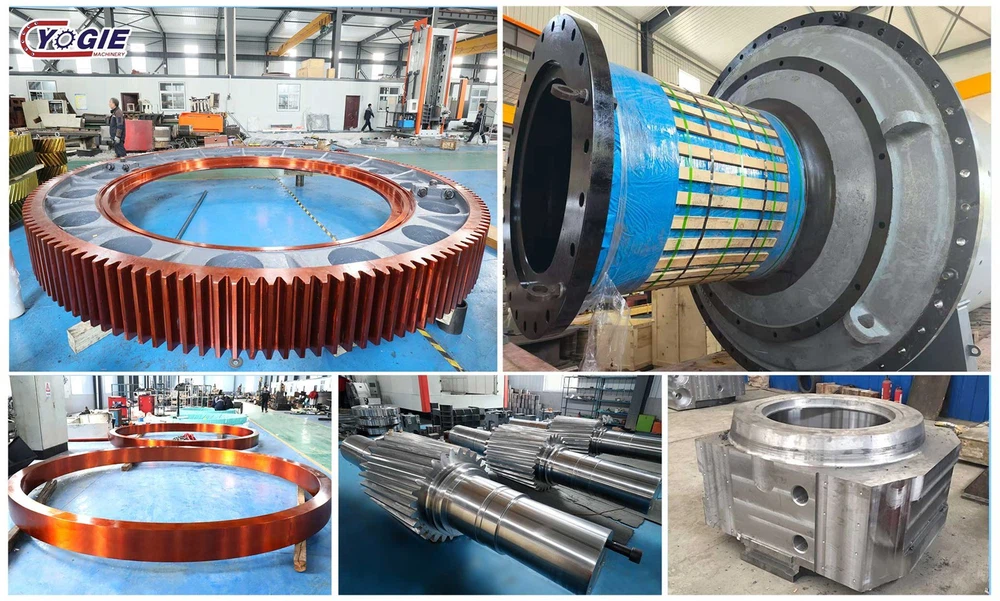

As a professional ball mill manufacturer, we specialize in producing not only the ball mill cylinder but also supporting parts. Our ring gears are hardened to a tooth profile accuracy of Grade 7 or higher, ensuring efficient transmission. Our wheel tyres are made of rare earth wear-resistant cast iron, achieving a hardness of HRC50-55 for uniform load-bearing performance. Our support roller liners are custom-made to suit the material, exceeding industry standards by 30%. Our bearing seats are integrally cast and equipped with double-row bearings, while our gear shafts are carburized and hardened for impact resistance, ensuring comprehensive and stable equipment operation.
