Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of trunnion roller for heavy machinery and equipment in China. Please feel free to buy cheap trunnion roller for heavy machinery and equipment for sale here from our factory. All customized products are with high quality and competitive price.

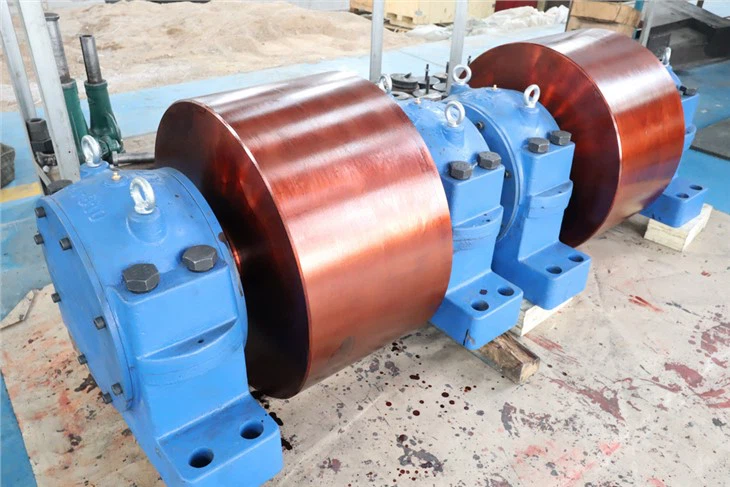

Trunnion roller for heavy machinery and equipment
Products Description
A trunnion roller is a component used in various mechanical systems to provide support and facilitate movement between two parts. It consists of a cylindrical roller attached to a trunnion, which is a stationary shaft or pivot point that allows the roller to rotate freely.Trunnion rollers are commonly used in heavy machinery and equipment, such as cranes, excavators, and conveyor systems.
Products show
Machiery processing of trunnion roller
►Material selection: The first step in the manufacturing process is to select the appropriate material for the trunnion roller. This may include steel, stainless steel, or other materials depending on the specific application.
►Turning and milling: The roller is typically machined using a lathe or milling machine to create the cylindrical shape and dimensions required. This involves removing excess material from a solid block of metal to create the desired shape.
►Heat treatment: Once the roller is shaped, it may be subjected to heat treatment to increase its strength and durability. This process involves heating the metal to a high temperature and then cooling it rapidly to create a hardened surface.
►Grinding and finishing: After heat treatment, the roller may undergo further machining and grinding to achieve a smooth surface finish and precise dimensions. This may involve using specialized grinding machines and other finishing tools.
►Assembly: Once the individual components of the trunnion roller are complete, they may be assembled using welding , hot charging or other joining techniques to create the final roller.
Functions of trunnion rollers
Support: The trunnion roller provides support and stability to a rotating or oscillating component, such as a drum, cylinder, or shaft. It is designed to bear the weight and radial forces exerted by the rotating equipment.
Load Distribution: The trunnion roller helps distribute the load evenly across its surface, reducing localized stress concentrations. This prevents excessive wear and damage to the equipment and ensures smooth operation.
Rotation/Translation: In certain systems, the trunnion roller allows for both rotational and translational movements. It facilitates the rotation or movement of the supported component, enabling various operations such as rotation of a kiln or movement of a conveyor belt.
Axial Alignment: The trunnion roller helps maintain proper axial alignment of the rotating component. It ensures that the component rotates or moves along a predefined path or axis, preventing misalignment and potential damage to the system.
Lubrication: Trunnion rollers often incorporate lubrication mechanisms to reduce friction and wear. Lubricants such as grease or oil are applied to the roller surface or within the roller itself to ensure smooth rotation and minimize heat generation.
Shock Absorption: In some applications, trunnion rollers are designed to absorb shocks or vibrations generated during operation. They act as a buffer, reducing the impact on the supported component and the overall system.
Alignment Adjustment: Trunnion rollers can often be adjusted to achieve precise alignment and positioning of the supported component. This allows for fine-tuning of the system and ensures optimal performance.
Summary
Overall, the trunnion roller plays a critical role in supporting, stabilizing, and facilitating the movement of rotating or oscillating components in various mechanical systems. It enables smooth operation, load distribution, and alignment, contributing to the efficiency and longevity of the equipment.
Features and advantages of trunnion roller
Trunnion rollers, also known as trunnion wheels or trunnion support rollers, are specialized components used in various industrial applications, such as rotary kilns, dryers, ball mills, and other heavy machinery. These rollers play a critical role in supporting and guiding rotating equipment. Here are some features and advantages of trunnion rollers:
Description
●Load Bearing: Trunnion rollers are designed to bear heavy loads and provide support for rotating equipment. They help distribute the weight evenly, reducing stress on other components and promoting smooth operation.
●Enhanced Stability: By offering stable support, trunnion rollers help minimize vibrations and maintain the alignment of the rotating equipment. This stability is crucial for maintaining precision and reducing wear and tear.
●Low Friction: Trunnion rollers are typically constructed with materials that have low friction coefficients, such as hardened steel or specialized alloys. This reduces the amount of energy required for rotation and minimizes power losses.
●Long Service Life: Trunnion rollers are built to withstand heavy loads and harsh operating conditions. They are often manufactured with high-quality materials and undergo stringent quality control measures, ensuring durability and a long service life.
●Easy Maintenance: Trunnion rollers are designed for easy maintenance and replacement. They are typically equipped with lubrication systems that help reduce friction and wear. This allows for efficient inspection, lubrication, and replacement of components, minimizing downtime.
●Customizable Designs: Trunnion rollers can be customized to meet specific requirements. Manufacturers can design them in various sizes, load capacities, and configurations to suit the specific application and equipment they will be used with.
●Cost-Effective: Trunnion rollers provide a cost-effective solution for supporting and guiding rotating equipment. Their robust design and long service life reduce the need for frequent replacements or repairs, resulting in cost savings over time.
●Versatility: Trunnion rollers are used in a wide range of industrial applications, including cement and mining industries, chemical processing, and power generation. Their versatility and adaptability make them suitable for different types of equipment.
Summary
Overall, trunnion rollers offer critical support, stability, and longevity to rotating equipment, ensuring reliable and efficient operation in heavy-duty industrial environments.
Application of trunnion roller
The primary function of a trunnion roller is to support the weight and facilitate the movement of a rotating or pivoting part. It helps distribute the load evenly, reducing stress and wear on the machinery. Trunnion rollers are commonly used in various applications, including:
Rotary kilns: Trunnion rollers support and guide the kiln's rotating cylinder, which is used in industries such as cement production, mineral processing, and chemical manufacturing.
Ball mills: Trunnion rollers are used to support and rotate the drum of a ball mill, which is a cylindrical container filled with grinding media. Ball mills are commonly used in ore processing, cement production, and other industries.
Conveyor systems: Trunnion rollers are employed in conveyor systems to support and guide conveyor belts or other moving components.
Heavy equipment: Trunnion rollers can be found in large machinery like cranes, excavators, and material handling equipment, where they help support and guide rotating or pivoting parts.
Product Test
►Dimensional inspection:
This test involves measuring the dimensions of the machined part to ensure that it meets the required specifications and tolerances.
►Hardness testing:
This test involves measuring the hardness of the machined part to ensure that it meets the required strength and durability requirements.
►Material analysis:
This test involves analyzing the material properties of the machined part to ensure that it is the correct material and meets the required standards.
►Non-destructive testing (NDT):
This type of testing involves using methods such as ultrasonic testing, magnetic particle inspection, or dye penetrant inspection to detect defects in the machined part without causing damage.
►Performance testing:
This test involves testing the performance of the machined part in the actual application to ensure that it meets the required performance requirements.
►Magnetic particle inspection (MPI):
This method uses magnetic fields and iron particles to detect surface and near-surface defects in the gear shafts, such as cracks or inclusions. The gear shaft is magnetized and then iron particles are applied to the surface. Any defects will attract the particles and produce a visible indication.
FAQ
Q: Are you trader or factory?
Q: What kind of service can you provide?
Q: Will weld inspection and paint thickness inspection be performed?
A: Yes. We also support third-party testing.
