Products Description

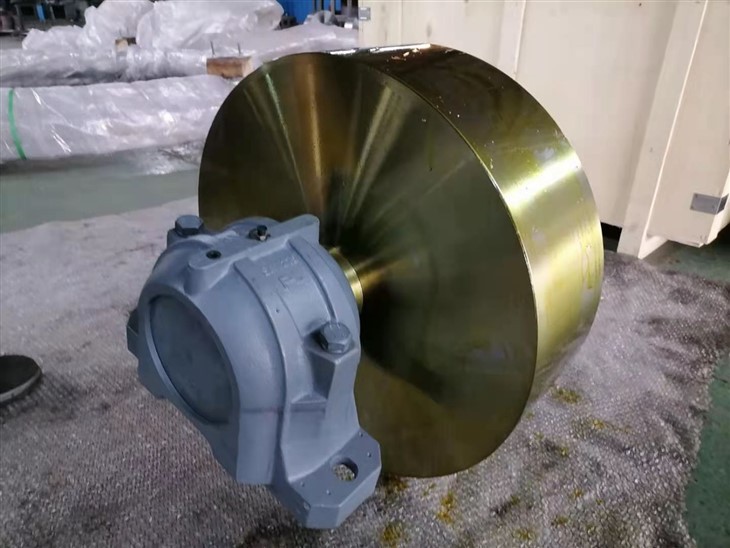

kiln support roller
A kiln support roller is an essential component in industrial rotary kilns used for processes such as cement production, lime calcination, and other thermal treatment applications. Rotary kilns are large, rotating cylinders that generate heat to carry out various processes on materials like minerals, ores, and chemicals. The support roller plays a critical role in maintaining the stability and smooth operation of the rotary kiln.
features of kiln support rollers
Machinery processing
Machining the Base Material
Turning: The initial step involves turning the cylindrical base material to achieve the required dimensions and smooth surface finish.
Facing: The roller's ends are faced to ensure they are perpendicular to the roller's axis. This helps in achieving proper contact between the roller and the kiln tires.
Heat Treatment
Annealing: The roller is subjected to annealing, a heat treatment process that helps relieve internal stresses and improves the material's mechanical properties.
Quenching and Tempering: This process involves heating the roller to a high temperature and then rapidly cooling it to increase its hardness and strength. Subsequent tempering reduces brittleness and improves toughness.
Machining Mounting Holes and Keyways
Drilling and Milling: Mounting holes for attaching the roller to the kiln are drilled and/or milled, along with any necessary keyways for proper alignment.
Quality Control
Ultrasonic Testing (UT): UT is often used to detect any internal defects or cracks that might compromise the roller's structural integrity.
Dimensional Inspection: Precise measurements are taken to ensure the roller meets the specified dimensions and tolerances.
Surface Finish Inspection: The roller's surface finish is inspected to ensure it meets the required smoothness.
Assembly
Bearing Installation: High-quality bearings are installed into the bearing housings on the support roller.
Lubrication: Proper lubrication mechanisms are put in place to ensure the smooth rotation of the support rollers during kiln operation.
Maintenances of kiln support roller
1. Regularly check and maintain the support wheel: During the use of the rotary kiln support wheel, the support wheel must be checked and maintained regularly to ensure the normal operation of the support wheel. In particular, the sealing of the support wheel and the lubrication of the bearing should be checked and maintained.
2. Regularly replace the wheel hub: During the use of the rotary kiln support wheel, the wheel hub will lose the support capacity of the internal bearing due to long-term and large-scale wear, resulting in the kiln body no longer rotating smoothly. Therefore, the wheel hub must be replaced regularly to ensure the normal operation of the support wheel.
3. Maintain an appropriate gap between the wheel and the shaft: The gap between the wheel and the shaft of the rotary kiln support wheel must be maintained appropriately. If the gap is too small, the wheel shaft is easily squeezed and damaged, and if the gap is too large, uneven force affects the support capacity.
4. Follow the operating procedures: The operator must have certain operating skills and follow the relevant operating procedures to prevent unnecessary operating errors.
5. Avoid overloading the support wheel: Overuse or excessive load should be avoided, otherwise it will affect the life and work efficiency of the support wheel.
FAQ
Q: Are you trader or factory?
Q: What kind of service can you provide?
Q: Will weld inspection and paint thickness inspection be performed?
A: Yes. We also support third-party testing.
Q: Do you support factory inspection?
A: Anytime
Q: Besides manufacturing spare parts for large machinery, what else do you produce?
A: We also manufacture large CNC machine tools and perform equipment upgrades and retrofits.
