Rotary Table Bearing YRT260

Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of rotary table bearing yrt260 in China. Please feel free to buy cheap rotary table bearing yrt260 for sale here from our factory. All customized products are with high quality and competitive price.

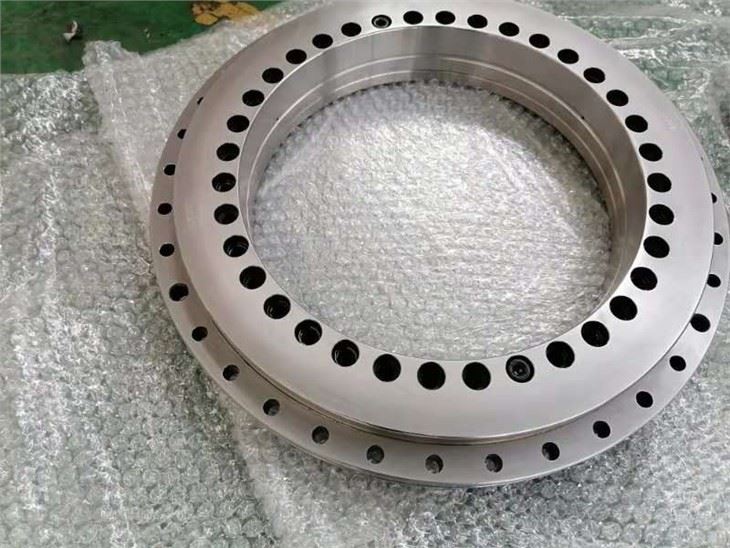

YRT260 turntable bearing is a type of rotating mechanism with outer ring rotation and inner ring support. It is mainly divided into three series: YRT type, YRTS type and YRTM type. These three series bearings have the same installation size, internal structure difference, and similar performance. YRT260 bearings are composed of three rows of rollers (as shown on the right). Two rows of axial rollers ensure stable axial load-carrying capacity. One row of radial rollers ensures that the bearings can withstand radial forces and tilting moments. They are suitable for axial load carrying. The slewing mechanism.





Contact now









Model number

boundary dimensions

Basic load rating(KN)

Limiting speed(grease)

Weight Kg

axial load

radial load

d

D

H

H1

C

D1

J

J1

dynamic

static

dynamic

static

unit:mm

Ca

Coa

Cr

Cor

r/min

YRT260

260

385

55

36.5

18

345

280

365

160

1060

93

290

200

18.3





Model Number

Fixing holes

Pitches

Tightening torque

Frictional torque

Rotation accuracy

Holes of inner ring

Holes of outer ring

Fixing holes

Fixing holes

Extraction thread hole

d1

d2

a

quantity

d3

quantity

G

quantity

Quantity×t

Nm

Nm

μm

mm

mm

YRT260

9.3

15

8.2

36

9.3

33

M12

3

36×10°

34

20

6







Model number	shaft diameter(mm)			roundness(O)	perpendicularity(⊥)	Parallelism (∥)	roughness Ra
	Nominal dimension	upper	lower	t1(μm)	t4(μm)	t4(μm)	Ra(μm)
YRT260	260	0	-0.023	12	8	8	0.8





Model number	housing diameter(mm)			Roundness (O)	perpendicularity(⊥)	Parallelism (∥)	roughness Ra
	Nominal dimension	upper	lower	t1(μm)	t4(μm)	t4(μm)	Ra(μm)
YRT260	385	0.029	-0.007	13	9	9	0.8





The YRT260 turntable bearing consists of a thrust/centre seat, a thrust/centre shaft ring, a thrust washer, two needle roller cage assemblies and a set of centripetal cylindrical rollers. The seat ring and shaft ring have uniform mounting screw holes. This type of bearing has high axial and radial load carrying capacity. High tilt stiffness and extremely high accuracy. Suitable for rotary table, chucks and iron heads as well as bearing arrangements for measurement and experimentation. This type of bearing also has high requirements for the matching equipment parts. When installing, it is necessary to control the tightening torque of the mounting screws.





Q: Is your company trading company or factory?

A: Our company is factory for producing rotary table bearing and cross roller bearing



Q: Where is your factory located?

A: Our factory located in Jianxi Industrial Park,Luoyang,Henan,China



Q: Are there many stock for rotary table bearings in your factory?

A: Yes, we have many stock for rotary table bearings for our regular customers.



Q: How long the delivery for rotary table bearing YRT260 after order confirmed?

A: We have stock for rotary table bearing YRT260 for regular customer, for other orders,the delivery very short, because we have many stock for inner ring and outer ring for rotary table bearing.
