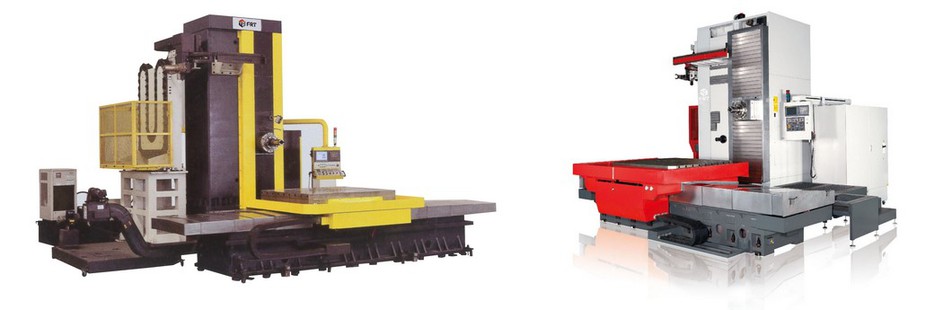

CNC Horizontal Boring Machine

Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of cnc horizontal boring machine in China. Please feel free to buy cheap cnc horizontal boring machine for sale here from our factory. All customized products are with high quality and competitive price.

Contact now

1. Bed and beam: The bed and beam of the horizontal boring machine are the structures that support the main body, and together they form the skeleton of the horizontal boring machine. The bed and beam are generally made of high-strength cast iron materials and have good load-bearing capacity and stability.

2. Spindle box: The spindle box, also known as the boring head box, is the core component of the horizontal boring machine, responsible for driving the boring bar to process the inner hole of the workpiece. The spindle box is generally composed of a motor, a gearbox, a spindle bearing, and a boring bar, and adopts control methods such as hydraulic and pneumatic automatic switching, which is easy to operate.

3. Workbench: The workbench of the horizontal boring machine is the support platform for workpiece processing, and is generally made of high-strength cast iron materials. The workbench can be adjusted horizontally, tilted, and other adjustments to make the workpiece processing more accurate.

4. Hydraulic system: The horizontal boring machine uses a high-pressure hydraulic system to drive the boring head and workpiece lifting and other components to ensure stability and precision during the working process. The hydraulic system is mainly composed of an oil tank, a pump, an oil inlet, an oil return port, etc., and the pressure of the hydraulic system can be adjusted manually or automatically to meet the processing requirements of different workpieces.

5. Electrical control system: The electrical control system of the horizontal boring machine is mainly controlled by PLC (programmable controller), so as to realize the operation control of the horizontal boring machine spindle box, workbench and other components. This control method can make the processing process more automated and convenient.

CNC horizontal boring machines have a variety of high-precision machining functions. First, they can perform boring to machine precise concentric holes on workpieces such as engine blocks and gearboxes; second, they can drill to machine fastener holes or coolant flow holes of different sizes and depths; third, they can perform milling to complete contour and cavity processing to create complex shapes; finally, some models can also use accessories to perform end face processing and surface treatment to generate precise plane mating surfaces, and can also perform thread tapping, and can achieve contour and profiling processing according to pre-programmed paths, which is suitable for complex machining tasks.

The CNC horizontal boring machine can actively perform high-precision boring and milling processing on large box-type parts (such as machine tool spindle boxes and engine cylinder blocks), and can also actively complete the plane milling and hole system processing of large bracket-type parts; at the same time, the inner hole finishing of large annular parts and the end face and bolt hole processing of large flanges can also be completed efficiently by it. For key components such as the base of heavy machinery and large valve housings, it will not only actively implement multi-process integrated processing, but also passively accept the fine cutting of complex contours under its precise control, meeting the processing requirements of large parts with high coaxiality and high position accuracy.
