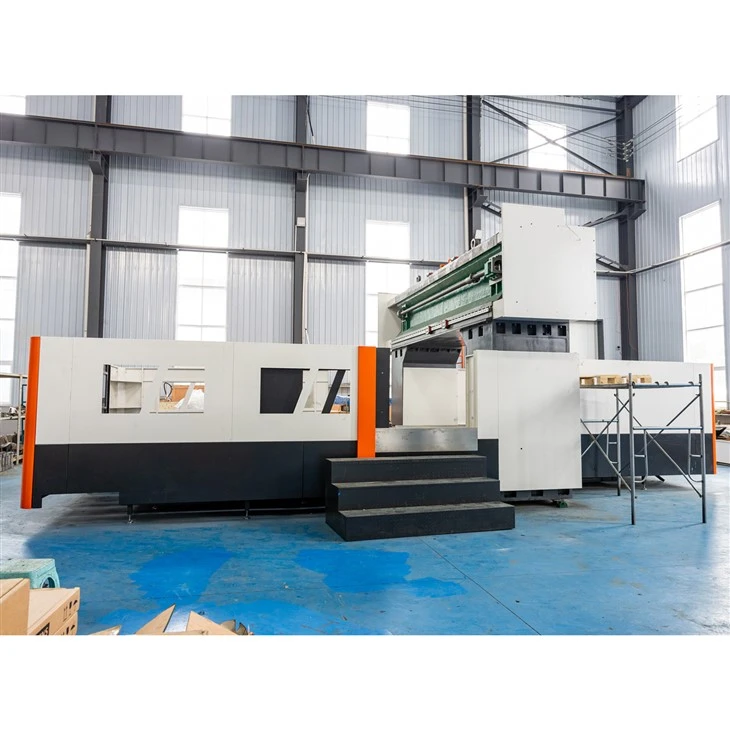

CNC Gantry Milling And Boring Machine

Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of cnc gantry milling and boring machine in China. Please feel free to buy cheap cnc gantry milling and boring machine for sale here from our factory. All customized products are with high quality and competitive price.









CNC Gantry Milling And Boring Machine is a large industrial machine tool that is used to shape and cut metal workpieces. It is a type of milling machine that features a stationary worktable and a bridge-like structure (the gantry) that spans the table and moves back and forth along its length. The gantry supports a milling head that can move vertically and horizontally, allowing it to cut, shape, and drill metal workpieces with a high degree of precision.



Gantry milling and boring machines are often used in heavy industry, such as aerospace, shipbuilding, and automotive manufacturing, where large workpieces must be machined with high accuracy and consistency. These machines are also used in prototyping and research and development, as they are capable of machining complex shapes and intricate designs.



One of the advantages of gantry milling and boring machines is their ability to machine large and heavy workpieces, which can weigh several tons. Another advantage is their high precision, which is achieved through the use of computer-controlled motors and advanced cutting tools. Gantry milling and boring machines are also versatile, as they can be used for a wide range of machining operations, including drilling, boring, milling, and threading.













★★★ Optional full-closed, three-coordinate detection error within 0.01mm   ★★★ Gear head upgrade to high-precision 6000 rpm, capable of rough and fine machining   ★★★ Improve manufacturing accuracy, right angle error is 0.01mm

It adopts the best rectangular ratio copper-containing casting structure, cooperating with Japan Hamada gear and diameter 100mm ball bearing to supply high-precision and silent processing; the long sleeve spindle (300mm) directly goes into the interior of the cavity for internal precision machining   It adopt the "door" type integrated casting design with distribution of well-word grid ribs, high-quality Meehanite casting iron, two electric furnace aging and two vibration aging, which ensure long-term vibration resistant without deformation; it increase the step rail span than the peers ( 850 × 300mm) to ensure processing stability.   The integral ship structure adopt the finite element analysis design and the double wall and ribs integrated into one, to ensure the most stable heavy-duty anti-vibration foundation. Adopting larger specifications of the screw and linear rail than the peer to ensure the high rigidity and accuracy of the machine; The integrated built-in oil-water separation and chip evacuation structure ensures the machine is environmental and economical.   question and answer for linear guide rail and and spindle through coolant     Q:How many linear guides does your gantry milling machine's Y-axis crossbeam have? A:The 3018 model has 2 linear guides, while the 4025 and higher models have 3 linear guides.

Q1: What is the cost difference between the factory-installed spindle through coolant and subsequent modifications?   A: The optional configuration for a new machine is part of the complete machine design, only adding a hollow spindle tie rod, rotary joint, high-pressure pump set, and filter pipeline. The incremental cost is controllable. Subsequent modifications require disassembling the slide/spindle, replacing the tie rod, drilling holes for piping, adding a high-pressure pump station, and modifying the water tank filter. The total cost is usually 30%-70% higher than the factory-installed configuration, and also includes disassembly labor and downtime losses. Even for ordinary gantry mills, if only the internal water system is modified without replacing the spindle, there are still additional costs for parts, machining, and debugging labor.   Q2: Can subsequent modifications achieve the same performance as the original factory configuration?   A: It's difficult to achieve a complete equivalent. The original spindle, ram internal water channels, seals, and piping routing were designed using whole-machine simulation. Later modifications, limited by the original spindle structure, prevented the creation of truly hollow passages in some older spindles, resulting in reduced pressure and flow. Under high-speed conditions, the rotary joints were prone to leakage, and the seal failure rate was higher than the original design. In severe cases, cutting fluid seepage damaged the spindle bearings. For gantry milling machines with accessory milling heads, achieving center-outlet water from the milling head was extremely difficult in later modifications; most could only achieve water outlet from the spindle body.



1, CNC control system standard function

2, Spindle constant temperature system

3, automatic power off device

4, hydraulic unit system

5, cutting fluid unit

6, automatic lubrication system

7, three-color warning light

8, working light

9, hand wheel control box

10, RS-232 interface

11, heat exchanger configuration

12, chip remover and chip bucket

13, Foundation bolts and level adjustment pads

14, controller operation manual and circuit diagram

15, Mechanical Safety Operation Manual

16, precision test table

17, splash protection andmanualdoor

18, a set of mechanical adjustment tools







☆CNC system simens/Mutsubishi/Fanuc/KND

☆Each axis grating device☆Disc magazine /chain magazine

☆Spindle center water output 2-7MPa

☆12000-15000 mechanical spindle

☆Four-axis function

☆Right-angle milling Head







 CNC gantry milling and boring machining centers are highly versatile machines that can handle a wide range of workpieces. These machines are specifically designed for large, heavy, and complex parts that require precision milling and boring operations. Some suitable workpieces for CNC gantry milling and boring machining centers include:
