Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of cnc horizontal lathe cw 61125 in China. Please feel free to buy cheap cnc horizontal lathe cw 61125 for sale here from our factory. All customized products are with high quality and competitive price.

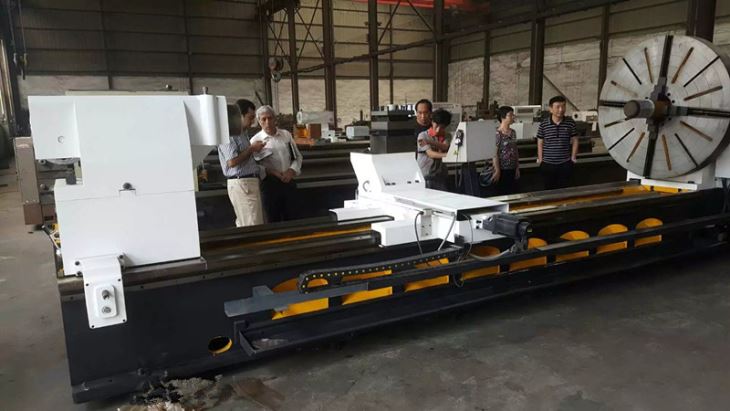

CNC Horizontal Lathe CW 61100 structure features: The Horizontal Lathe series is mainly used to turn the inner and outer cylindrical surface, conical surface, and other rotating parts, to machine kinds of metric thread, inch thread, modulus thread, and pitch thread, and to broach oil gallery and key slot. This series of lathe machine has the following characteristics:
1. The lathe bed, foot, and oil pan adopt an integral casting structure, which has high rigidity and good seismic resistance and conforms to the characteristics of high-speed cutting machine tools.
2. The headstock adopts three supporting structures, all of which are tapered roller bearings. It is easy to adjust the spindle, has high rotary accuracy, and good accuracy retention.
3. The feeding box is equipped with a metric-British threading conversion mechanism. The selection and conversion of threading types are convenient and reliable.
4. The safety device of the conical clutch is installed in the slide box, which can prevent the damage of the machine parts after the overloading of the automatic cutter.
5. The lathe is equipped with a four-position automatic feeding machine collision-stop device in the longitudinal direction. By adjusting the cam's longitudinal position on the collision-stop bar, the required length of the workpiece can be set, and the longitudinal dimension of the workpiece can be machined.
6. The tailstock is equipped with a gearshift device, which can meet the needs of drilling and reaming.
7. The design of the lathe lubrication system is reasonable and reliable. Splash lubrication is used in the headstock, feed box, and slide box. The line pump and plunger pump are added to automatically force lubrication for special parts.
CNC Horizontal Lathe CW 61100 Technical specifications:
|
CW series heavy horizontal turning lathe |
Unit |
CW61125B |
|
|
Max swing diameter over bed |
mm |
1250 |
|
|
Max length of the workpiece |
mm |
15003000/5000-15000 |
|
|
Max swing diameter over carriage |
mm |
610 |
|
|
Spindle bore diameter |
mm |
130 |
|
|
Front taper bore of the spindle |
mm |
Metric 140 |
|
|
Spindle speed kind (forward ) |
Kind |
21 |
|
|
Spindle speed kind (reversal ) |
Kind |
12 |
|
|
Spindle speed range |
|||
|
Foreward |
R/min |
3.15-315 |
|
|
Reversal |
R/min |
3.5-278 |
|
|
Spindle carriage feed rate kind |
Kind |
56 |
|
|
Vertical |
mm |
0.1-12 |
|
|
Horizontal |
mm |
0.05-6 |
|
|
Upper carriage |
mm |
0.025-3 |
|
|
Metric threading pitch range |
44 kinds 1-120 |
||
|
Inch threading range |
31 kinds 24-1/4 t.p.i |
||
|
Modulus threading range |
mm |
45 kinds 0.5-60 |
|
|
Pitch threading range |
38 kinds 1/2-56DP |
||
|
Max gap travel |
mm |
Max workpiece length - 50 |
|
|
Lower carriage max horizontal travel |
mm |
520 |
|
|
Upper carriage max travel |
mm |
300 |
|
|
Rapid speed of carriage (vertical) |
Mm/min |
3740 |
|
|
Rapid speed of carriage (horizontal) |
Mm/min |
1870 |
|
|
Middle carriage |
Mm/min |
935 |
|
|
Tailstock sleeve diameter |
mm |
180 |
|
|
Max travel of tailstock sleeve |
mm |
300 |
|
|
Max taper bore of tailstock sleeve |
MORSE 6# |
||
|
Spindle power |
Kw |
22 |
|
|
Lathe bed overall dimension and net weight (kg) |
mm |
L×W×H [net weight kg] |
|
|
1500 |
mm |
4600×2150×1700 [9200kg] |
|
|
3000 |
mm |
6100×2150×1700 [10700kg] |
|
|
5000 |
mm |
8100×2150×1700 [13000kg] |
|
|
6000 |
mm |
9100×2150×1700 [13700kg] |
|
|
8000 |
mm |
11100×2150×1700 [15700kg] |
|
|
11000 |
mm |
14100×2150×1825 [18900kg] |
|
|
12000 |
mm |
15100×2150×1700 [19700kg] |
|
|
14000 |
mm |
17100×2150×1700 [21300kg] |
|
|
15000 |
mm |
18100×2150×1825 [22100kg] |
|
|
Lathe body guide rail width |
mm |
755 |
|
|
Max load capacity |
kg |
8000 |
|
Luoyang Yujie Industry&Trade Co, Ltd established in 2004, is a professional manufacturer engaged in the research, development, production, sale, and service of large non-standard machinery parts such as gears, shafts, sprockets, bearings, bearing housings, mining machinery parts, rollers, sleeves, steel spools, welding parts, etc. We manufacture and supply all models of CNC machining centers, such as VMC 850, VMC 650, VMC and 1060, etc. Our machinery parts are extensively applied in such industries as mining, petroleum, cement, steel mill, power plant, sugar factory, precision molding industries, aerospace, military project, and some other fields.
We are located in Jianxi Industrial Park, Luoyang, Henan Province, China with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members and professional engineers are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including 2m, 3m, 4m, 6m CNC Gantry boring and milling machine, 1.6m,5m large CNC vertical lathe, 5m, 8m, 10m,12m Horizontal lathe, large size CNC Machining center, Large size CNC floor boring machine and some other advanced equipment. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Germany, Spain, Russia, the USA, and other countries. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
