Large CNC Gantry milling machine professional machining gear racks and pinions
★Description★

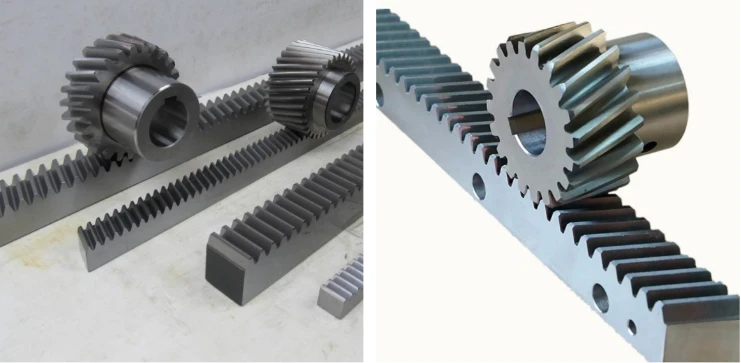

Rack and pinion is a type of mechanical linear motion system that is commonly used to convert rotational motion into linear motion. It consists of a rack, which is a linear gear with teeth that run perpendicular to its length, and a pinion, which is a small gear that meshes with the rack and is rotated by a motor or other power source.
The rack and pinion system is commonly used in a variety of applications, including steering systems in automobiles and other vehicles, as well as in industrial machinery for converting rotational motion into linear motion. The system is designed to provide a smooth and precise motion, making it ideal for applications that require high accuracy and control.
Rack including Spur Gear Rack, Helical Gear Rack, Square Gear Rack, Round Rack and Customized Special Racks.
★The description of Gear Racks and Pinions for CNC Machines★
1) Suitable for various automotive, electronic, telecommunications, mechanical products, medical devices, etc
2) Precision/tolerance:0.01mm
3)Surface processing technical: heat treatment, zinc plating, others optional can be as requirements
4)Material: iron/aluminum, copper, alloy, carbon steel, 18CrMnTi,20CrMnTi,20Cr,20CrV,1045 steel, S355J2G3, others optional
5) Products range standard components or non-standard components. (We provide OEM service)
6)ISO9001:2008 & ISO9001:2000
★The main category of Rack ★
★Applications of gear rack and pinions★
Gear rack and pinions are widely used in various applications that require precise and controlled linear motion or conversion of rotary motion into linear motion. The gear rack is a long, straight bar with gear teeth, and the pinion is a small gear that meshes with the gear rack. Here are some common applications of gear rack and pinions:
CNC Machines: Gear rack and pinions are extensively used in CNC machines to convert rotational motion from stepper motors or servo motors into precise linear motion. They enable the movement of the cutting tool or workpiece along different axes with high accuracy and repeatability.
Robotics: Many robotic systems utilize gear rack and pinions to achieve linear motion in their arms, legs, or other movable components. The combination of gear racks and pinions provides a simple and reliable way to translate rotational motion from motors into linear movement, enabling robots to perform various tasks with precision.
Linear Actuators: Gear rack and pinions are essential components in linear actuators used in industrial automation, automotive systems, and other applications where controlled linear motion is required. They are also found in adjustable desks, recliners, and other furniture with electric height adjustment.
Material Handling: Gear rack and pinions are commonly used in material handling systems like conveyor belts and assembly lines. They enable smooth and precise movement of goods along the production process, facilitating efficient material flow.
3D Printers: Gear rack and pinions are employed in 3D printers to move the print head or build platform along the X, Y, and Z axes. They contribute to the accuracy and stability of the printing process, resulting in high-quality prints.
Elevators: Gear rack and pinions are extensively used in elevator systems to enable vertical motion. The combination of gear rack and pinion ensures smooth and safe transportation of passengers or goods between floors in buildings.
Rack and Pinion Steering: This is a common steering mechanism used in vehicles, where the pinion gear meshes with the gear rack to convert the rotational motion of the steering wheel into lateral motion of the wheels, allowing for precise steering control.
Gantry Systems: Gear rack and pinions are employed in gantry systems, which are large, movable structures used in industrial settings for tasks such as material handling, cutting, and welding. The gear rack and pinion provide stable and accurate linear motion to the gantry system.
Printing Presses: Gear rack and pinions are used in printing presses to control the movement of the printing plates or paper during the printing process, ensuring consistent and precise alignment.
Automated Guided Vehicles (AGVs): AGVs often use gear rack and pinions to control their movement and navigation along predefined paths in industrial settings.
Overall, gear rack and pinions are versatile components used in a wide range of applications where controlled linear motion, precision, and reliability are essential. They play a crucial role in various industries, from manufacturing and automation to transportation and robotics.
★About us★
Luoyang Yujie Industry &Trade Co.Ltd located in Luoyang City, one of the main heavy industrial bases in China. We specialize in the production of bearings, nonstandard machinery parts, machine tools. For the bearings, we can offer cross roller bearing, slewing bearing, YRT bearing, thin section bearing, ball screw bearing, deep groove ball bearing, etc. For the nonstandard machine parts, we can produce gears, shafts, sprockets, molds, rollers, pulley, mining machine parts, etc as per customer drawing and requirements. For the machine tools, we offer CNC vertical machine center, CNC horizontal lathe, CNC gantry boring and milling machine, CNC floor type boring, and milling machine.
★Contact us★
If you have any interests, feel free to contact us and we warmly welcome customers and friends visit us.
Luoyang Yujie Industry & Trade Co., Ltd.
Email:sales@yujieindustry.com
Tel: +86-379-65163600
Phone: +86-15036387078
Hot Tags: High Precision 42CrMo4 Gear Rack and Pinions, manufacturers, supplier, factory, customized, cheap, price, in stock, for sale
