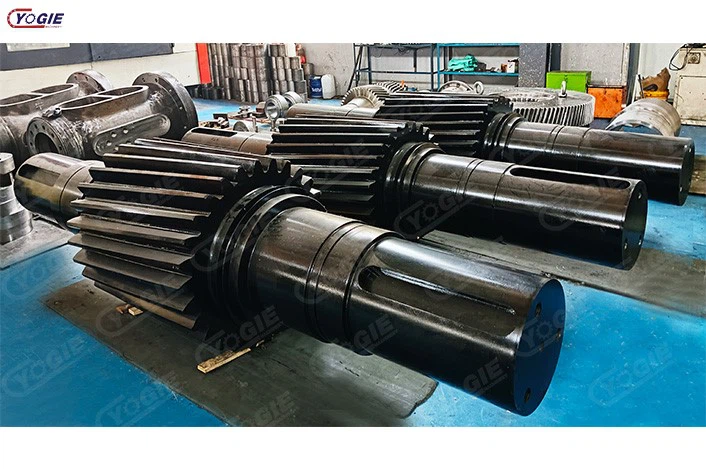

Custom Large Helical Gear Shaft















Contact now





Gear Design: The process starts with gear design, where engineers determine the specifications, tooth profile, helix angle, and other parameters based on the application requirements and load calculations.



Gear Cutting: Large helical gear shafts are typically manufactured using gear hobbing or gear shaping processes. Gear hobbing involves using a hobbing machine, which has a rotating hob that gradually cuts the gear teeth into the workpiece. Gear shaping utilizes a gear shaping machine with a cutter that progressively shapes the gear teeth.



Heat Treatment: After the gear cutting process, the gear shaft undergoes heat treatment to enhance its hardness, strength, and durability. Common heat treatment methods include quenching and tempering processes to achieve the desired material properties.



Machining and Finishing: The gear shaft then undergoes various machining operations to achieve the desired dimensions, surface finish, and accuracy. This may include operations such as turning, milling, drilling, and grinding.



Gear Inspection: To ensure the quality and accuracy of the large helical gear shaft, it undergoes rigorous inspection using specialized measuring equipment. This includes gear profile testers, coordinate measuring machines (CMM), and gear analyzers to check tooth profile, alignment, backlash, and other critical parameters.



Balancing: Depending on the specific application and rotational speed, the gear shaft may require balancing to minimize vibrations during operation. Balancing machines are used to measure and correct any imbalances in the gear shaft.



Surface Treatment: Surface treatments such as shot blasting or coating may be applied to improve corrosion resistance, aesthetics, or to meet specific requirements of the application.



Assembly: If the large helical gear shaft is part of a larger assembly, it is then integrated into the final product, such as a gearbox or machine system.









★★★High Load Capacity: Large helical gear shafts are designed to handle significant loads and transmit high levels of torque. The helical gear design allows for a greater tooth engagement, resulting in improved load distribution and higher load-carrying capacity compared to other gear types.



★★★Smooth and Quiet Operation: Helical gears have a gradual engagement of teeth, which reduces noise and vibration during operation. The helix angle of the teeth helps to distribute the load smoothly, minimizing impact and ensuring a quieter gear system.



★★★Increased Efficiency: The helical gear design provides a larger contact area between the teeth, resulting in higher efficiency compared to other gear types. This leads to reduced power losses and improved overall system efficiency.



★★★Greater Tooth Strength: The helical gear teeth are longer and have a larger surface area compared to spur gears, providing increased tooth strength. This makes large helical gear shafts more resistant to wear and fatigue, allowing them to withstand heavy loads and prolonged use.



★★★Improved Gear Meshing: Helical gears offer a gradual engagement of teeth, which results in a smoother meshing action. This helps to minimize backlash, improve gear accuracy, and reduce the likelihood of tooth damage during gear engagement.



★★★Versatility: Large helical gear shafts can be used in a wide range of applications, including industrial machinery, heavy equipment, marine propulsion systems, and power transmission systems. Their versatility makes them suitable for various industries and sectors.



★★★Reliability and Durability: The use of high-quality materials, precise manufacturing techniques, and rigorous quality control ensures that large helical gear shafts are reliable and durable. They are designed to withstand heavy loads, extreme operating conditions, and long service life.





Power transmission: The primary function of a large helical gear shaft is to transmit power and torque from one rotating component to another. When the shaft rotates, the helical gear teeth mesh with the teeth of the mating gear, allowing the transfer of rotational force.



Smooth operation: Helical gears offer several advantages over other types of gears, such as spur gears. The helix angle of the teeth results in gradual engagement and disengagement of the gear teeth, which reduces noise, vibrations, and impact loads. This smooth operation is particularly beneficial for large gear shafts, as it helps minimize wear and prolong the lifespan of the gears.



Load distribution: The helical gear teeth are cut at an angle, allowing multiple teeth to be engaged simultaneously. This enables the distribution of the load across a broader surface area compared to spur gears. As a result, large helical gear shafts can handle higher loads and transmit greater amounts of torque.



Misalignment compensation: Helical gears have a certain degree of misalignment tolerance. The helix angle of the teeth allows for a small amount of axial and radial misalignment between the gears without causing excessive wear or performance issues. This flexibility is advantageous in applications where precise alignment of the gears is challenging.



Gear ratios: Large helical gear shafts can be designed to achieve specific gear ratios based on the number of teeth and the helix angle. By selecting appropriate gear ratios, the rotational speed and torque can be adjusted to suit the requirements of the machinery or system.



---

Overall, large helical gear shafts provide efficient power transmission, smooth operation, load distribution, and some degree of misalignment tolerance, making them suitable for a wide range of industrial applications where high torque and heavy loads are involved.
