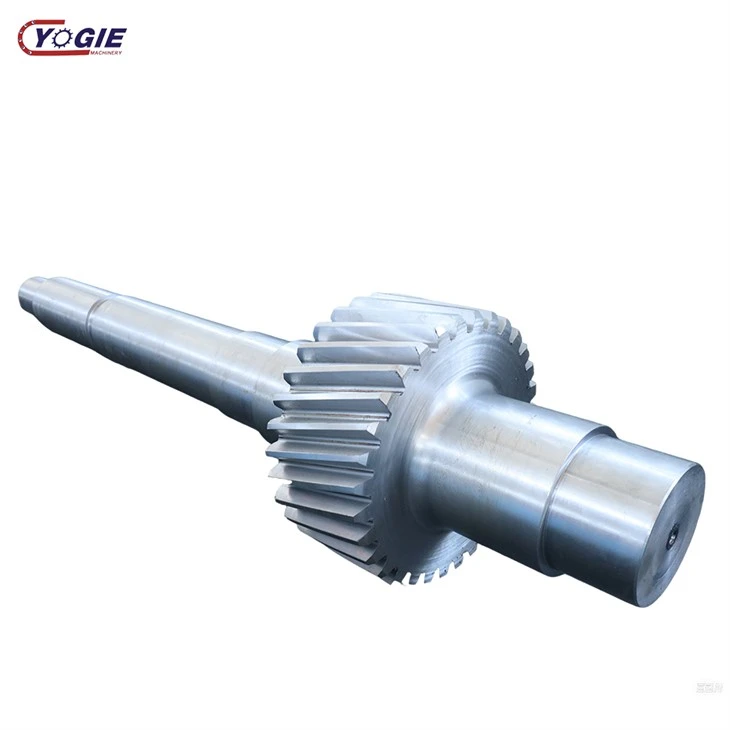

Pinion Gear Shaft

A pinion gear shaft is a type of gear shaft featuring a small gear called a pinion on one end. This gear meshes with a larger gear on another shaft to transfer rotational power, control speed, and change motion direction in various mechanical systems. It plays a vital role in power transmission across industries like automotive, manufacturing, robotics, and power generation.

Send Inquiry

Description

Products Description

A pinion gear shaft is a specific type of gear shaft that incorporates a pinion gear at one end. The pinion gear is a small, cylindrical gear with teeth that meshes with a larger gear (spur gear, crown gear, or bevel gear) on another shaft. Together, they form a gear system that facilitates power

transmission and motion control.

Features

pinion gear shaft

Pinion Gear: The pinion gear is the central feature of the shaft. It has teeth that engage with the teeth of the mating gear, enabling torque transfer and rotational motion.

Shaft Construction: The pinion shaft is typically made from robust materials like alloy steel, ensuring strength and durability to withstand high loads and stresses.

Products show

pinion gear shaft

Contact now

Machining Processing

pinion gear shaft processing

Material Selection: The process begins with selecting the appropriate material for the pinion gear shaft, typically a high-strength alloy steel such as 4140, 4340, or similar materials. Material selection depends on the specific application and required mechanical properties.

Cutting the Raw Material: The selected steel bar stock is cut to the desired length. This can be done using various cutting methods such as sawing, shearing, or abrasive cutting, depending on the available machinery and material thickness.

Turning (Centering): The next step is to center the cut piece of material on a lathe machine. Centering ensures that the shaft is aligned and concentric, allowing for precise machining.

Facing and Center Drilling: The ends of the shaft are faced to ensure they are perpendicular to the shaft's axis. Center drilling is performed to create a starting point for subsequent machining operations.

Rough Turning: In this step, the shaft's outer diameter is rough-turned to achieve a close approximation of the final dimensions. The rough turning process removes excess material quickly.

Rough Milling: If the pinion gear shaft has gear teeth that need to be machined, a rough milling operation is performed to create the basic tooth profile. This may involve using a hobbing machine or a milling cutter specifically designed for gear teeth.

Heat Treatment: After rough machining, the pinion gear shaft may undergo a heat treatment process to improve its hardness and overall mechanical properties. Common heat treatment methods include quenching and tempering.

Finish Turning: The shaft is then finish-turned to achieve the precise dimensions required for the application. This step ensures the shaft has a smooth surface finish and tight tolerances.

Gear Tooth Finishing: If the pinion gear shaft has gear teeth, a gear hobbing or gear shaping process is used to create the final tooth profile. This step is critical for achieving proper gear engagement and transmission efficiency.

Grinding (Optional): In some cases, a grinding operation may be performed to achieve ultra-precise dimensions and a very smooth surface finish. This is often necessary for high-precision applications.

Quality Control: Throughout the machining process, quality control checks are conducted to ensure the shaft meets the specified tolerances and quality standards. Measurements are taken using precision instruments such as micrometers, calipers, and CMMs (Coordinate Measuring Machines).

Surface Treatment (Optional): Depending on the application, the pinion gear shaft may undergo surface treatments such as plating, coating, or polishing to enhance its durability and resistance to wear.

Final Inspection and Packaging: The finished pinion gear shafts are thoroughly inspected to ensure they meet all quality requirements. Once approved, they are packaged and prepared for shipping or assembly into the final product.

Main roles

Power Transmission: The primary function of the pinion gear shaft is to transmit rotational power and torque from the pinion gear to the mating gear. This allows for the transfer of motion and power within a mechanical system.

Speed Control: By using gears with different tooth counts on the pinion and the mating gear, the pinion gear shaft can provide speed control, either reducing or increasing the rotational speed.

Torque Amplification: The gear ratio between the pinion and the mating gear can amplify torque, allowing smaller, high-speed motors to drive larger loads efficiently.

Direction Change: In some configurations, like bevel gears, the pinion gear shaft can change the direction of rotation between intersecting shafts.

Application

Automotive: It is commonly used in automotive drivetrains to transfer power from the engine to the wheels and in steering systems for directional control.

Industrial Machinery: Pinion gear shafts are essential components in gearboxes, conveyors, and other power transmission systems used in manufacturing and processing equipment.

Robotics: In robotic arms and mechanisms, pinion gear shafts help control movement and provide precise motion.

Power Generation: In wind turbines and other power generation equipment to transfer rotational power to generators.

Marine: Pinion gear shafts are used in marine applications for transmissions in boats and ships.
