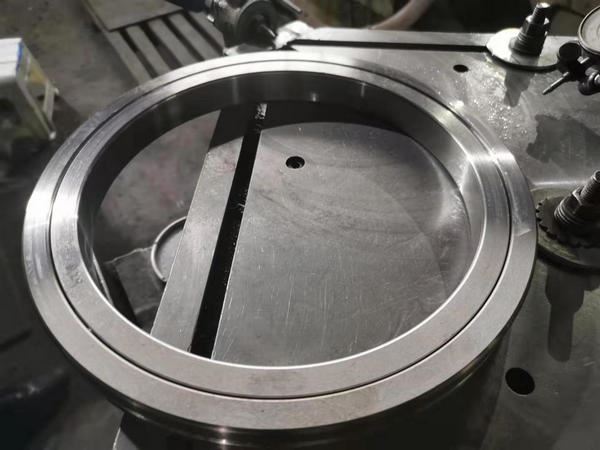

Finland customer ordered cross roller bearing SX011848, ready to ship
SX type (integrated inner ring, split outer ring, ultra-thin). Under the same shaft diameter, this type has a smaller cross-sectional size than RB type. Due to the ultra-thin design, the outer ring and inner ring have no mounting holes , It needs to be fixed by flange and support seat during installation, which is suitable for applications where the inner ring rotates.
The main models of SX crossed roller bearings include:
| Model number | Main dimensious | shoulderheight | Basicload rating axial | Basic load rating radial | weight | ||||||||
| Inner diameter | outer diameter | Roller pitch circle diameter | width | greas hole | r | de | Di | Ca | Coa | Cr | Cor | Kg | |
| d | D | Dp | B/B1 | S | KN | KN | KN | KN | |||||
| SX011814 | 70 | 90 | 80 | 10 | 1.2 | 0.6 | 79.5 | 80.5 | 18 | 60 | 12 | 30 | 0.3 |
| SX011818 | 90 | 115 | 102 | 13 | 1.2 | 1 | 101.5 | 102.5 | 26 | 96 | 17 | 47 | 0.4 |
| SX011820 | 100 | 125 | 112 | 13 | 1.2 | 1 | 111.5 | 112.5 | 28 | 106 | 18 | 52 | 0.5 |
| SX011824 | 120 | 150 | 135 | 16 | 1.5 | 1 | 134.4 | 135.6 | 41 | 153 | 26 | 75 | 0.8 |
| SX011828 | 140 | 175 | 157 | 18 | 1.5 | 1.1 | 156.3 | 157.7 | 64 | 237 | 41 | 116 | 1.1 |
| SX011832 | 160 | 200 | 180 | 20 | 1.5 | 1.1 | 179.2 | 180.8 | 69 | 272 | 44 | 133 | 1.7 |
| SX011836 | 180 | 225 | 202 | 22 | 2 | 1.1 | 201.2 | 202.8 | 98 | 381 | 63 | 187 | 2.3 |
| SX011840 | 200 | 250 | 225 | 24 | 2 | 1.5 | 224.2 | 225.8 | 106 | 425 | 68 | 208 | 3.1 |
| SX011848 | 240 | 300 | 270 | 28 | 2 | 2 | 269.2 | 270.8 | 149 | 612 | 95 | 300 | 5.3 |
| SX011860 | 300 | 380 | 340 | 38 | 2.5 | 2.1 | 339.2 | 340.8 | 245 | 1027 | 156 | 504 | 12 |
| SX011868 | 340 | 420 | 380 | 38 | 2.5 | 2.1 | 379.2 | 380.8 | 265 | 1148 | 167 | 563 | 13.5 |
| SX011880 | 400 | 500 | 450 | 46 | 2.5 | 2.5 | 449 | 451 | 385 | 1699 | 244 | 833 | 24 |
| SX0118/500 | 500 | 620 | 560 | 56 | 2.5 | 3 | 558.8 | 561.2 | 560 | 2538 | 355 | 1244 | 44 |
Luoyang Yujie Industry &Trade Co.Ltd located in Luoyang City, one of the main heavy industrial bases in China.
We specialize in the production of bearings, nonstandard machinery parts, machine tools. For the bearings, we can offer cross roller bearing, slewing bearing, YRT bearing, thin section bearing, ball screw bearing, deep groove ball bearing, etc. For the nonstandard machine parts, we can produce gears, shafts, sprockets, molds, rollers, pulley, mining machine parts, etc as per customer drawing and requirements. For the machine tools, we offer CNC vertical machine center, CNC horizontal lathe, CNC gantry boring and milling machine, CNC floor type boring, and milling machine.
If you have any interests, feel free to contact us and we warmly welcome customers and friends visit us
