Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of cnc floor boring machine in China. Please feel free to buy cheap cnc floor boring machine for sale here from our factory. All customized products are with high quality and competitive price.
Products Description

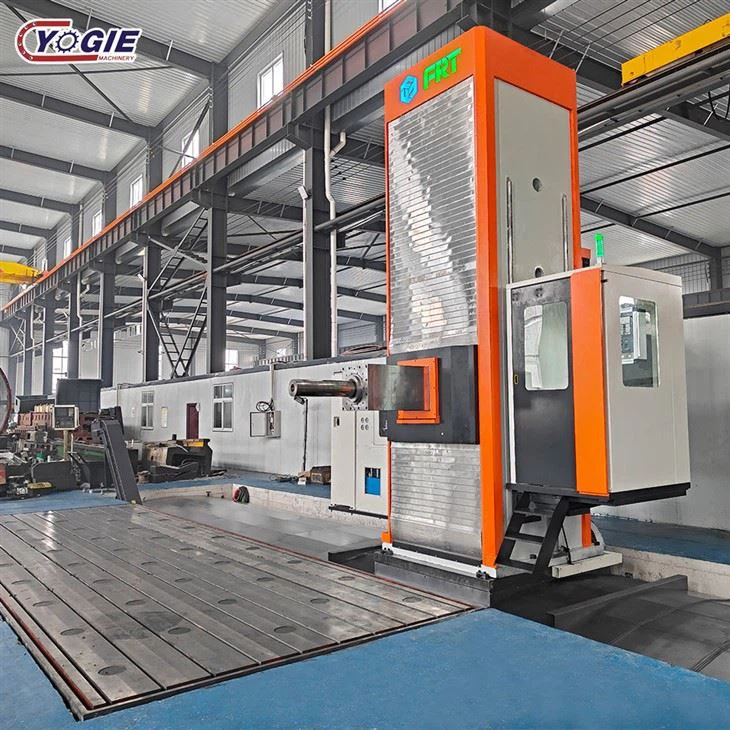

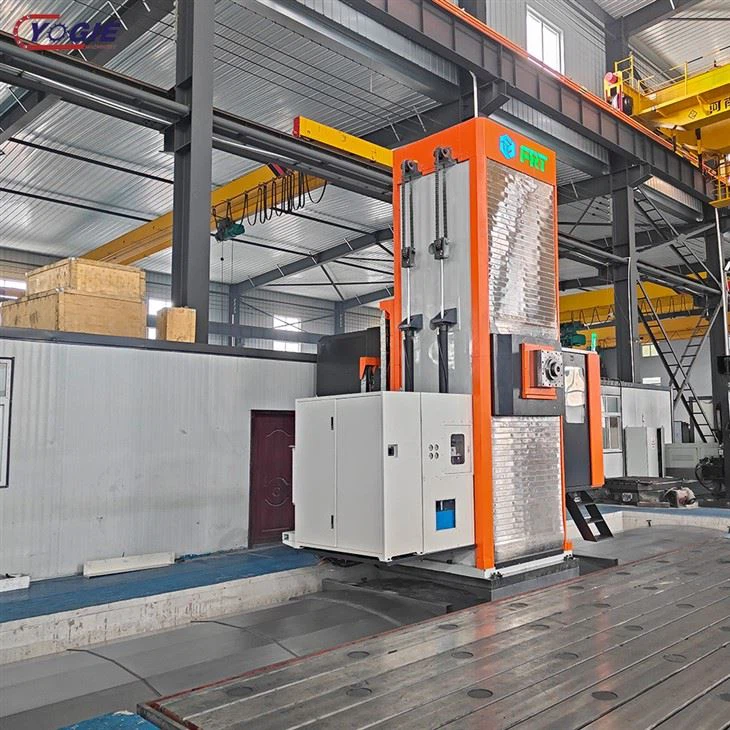

CNC floor boring machine
A CNC (Computer Numerical Control) floor boring machine is a specialized machining tool used for precision drilling, boring, and milling of large and heavy workpieces.

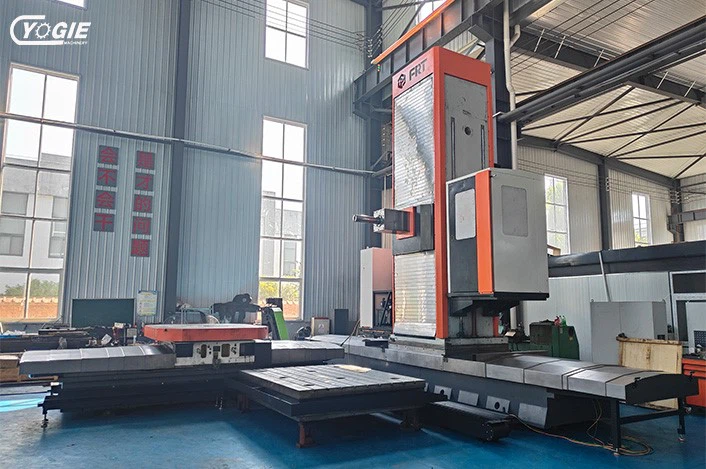

Moving Hard rail and rotary table
These machines are commonly employed in industries that require accurate and efficient machining of large components, such as those used in the manufacturing of aerospace, energy, and heavy machinery components.
Features
| FRT-T160 | |||
| Item | Main Parameter | ||
| CNC control | SIEMENS 828Dsl | ||
| Table | Table Size | mm | 2000×6000 |
| Work Table Load Capacity | t/m² | 15 | |
| T-slot Specifications (width/spacing/number) | 26×200×10 | ||

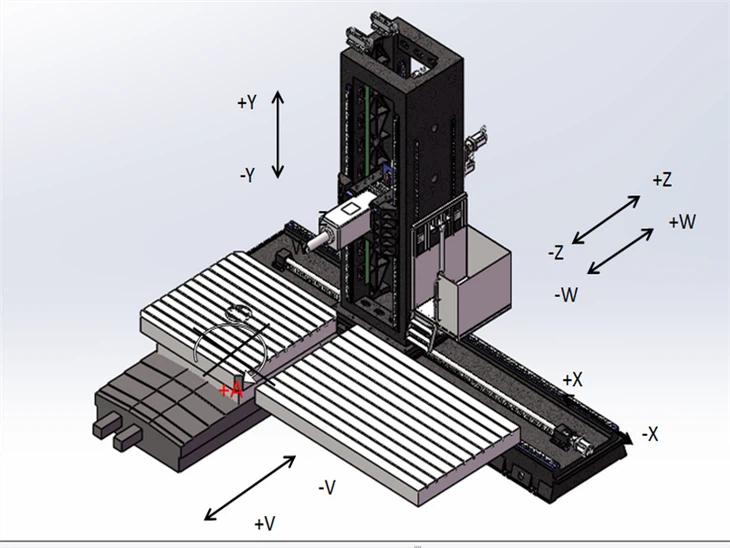

| Travel | X axis | mm | 6000 |
| Y axis | mm | 3000 | |
| Z axis | mm | 1000 | |
| Spindle Travel(W axis) | mm | 1000 | |
| Headstock | Spindle Drive Mode | Gearbox drive | |
| Spindle Speed | rpm | 1-2000 | |
| Spindle Dia | mm | Φ160 | |
| Spindle taper and specification | IS07:24NO50 | ||
| Pull stud bolt type | P50T-2-MAS403 | ||

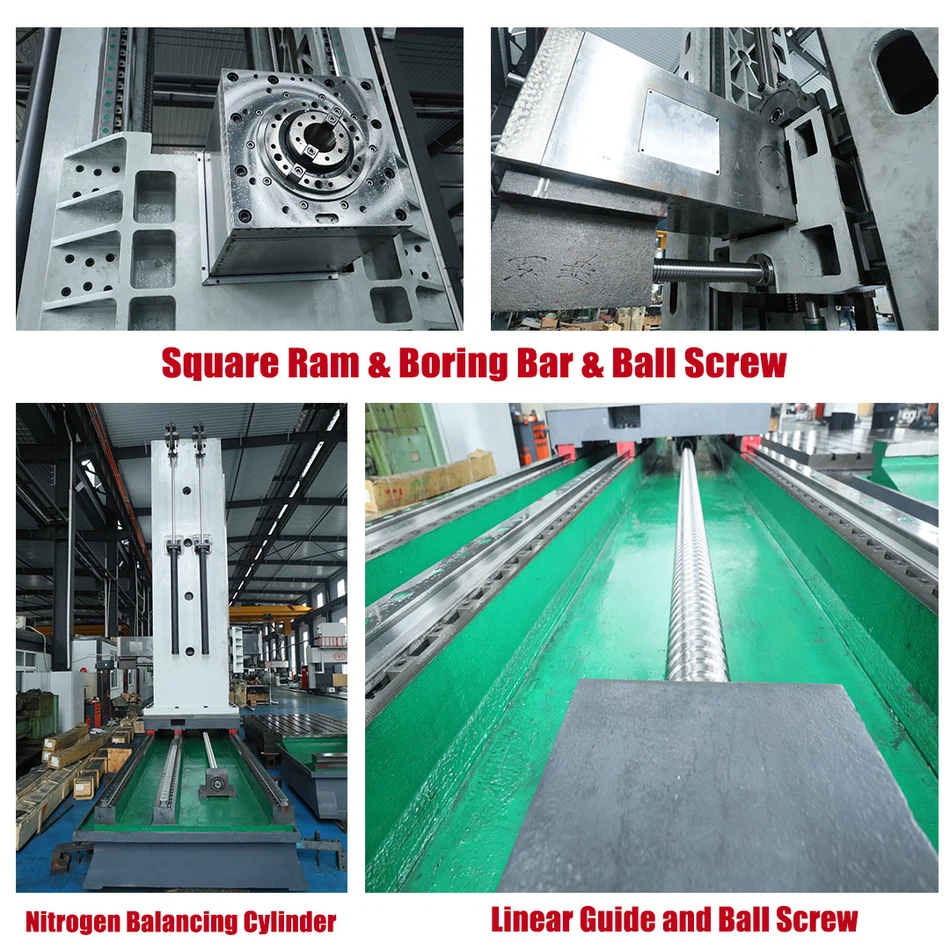

| Ram Section | mm | 480×480 | |
| Spindle Torque(Max) | Nm | 2590 | |
| Positioning accuracy(Standards:GB/T19362.1-2003) | X axis | mm | 0.02 |
| Y axis | mm | 0.02 | |
| Z axis | mm | 0.02 | |
| W axis | mm | 0.02 | |
| Repeated positioning accuracy(Standards:GB/T19362.1-2003) | X axis | mm | 0.015 |
| Y axis | mm | 0.015 | |
| Z axis | mm | 0.01 | |
| W axis | mm | 0.015 | |
| Machine dimension | mm | 11500×3000×5800 | |
Functions
Boring: The primary function is to bore holes with high precision. This is crucial in industries where large and precise holes are required in components.
Milling: CNC floor boring machines can perform milling operations to shape and profile the workpiece.
Drilling: These machines can drill holes of various sizes and depths in a controlled and accurate manner.
Tapping: Some models may be equipped with tapping capabilities to create threaded holes.
Facing: Machining the end surfaces of a workpiece to create a flat and smooth finish.
applications
Aerospace Industry: CNC floor boring machines are used in the manufacturing of large aerospace components, such as aircraft wings, fuselage sections, and engine components.
Energy Sector: They are employed in the production of components for power generation, including turbine casings, generator parts, and other heavy machinery components.
Automotive Industry: CNC floor boring machines are used for machining large engine blocks, transmission cases, and other automotive components.
Heavy Machinery Manufacturing: Industries involved in the production of heavy machinery, such as construction equipment and mining machinery, use these machines for machining various components.
Oil and Gas Industry: Components for the oil and gas sector, such as drilling equipment and pipeline components, often require the precision machining capabilities of CNC floor boring machines.
what can it process
Engine Blocks: Floor boring machines are often used to bore out the cylinders in engine blocks to precise dimensions.
Large Castings: They can bore holes in large castings for various applications, such as turbine housings, gearboxes, and hydraulic cylinders.
Heavy Machinery Components: Floor boring machines are capable of processing heavy machinery components like crankshafts, transmission cases, and axle housings.
Metallic Structures: They can be used for machining structural components of bridges, ships, and other large metallic structures.
Molds and Dies: Floor boring machines are employed in the manufacture of molds and dies for plastics, metal forming, and other industrial processes.
Mining Equipment: Some floor boring machines are utilized in the fabrication of components for mining equipment, including drilling rigs and excavation machinery.
Renewable Energy Components: They can be used to machine components for wind turbines, hydroelectric generators, and other renewable energy systems.
Aerospace Parts: Floor boring machines are vital in manufacturing aerospace components like aircraft landing gear, wing spars, and fuselage sections.
FAQ
Q: Are you trader or factory?
Q: What kind of service can you provide?
Q: Will weld inspection and paint thickness inspection be performed?
A: Yes. We also support third-party testing.
Q: Do you support factory inspection?
A: Anytime
Q: Besides manufacturing spare parts for large machinery, what else do you produce?
A: We also manufacture large CNC machine tools and perform equipment upgrades and retrofits.
