Question 1: What is a floor type milling machine?



A floor type milling machine is a large-scale metal cutting machine tool without a fixed column and workbench. Its workpiece is directly installed on the ground foundation or a special floor-type workbench. Through the rotation of the milling cutter, the workpiece is processed into a plane, groove, and a formed surface. Because the workbench is directly on the ground, it has a strong load-bearing capacity and is suitable for processing large and heavy workpieces. It is often used in heavy machinery, shipbuilding and other fields, and can meet the processing needs of large size and high precision.



Question 2: What is the difference between a floor type milling machine and an ordinary milling machine?



A floor type milling machine is different from an ordinary milling machine. The workbench of an ordinary milling machine is fixed, and the load-bearing and processing size are limited. The floor-standing milling machine has no fixed workbench, the workpiece is installed on the ground, the processing space is large, and it can process super-large workpieces. Its structural design strengthens rigidity and stability and can withstand large cutting forces. At the same time, the milling head equipped with various functions can process at multiple angles, which is suitable for heavy and complex workpiece processing. It is often used in heavy machinery manufacturing, and has significant differences from ordinary milling machines in processing capacity and scope of application.

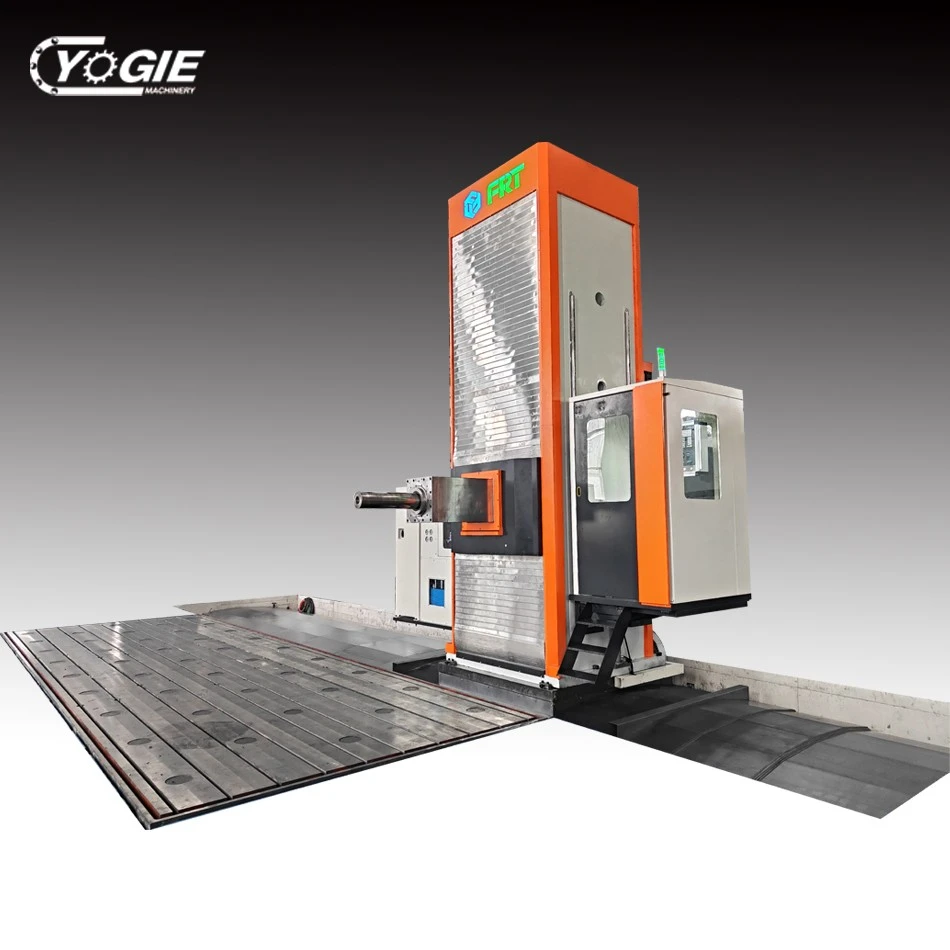

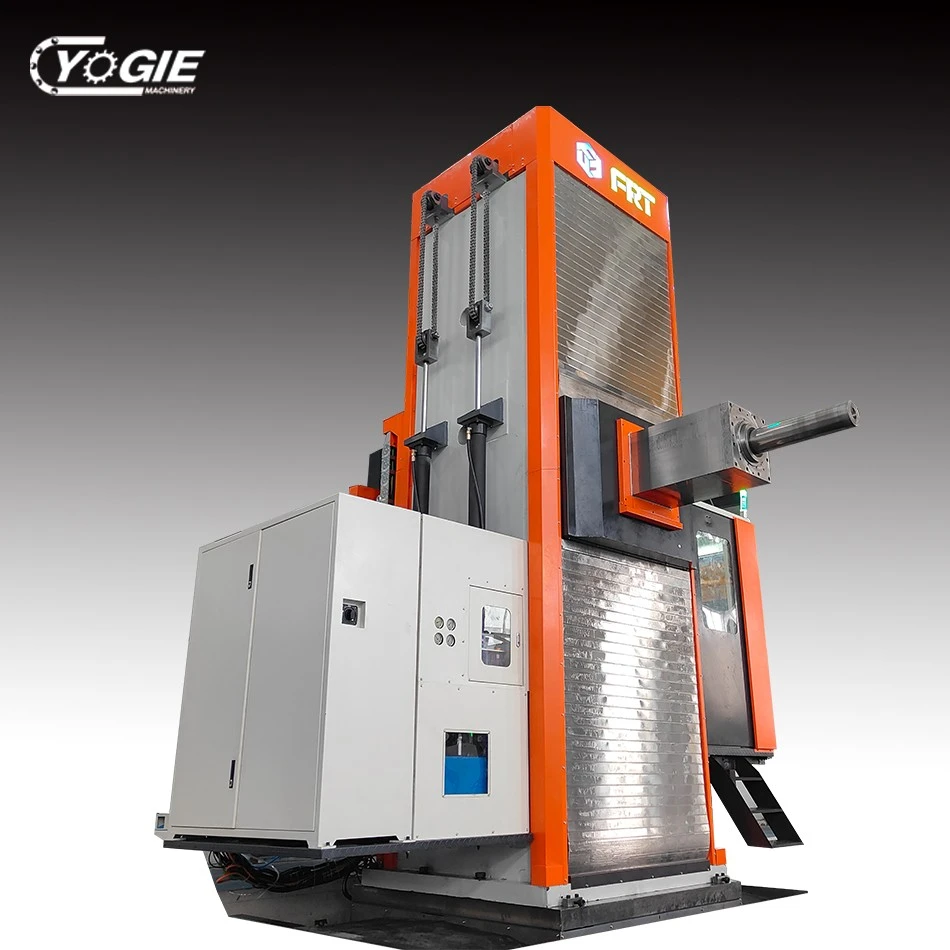

T160 Floor type milling machine
Item			Main Parameter
CNC control			SIEMENS 828Dsl
Table	Table Size	mm	2000×6000
	Work Table Load Capacity	t/m²	15
	T-slot Specifications (width/spacing/number)		26×200×10
Travel	X axis	mm	6000
	Y axis	mm	3000
	Z axis	mm	1000
	Spindle Travel(W axis)	mm	1000
Headstock	Spindle Drive Mode		Gearbox drive
	Main Motor Power	KW	45
	Spindle Speed	rpm	1-2000
	Spindle Dia	mm	Φ160
	Spindle taper and specification		IS07:24NO50
	Pull stud bolt type		P50T-2-MAS403
	Ram Section	mm	520×520
	Spindle Torque(Max)	Nm	2590
	Spindle nose to table surface	mm	200-3000
ball screw	Ball screw(X axis)	mm	100×20
	Ball screw(Y axis)	mm	80×16
	Ball screw(Z axis)	mm	63×12
	Ball screw(W axis)	mm	63×12
Guide Rail	Guide Rail(X axis)		Four 65 specification heavy-duty roller type linear motion rolling guides on the X-axis
	Guide Rail(Y axis)		Four 55 specification heavy-duty roller type linear motion rolling guides on the Y-axis
	Guide Rail(Z axis)		Square ram hard slide rail
FEED	Milling speed X,Y,Z,W Axis	m/min	6/6/6/6
	Rapid X,Y,Z,W Axis	m/min	10/10/10/2
	Servo motor power for X,Y,Z,W	kw	9.75/ 7.17/ 7.75
	Servo motor torque×reduction gear ratio for X,Y,Z,W	Nm	50×5/48×5/48×5
	Servo motor speed for X,Y,Z,W	rpm	5000/ 3000/3000
Tool magazine(Optional)	magazine capacity	T	[40,60]
	Spindle nose		BT50
	Pull stud		P50T-2-MAS403
	Maximum diameter(full knife/empty)	mm	Φ125/Φ250
	maximum length	mm	400
	maximum weight	kg	25
Positioning accuracy(Standards:GB/T19362.1-2003)	X axis	mm	0.02
	Y axis	mm	0.02
	Z axis	mm	0.02
	W axis	mm	0.02
Repeated positioning accuracy(Standards:GB/T19362.1-2003)	X axis	mm	0.015
	Y axis	mm	0.015
	Z axis	mm	0.01
	W axis	mm	0.015
Power supply requirements			Three-phase 380V
Capacitance		KVA	145
Machine weight		T	105
Machine dimension		mm	11500×3000×5800





Technical specification		FRT-T130	FRT-T160	FRT-T200
Travel
Work table travel(X/Y/Z/W)	mm	X (4000-6000)	X (6000-8000)	X (8000-10000)
	mm	Y (2000-3000)	Y (2000-3000)	Y (2000-3000)
	mm	Z (800)	Z (1000)	Z (1200)
	mm	W (700)	W (1000)	W (1200)
Distance from spindle surface to worktable	mm	0-3000	0-3000	0-4000
Guide rail	Two linear guide rail, one hardened rail
Work table
Table size	mm	Customization	Customization	Customization
The maximum load capacity of the work table	T	15/㎡	15/㎡	15/㎡
Spindle
The spindle taper(model sleeve diameter)		BT50	BT50	BT50
The spindle motor power	kw	26	35	45
Spindle speed	rpm	2000	2000	2000
Accuracy
Position Precision	mm	0.01/1000	0.01/1000	0.01/1000
Repeated position precision	mm	±0.01	±0.01	±0.01
Size
Net weight	T	about 55~70	about 90~130	about 125~165



This floor-type milling machine adopts large-diameter ball screw and screw support, and uses liquid nitrogen balance cylinder to balance the slide of the middle part. In addition, our machine tool adopts gear box transmission, equipped with rectangular square slide and boring spindle.





Bed: It is the basic component of the machine tool, usually made of high-quality cast iron, with high rigidity and stability, used to support other components.



Slide: It is installed on the bed and can move longitudinally along the bed rails. It is a component that carries the workpiece or workbench.



Column: It is fixed on the bed, and the spindle box is installed on the column. The column generally has a high height to meet the processing needs of workpieces of different heights.



Spindle box: The spindle components and transmission devices are installed inside. The spindle drives the tool to rotate to achieve milling. The spindle box can move vertically along the column rails to adjust the height position of the tool.



Workbench or fixture: It is used to clamp the workpiece. According to the processing needs, the workbench can be fixed or rotating, and can also be equipped with various fixtures to adapt to the clamping of workpieces of different shapes and sizes.



CNC system: It is the control core of the machine tool. It receives the processing program input by the operator, and after processing and calculation, it controls the movement of each coordinate axis to realize the relative movement between the tool and the workpiece, and completes the predetermined processing task.





Contact now







High processing accuracy: The CNC system can accurately control the movement trajectory of the tool, with high positioning accuracy and repeated positioning accuracy, and can process parts with high dimensional accuracy and form and position tolerance requirements.



High processing efficiency: It can realize multi-axis linkage and can process multiple faces or multiple features at the same time, reducing the number of clamping times and auxiliary time of the workpiece and improving production efficiency.



High degree of automation: The operator only needs to write the processing program, and the machine tool can automatically complete the processing process according to the program, reducing labor intensity and reducing the impact of human factors on processing quality.



Strong adaptability: By modifying the processing program, it can quickly adapt to the processing needs of different parts, especially suitable for processing single pieces, small batches and parts with complex shapes.











Large box parts: such as engine cylinders, gearbox housings, etc. These parts usually have large sizes and complex internal cavity structures. CNC floor milling machines can accurately process various planes, hole systems and cavities through multi-axis linkage processing.



Large bracket parts: such as brackets and gantry frames of large equipment, their outer dimensions are large, and milling, drilling and other processing operations are required within a large processing range. The large stroke and high rigidity of CNC floor milling machines can meet the processing requirements of such parts.



Large molds: such as automobile cover molds, large injection molds, etc., the mold surface is complex and the precision requirements are high. CNC floor milling machines can achieve high-precision processing of mold surfaces through precise programming and processing, ensuring the quality and service life of the mold.



Large rotating body parts: For some rotating body parts with large diameters and long lengths, such as large rollers, turbine rotors, etc., CNC floor milling machines can use special fixtures and tools to process their outer circles, end faces, keyways and other parts.
