A CNC (Computer Numerical Control) Gantry Type Milling Machine is a specialized machining tool used in manufacturing and machining processes to precisely shape and cut materials like metal, plastic, and composites. It gets its name from the gantry structure that spans the work area, providing stability and support for the cutting tool.

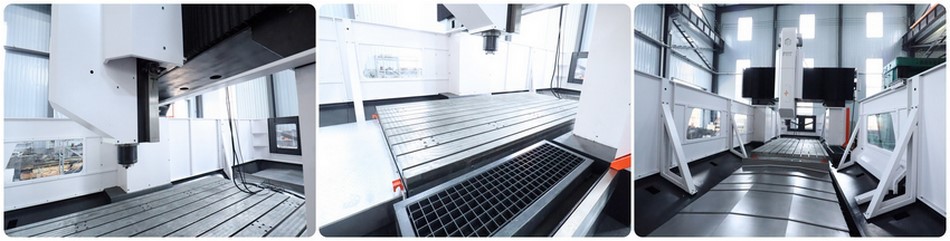

parts show
FRT-6035
characteristics of cNC gantry type milling machine
Gantry Structure: The gantry type milling machine features a large, rigid frame that straddles the workpiece. This structure provides stability and precision during machining operations, allowing for heavy-duty cutting.
CNC Control: Like other CNC machines, it is computer-controlled, which means it can execute complex machining operations with high precision and repeatability. Operators use computer software to program the machine, specifying toolpaths, speeds, and feeds.
Multiple Axes: These machines typically have multiple axes of motion, including X, Y, and Z axes. Some advanced models may also have additional rotary axes for more complex operations like 5-axis milling.
Spindle Speed and Tool Changer: Gantry type milling machines are equipped with a spindle that rotates at various speeds to accommodate different cutting tools. They often have automatic tool changers, allowing the machine to switch between tools during a single operation.
High Precision: Gantry type milling machines are known for their high precision and accuracy. They can achieve tight tolerances, making them suitable for applications where precision is critical.
Versatile: These machines can be used for a wide range of machining operations, including milling, drilling, tapping, boring, and more. They are commonly used in industries such as aerospace, automotive, and mold making.
main functions of CNC gantry type milling machine
Milling: The primary function of a gantry type milling machine is to remove material from a workpiece by rotating a cutting tool (end mill) and moving it along various axes. This process is used for shaping and profiling parts.
Drilling: Gantry milling machines can also perform drilling operations, creating holes with precise dimensions in the workpiece.
Contouring and 3D Machining: With their multi-axis capability, these machines are capable of performing complex 3D machining tasks, allowing for the creation of intricate shapes and contours.
Engraving and Surface Finishing: Gantry type milling machines can be used for engraving text or designs on a workpiece's surface, as well as for achieving smooth surface finishes.
Prototype and Production Machining: They are widely used in both prototyping and production environments. Prototypes can be quickly machined to test designs, and they can also be used for large-scale production runs.
Customization: Gantry milling machines are versatile and can be adapted to various tasks by changing tooling and programming. This flexibility makes them valuable for customized manufacturing.
main parts of CNC gantry milling machine
Gantry Frame: The gantry frame is the main structure of the machine, and it typically consists of large, rigid columns and a crossbeam that spans the width of the machine's work area. It provides stability and support for the other components.
Worktable: The worktable is the surface on which the workpiece is secured during machining. It can move along the X and Y axes to position the workpiece under the cutting tool.
Saddle: The saddle is a component that moves along the crossbeam or bridge of the gantry, typically in the X-axis direction. It carries the vertical component of the milling head and allows for horizontal movement.
Milling Head: The milling head is responsible for holding and rotating the cutting tool (end mill). It can move vertically along the Z-axis to control the depth of the cut. Some machines may have a swiveling or tilting head for more complex machining tasks.
Tool Changer: Many CNC gantry type milling machines are equipped with an automatic tool changer. This device holds multiple cutting tools and can automatically swap them as needed during machining operations, reducing downtime.
Spindle: The spindle is the motorized component responsible for rotating the cutting tool at various speeds. It is housed within the milling head and can be adjusted for speed and tool changes.
Control Panel: The control panel is where operators and programmers interact with the CNC machine. It includes a computer interface for inputting machining programs, setting parameters, and monitoring the machine's status.
Linear Guides and Ball Screws: These components provide smooth and precise movement along the machine's axes. Linear guides ensure that the worktable, saddle, and milling head move accurately, while ball screws convert rotational motion into linear motion.
Coolant System: A coolant system is often used to control the temperature of the cutting tool and workpiece during machining. It helps to dissipate heat and remove chips and debris from the cutting area.
Chip Conveyor: To keep the workspace clean and efficient, some machines are equipped with a chip conveyor system that collects and removes chips and swarf from the machining area.
Axis Motors: Electric motors drive the movement of the various machine components along the X, Y, and Z axes. These motors receive commands from the CNC controller to precisely position the tool and workpiece.
CNC Controller: The CNC controller is the brain of the machine. It interprets the machining program and sends commands to the axis motors and other components to execute the desired toolpaths and operations.
Safety Features: CNC gantry type milling machines are often equipped with safety features such as emergency stop buttons, interlocks, and protective enclosures to ensure the safety of operators.
