Rotary Kiln Drum supplier

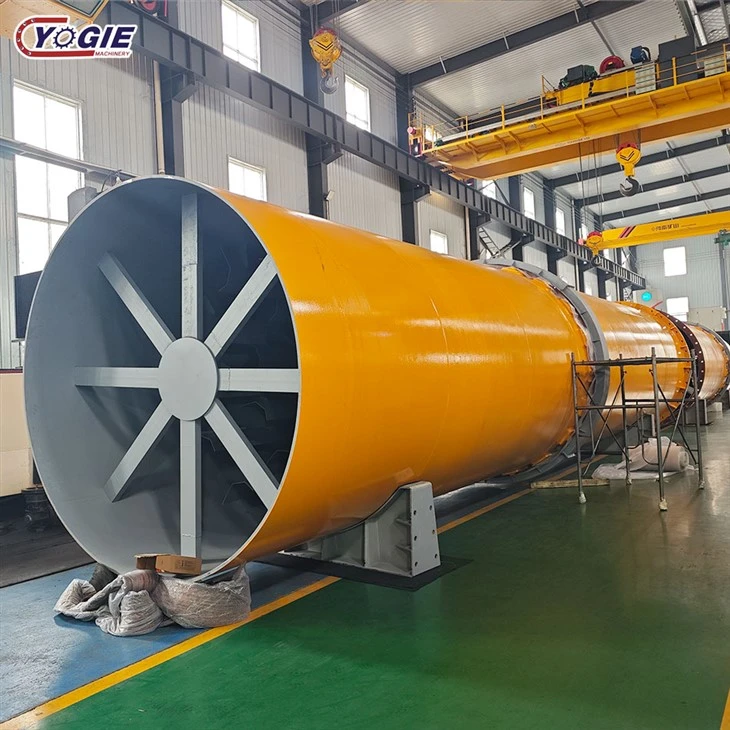

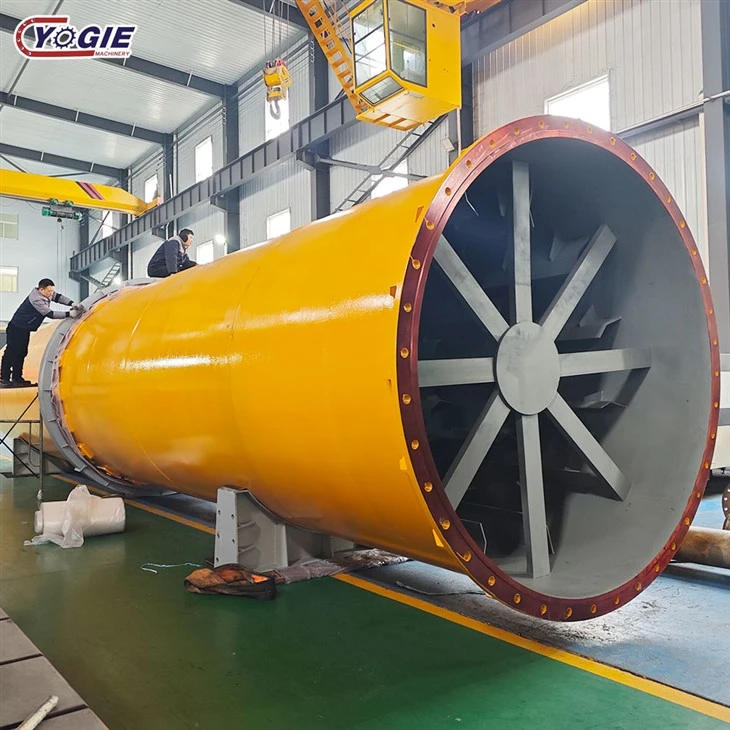

Rotary Kiln Drum
A rotary kiln drum is a cylindrical vessel used in various industrial processes, primarily for the thermal treatment of materials like cement, lime, and minerals. It rotates on its axis, allowing for the continuous mixing and processing of the material inside, which is subjected to high temperatures to facilitate chemical reactions, drying, or sintering.
Images
| Product specification (m) | Diameter (m) | Length (m) | Obliquity (%) | Capacity (t/d) | Rotatioin speed (r/min) | Motor power(kW) |
| Φ2.5 × 40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 |
| Φ2.5 × 50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 |
| Φ2.5 × 54 | 2.5 | 54 | 3.5 | 280 | 0.48-1.45 | 55 |
| Φ2.7 × 42 | 2.7 | 42 | 3.5 | 320 | 0.1-1.52 | 55 |
| Φ2.8 × 44 | 2.8 | 44 | 3.5 | 450 | 0.437-2.18 | 55 |
| Φ3.0 × 45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 |
| Φ3.0 × 48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 |
| Φ3.0 × 60 | 3 | 60 | 3.5 | 800 | 0.3-2 | 100 |
| Φ3.2 × 50 | 3.5 | 50 | 4 | 1000 | 0.6-3 | 125 |
| Φ3.3 × 52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 |
| Φ3.5 × 54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 |
| Φ3.6 × 70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 |
| Φ4.0 × 56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 |
| Φ4.0 × 60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 |
| Φ4.2 × 60 | 4.2 | 60 | 4 | 2750 | 0.41-4.07 | 375 |
| Φ4.3 × 60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 |
| Φ4.5 × 66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 |
| Φ4.7 × 74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 |
| Φ4.8 × 74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 |
| Φ5.0 × 74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 |
| Φ5.6 × 87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 |
| Φ6.0 × 95 | 6 | 95 | 4 | 10000 | Max5 | 950x2 |

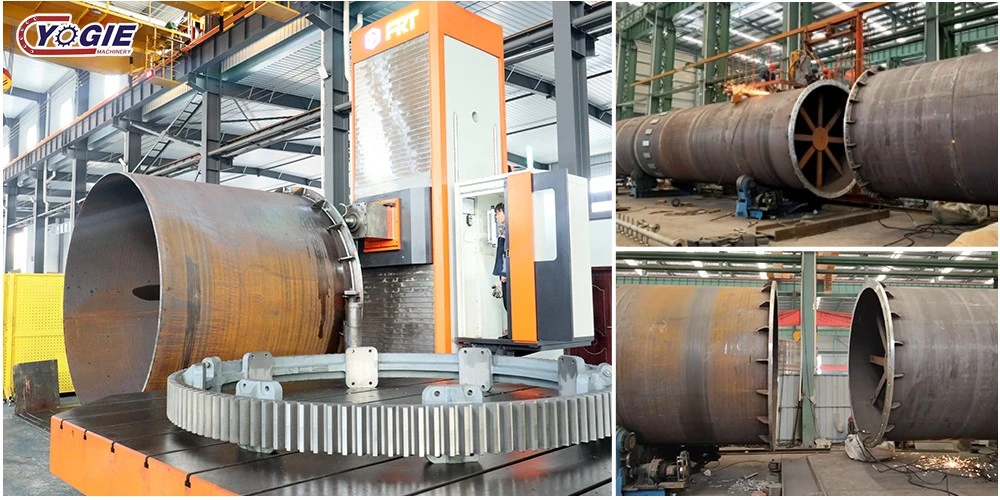

cnc machining service

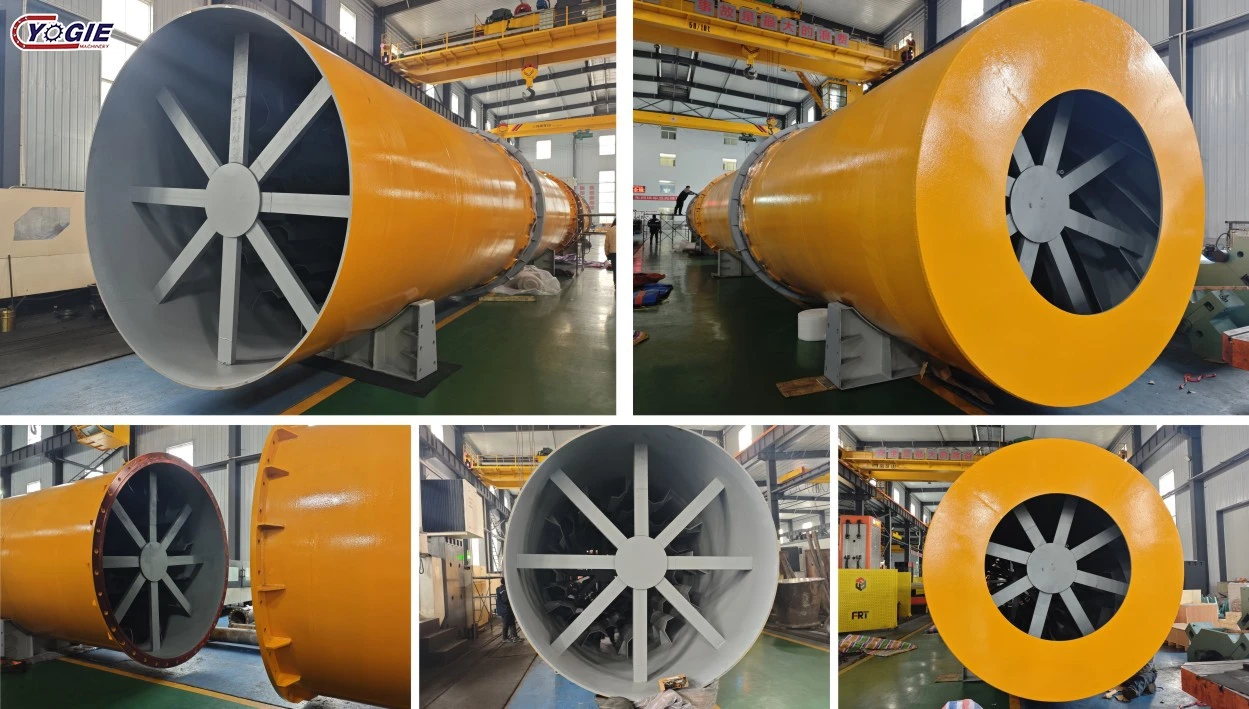

The rotary kiln drum is first fed into the roll body, then the longitudinal seam is welded and inspected for defects; the circumferential seam is welded in sections, and the coaxiality of the drum body is corrected; the rolling ring and support roller assembly positions are machined, and the mating surfaces of the rolling ring are machined; the lifting plates and flanges are welded onto the drum body; the whole body is heat-treated to eliminate welding stress; the roundness and straightness are corrected, the welds are ground, and anti-corrosion treatment is performed.
testing
Non-destructive testing (NDT) is performed on the cylinder welds;
The roundness, straightness, and coaxiality of the cylinder are checked;
the dimensions and geometric tolerances of the rolling ring mating surfaces are inspected;
Radial runout of the cylinder is measured;
The weld appearance is inspected; Overall dimensions are verified, and all test data are recorded.
delivery and pack
FAQ
1. What are your main products? Do you support customized production?
We specialize in the production and supply of various specifications of rotary kiln drums, rotary kiln cylinders and supporting parts, which are widely applied in cement building materials, metallurgy, chemical industry, waste incineration and other industrial equipment. All rotary kiln drums are customized strictly according to customer drawings with no fixed standard sizes. Products can fully match customers' equipment installation dimensions, working condition loads and material grade requirements.
2. What documents are required for quotation? What is the quotation process?
Quotation is mainly based on detailed construction drawings provided by customers. The drawings shall include key parameters such as cylinder dimensions, wall thickness, material grade, machining precision, groove requirements, processing procedures and working conditions. After receiving your drawings, our technical team will review the drawings and confirm the production process and materials. A formal and accurate quotation will be issued within 1 to 2 working days with no hidden charges.
3. Do you provide inspection reports for finished products? What inspection items are included?
All rotary kiln drums are delivered with complete official inspection reports in strict accordance with industrial production and testing standards. The inspection items include raw material spectral analysis, wall thickness testing, non-destructive testing (UT/MT), dimensional accuracy inspection, flatness and roundness calibration, mechanical property testing and more. All test data are complete and authentic. The reports are delivered together with goods and support third-party re-inspection.
4. Do you support material processing and drawing optimization?
Yes, we provide such services. If your original drawings have unreasonable craftsmanship, poor working condition adaptability or excessive production difficulty, we offer free drawing optimization and process improvement suggestions. We optimize production processes and reduce costs without changing equipment performance requirements. We also support customer-supplied material processing and semi-finished product finishing services.
