Floor Type Boring Milling Machine

Luoyang Yujie Industry&Trade Co., Ltd is one of the most experienced manufacturers and suppliers of floor type boring milling machine in China. Please feel free to buy cheap floor type boring milling machine for sale here from our factory. All customized products are with high quality and competitive price.

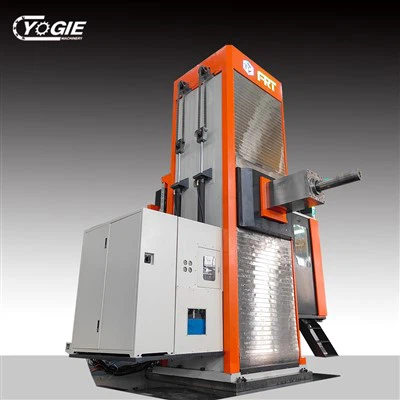

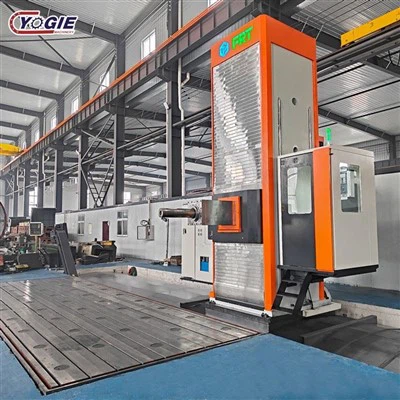

Floor-type boring milling machine use boring and milling as the main processing methods. The spindle box of the machine tool can move up and down along the column guide rail, the worktable can move longitudinally and horizontally, and can also rotate around the vertical axis. It can complete the processing of multiple faces in one clamping of the workpiece. Because the worktable is fixed on the ground foundation, it has a large load-bearing capacity and can process super-large workpieces, hence the name.







Technical specification		FRT-T130	FRT-T160	FRT-T200
Travel
Work table travel(X/Y/Z/W)	mm	X (4000-6000)	X (6000-8000)	X (8000-10000)
	mm	Y (2000-3000)	Y (2000-3000)	Y (2000-3000)
	mm	Z (800)	Z (1000)	Z (1200)
	mm	W (700)	W (1000)	W (1200)
Distance from spindle surface to worktable	mm	0-3000	0-3000	0-4000
Guide rail	Two linear guide rail, one hardened rail
Work table
Table size	mm	Customization	Customization	Customization
The maximum load capacity of the work table	T	15/㎡	15/㎡	15/㎡
Spindle
The spindle taper(model sleeve diameter)		BT50	BT50	BT50
The spindle motor power	kw	26	35	45
Spindle speed	rpm	2000	2000	2000
Accuracy
Position Precision	mm	0.01/1000	0.01/1000	0.01/1000
Repeated position precision	mm	±0.01	±0.01	±0.01
Size
Net weight	T	about 55~70	about 90~130	about 125~165



Contact now







Our floortype boring milling machine castings are all processed by our factory on gantry milling machines and guideway grinders to ensure product accuracy.







Bed: It is the basic component of the machine tool, usually welded with high-quality cast iron or steel plate, with good stability and rigidity, used to support other components.



Column: fixed on the bed, the spindle box is installed on the column, and can move up and down along the column guide rail to achieve processing at different heights.



Spindle box: Contains spindle, transmission device and speed change mechanism, etc. The spindle drives the tool to rotate to achieve cutting movement, and the spindle speed can be adjusted through the speed change mechanism.



Workbench: used to clamp the workpiece, can move longitudinally and transversely along the bed rail, and some workbenches can also rotate around the vertical axis to achieve multi-faceted processing.



Boring and milling head: installed at the front end of the spindle, different tools can be replaced according to processing requirements to achieve boring, milling and other processing functions.



Transmission components: large-diameter ball screw and heavy-duty linear guides are used.



Boring Processing Principle: Boring is one of the main processing methods of floor-standing boring and milling machines, which is used to process holes of various sizes and precision requirements. During boring, the boring cutter is installed on the spindle and rotates with the spindle. At the same time, the worktable or spindle box moves along the coordinate axis, so that the boring cutter generates a feed motion relative to the workpiece, thereby boring out the required hole on the workpiece. By adjusting the size and feed amount of the boring cutter, holes of different diameters and depths can be processed, and the dimensional accuracy and surface quality of the holes can be guaranteed.

Milling Processing Principle: Milling is a method of processing planes, grooves, curved surfaces, etc. on workpieces by using the rotation of the milling cutter and the feed motion of the worktable or spindle box. The milling cutter is installed on the spindle, and the spindle drives the milling cutter to rotate at high speed. The worktable moves in the X, Y, and Z axis directions according to the processing requirements to achieve relative motion between the milling cutter and the workpiece, thereby removing excess material on the workpiece to form the required shape and size. By replacing milling cutters of different types and specifications, a variety of milling processes can be achieved, such as end milling, side milling, profile milling, etc.





Box parts: such as engine cylinders, gearbox housings, etc., can be processed on floor-standing boring and milling machines to complete multiple hole systems and planes, ensuring the position accuracy and flatness of each hole.



Frame parts: such as machine tool beds, large equipment frames, etc., these parts are large in size and complex in structure. Floor-standing boring and milling machines can perform milling, boring and other processing on them to meet the accuracy requirements.



Mold parts: such as large injection molds, die-casting molds, etc., can use floor-standing boring and milling machines to process the mold cavity, core and other parts to ensure the accuracy and surface quality of the mold.



Large gear parts: For gears with larger diameters, tooth profile processing and gear shaft hole boring processing can be performed on floor-standing boring and milling machines.
